Horn Fails to Sound With Alarm Tripped

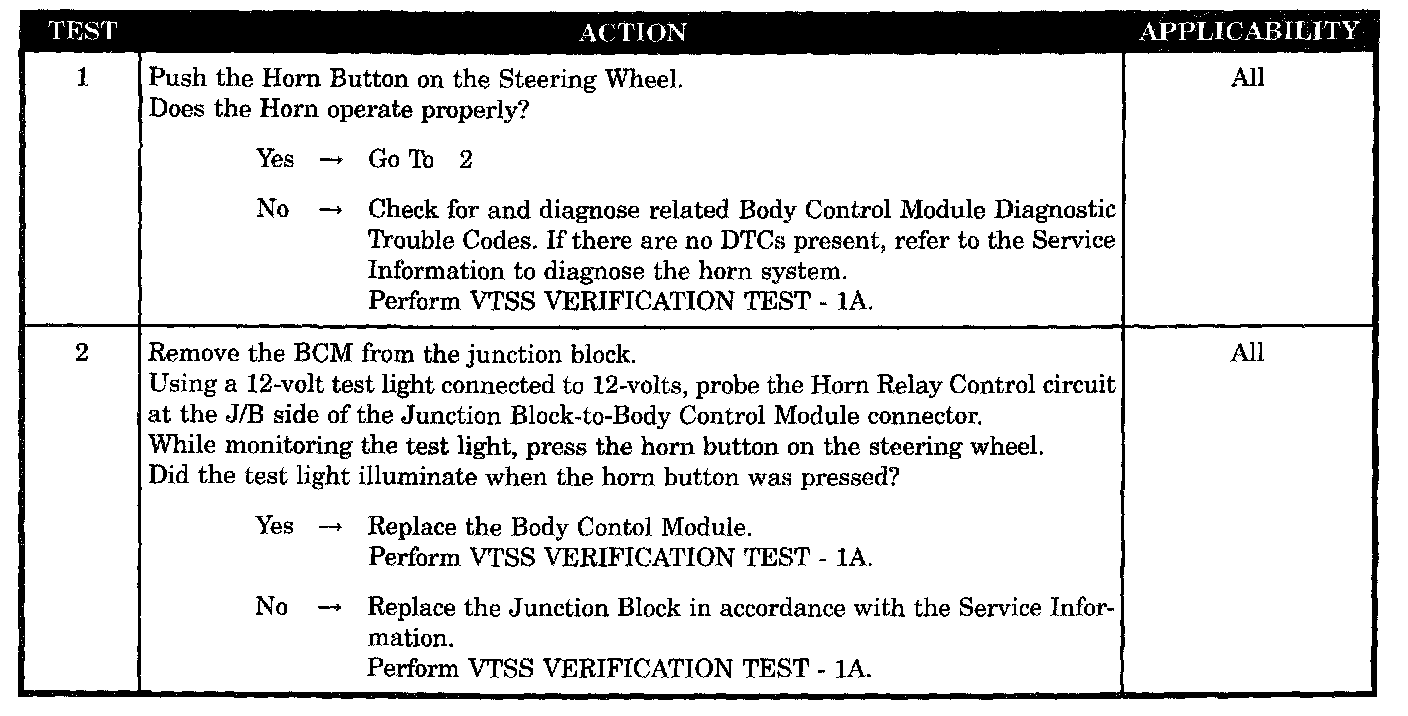

Test 1 - 2:






SYMPTOM
HORN FAILS TO SOUND WITH ALARM TRIPPED

POSSIBLE CAUSES
- Check horn operation
- Junction block - open horn relay control circuit
- Body control module-open horn relay control circuit
