Passenger Squib 2 Shorted to Battery

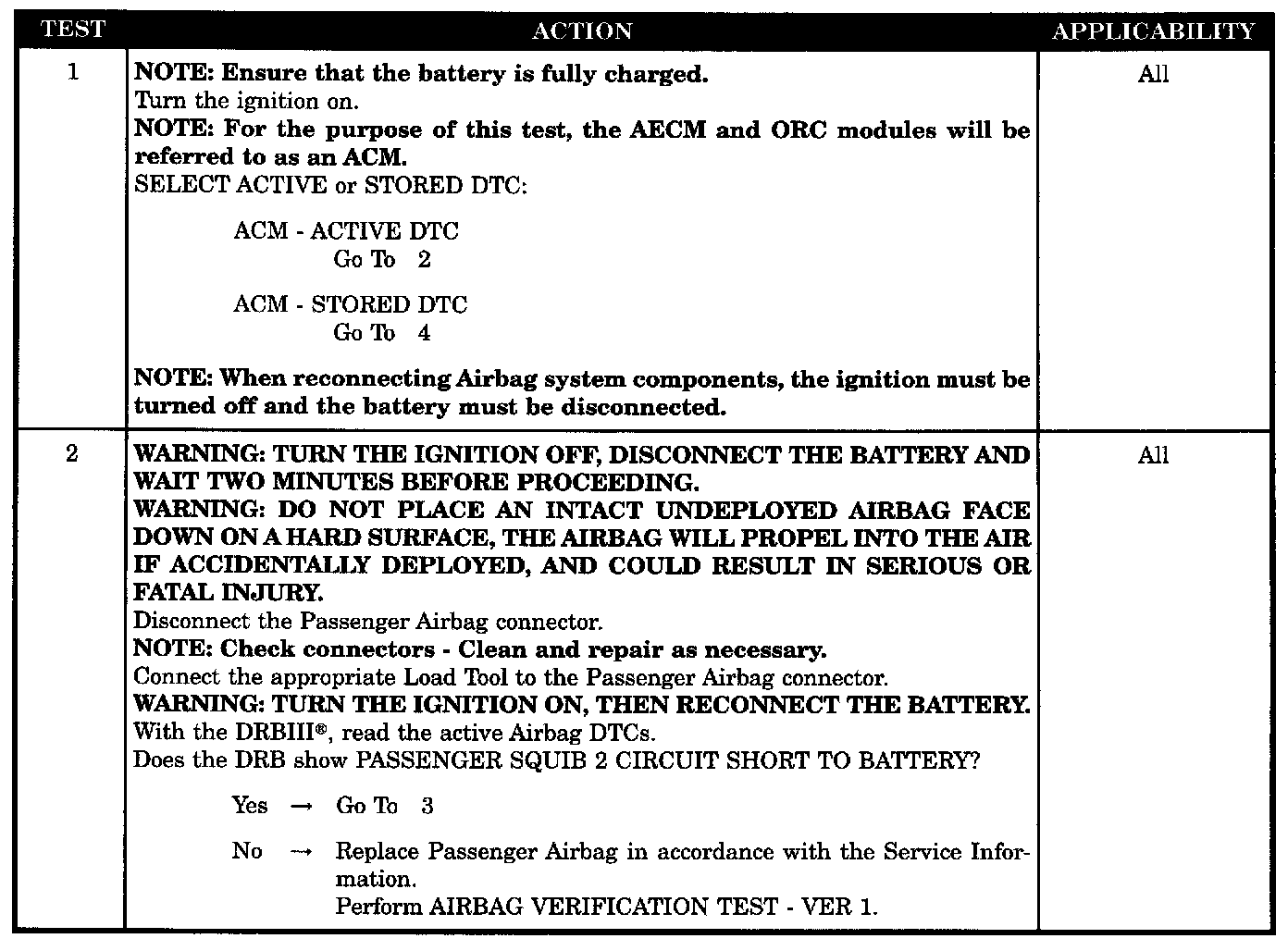

Test 1 - 2:

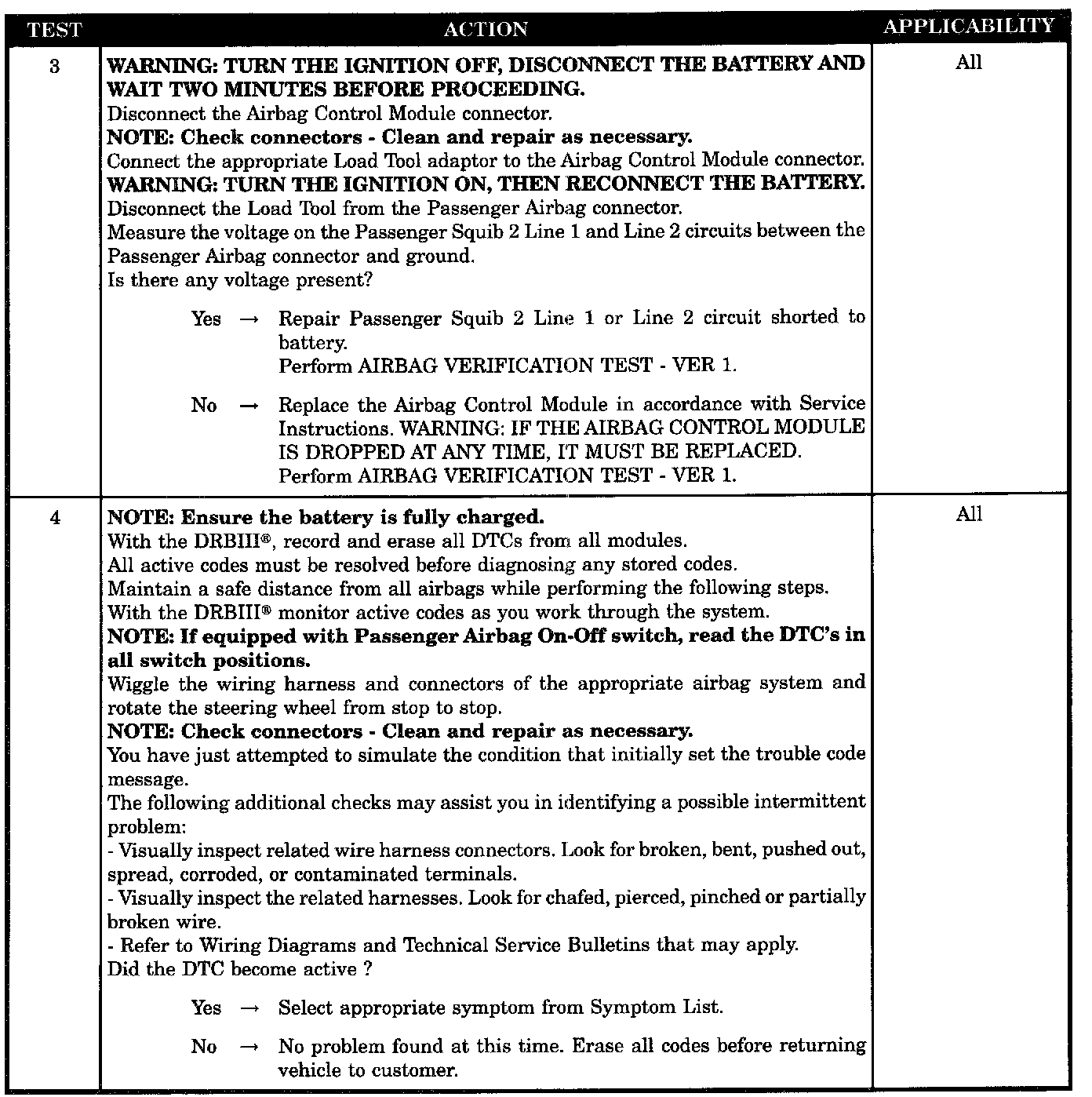

Test 3 - 4:

SYMPTOM
PASSENGER SQUIB 2 SHORT TO BATTERY

WHEN MONITORED
When the ignition is on, the ACM monitors the voltage of the Passenger Squib 2 circuits.

SET CONDITION
The ACM has detected high voltage on the Passenger Squib 2 circuits.

POSSIBLE CAUSES
- Passenger airbag circuit short to battery
- Passenger squib 2 line 1 or line 2 shorted to battery
- ACM, passenger squib 2 circuit short to battery
- Stored code or intermittent condition
- Active code present
