Passenger Squib 2 Circuit Open

Test 1:

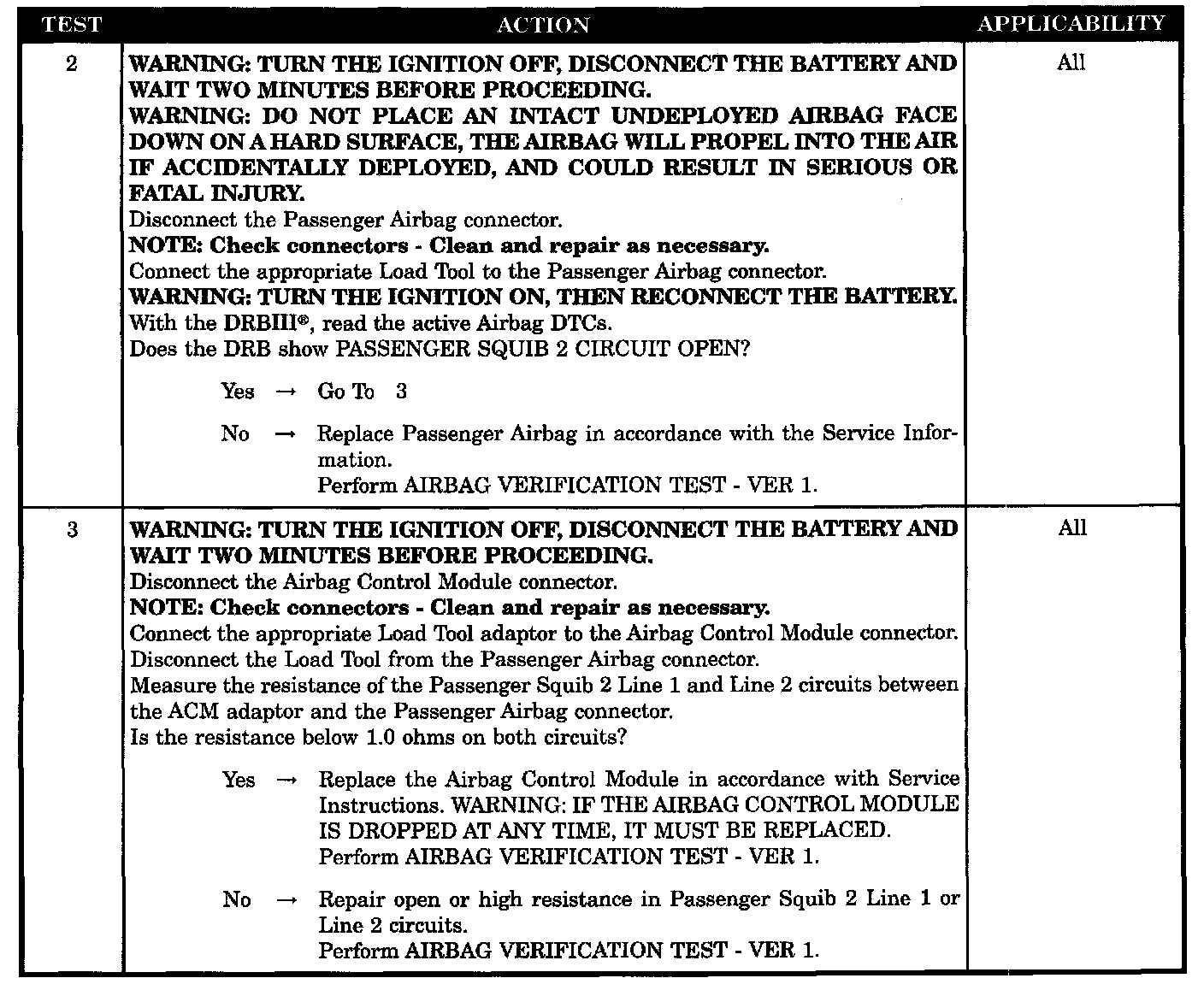

Test 2 - 3:

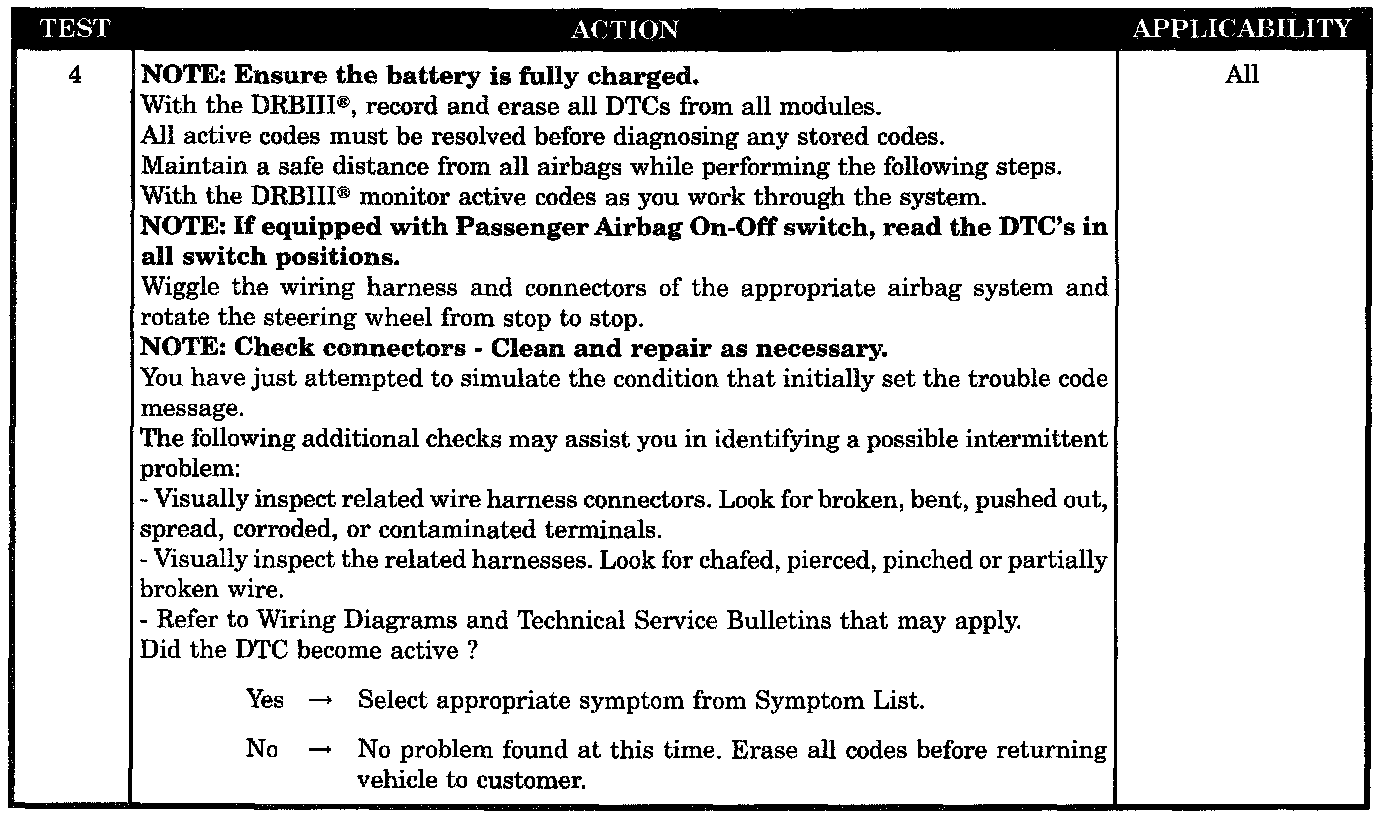

Test 4:

SYMPTOM
PASSENGER SQUIB 2 CIRCUIT OPEN


WHEN MONITORED
When the ignition is On, the ACM monitors the resistance of the Passenger Squib 2 circuits.


SET CONDITION
The ACM has detected an open circuit or high resistance on the Passenger Squib 2 circuits.

POSSIBLE CAUSES
- Passenger airbag open
- Passenger squib 2 line 1 or line 2 circuit open
- ACM, passenger squib 2 circuit open
- Stored code or intermittent condition
- Active code present
