No PCI Transmission

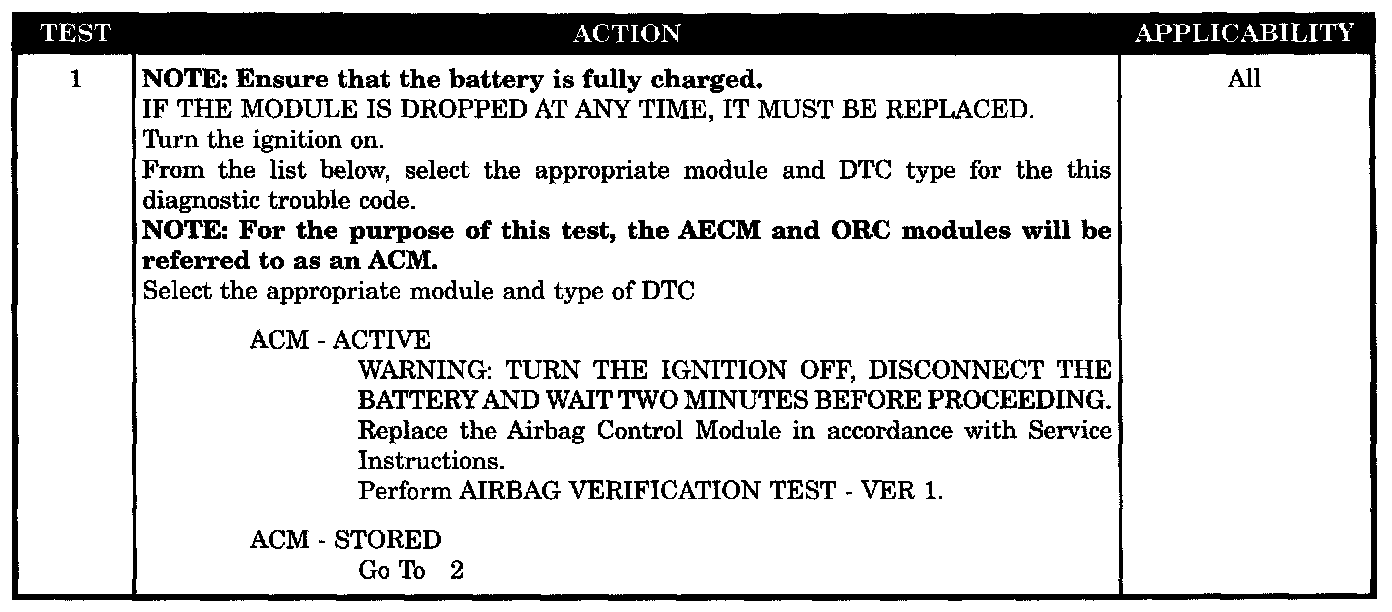

Test 1:

Test 2:

SYMPTOM
NO PCI TRANSMISSION

WHEN MONITORED
With the ignition on and the module transmitting information on the PCI BUS.

SET CONDITION
The code will set if the onboard diagnostic cannot detect the module transmitting information on the PCI BUS for 4 consecutive seconds. NOTE: Any PCI Bus Failure will may cause a stored code to set.

POSSIBLE CAUSES
- Airbag control module - ACM
- Stored code or intermittent condition
- Active code present
