Driver Side Impact Sensor Internal 1

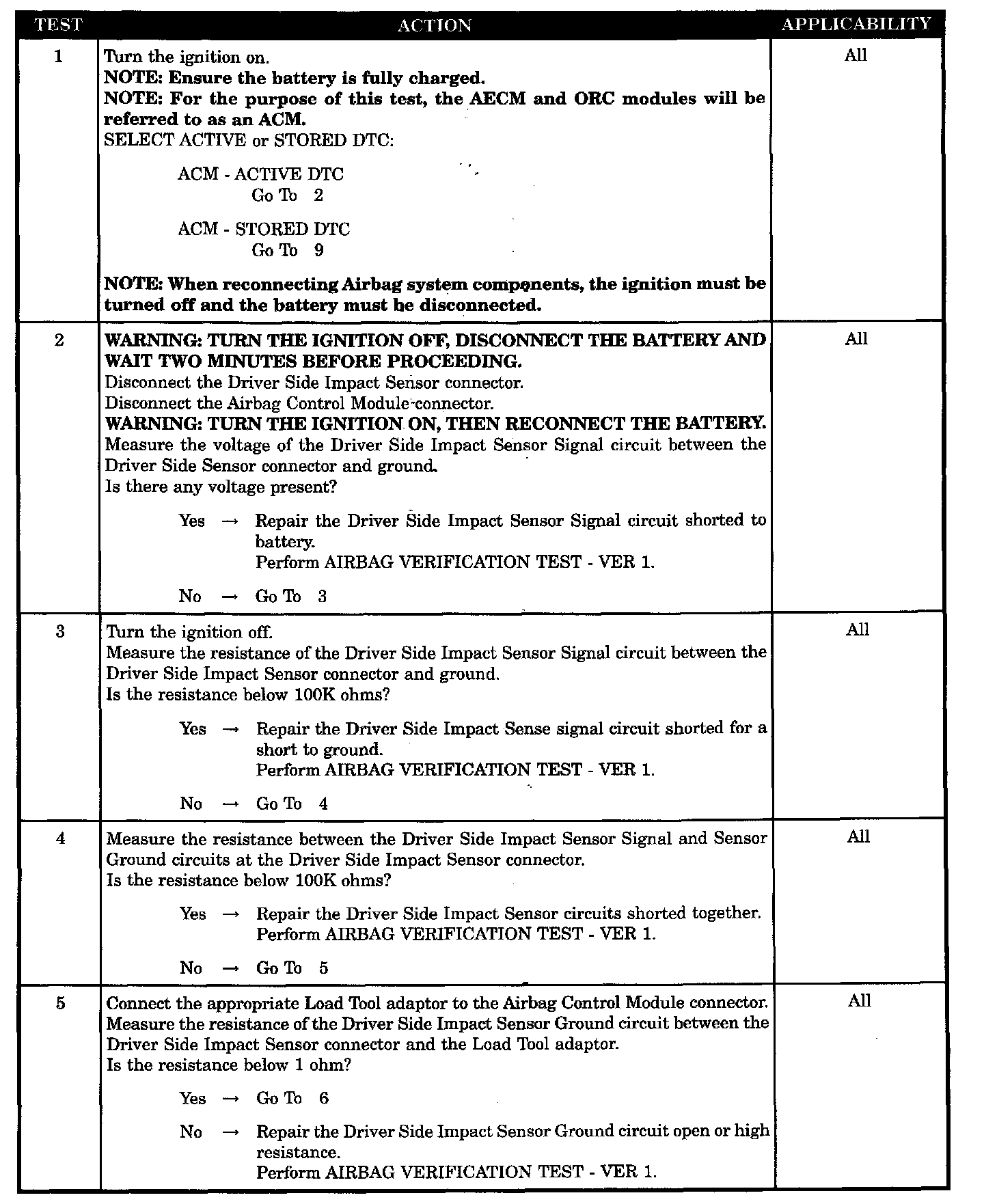

Test 1 - 5:

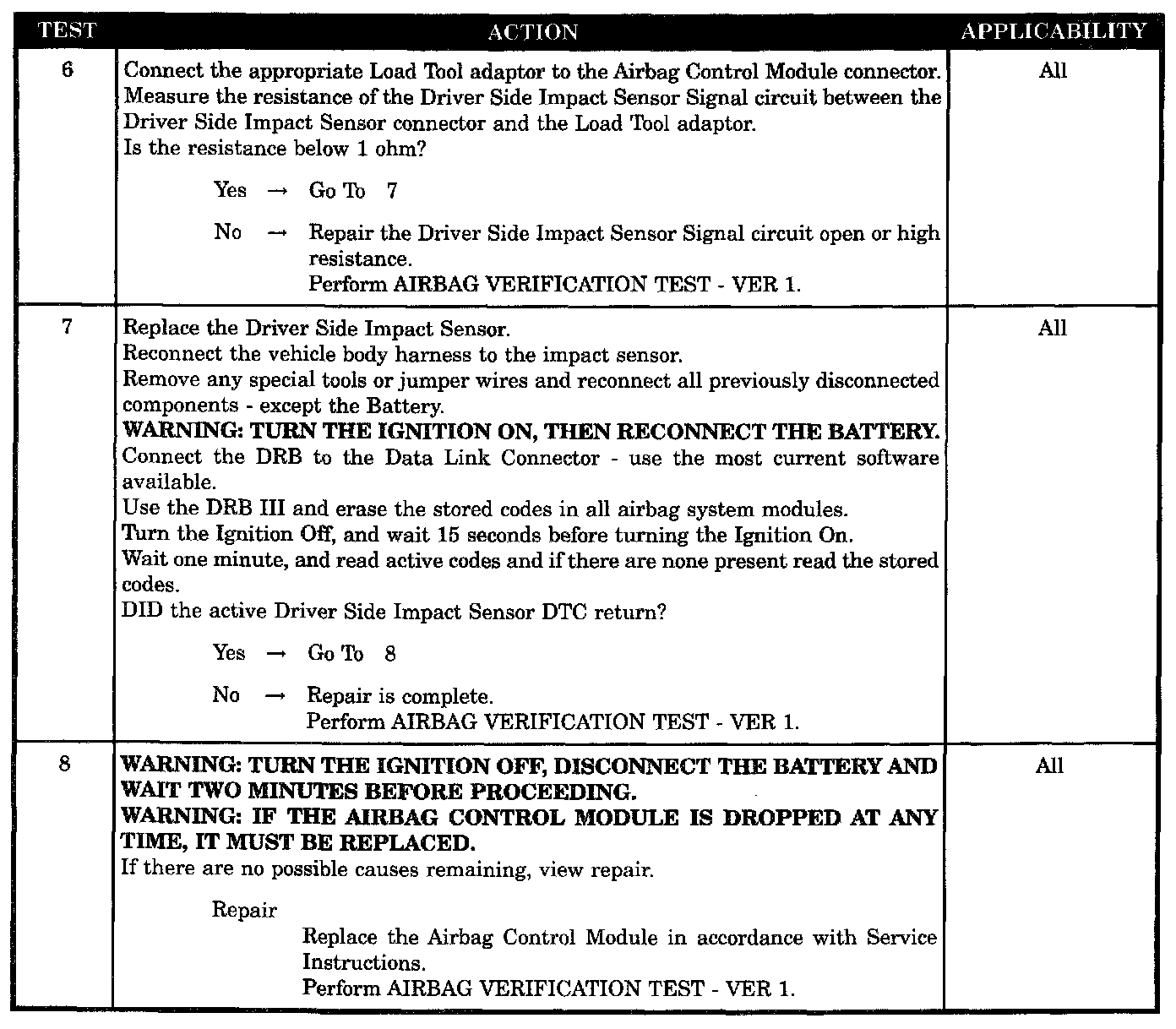

Test 6 - 8:

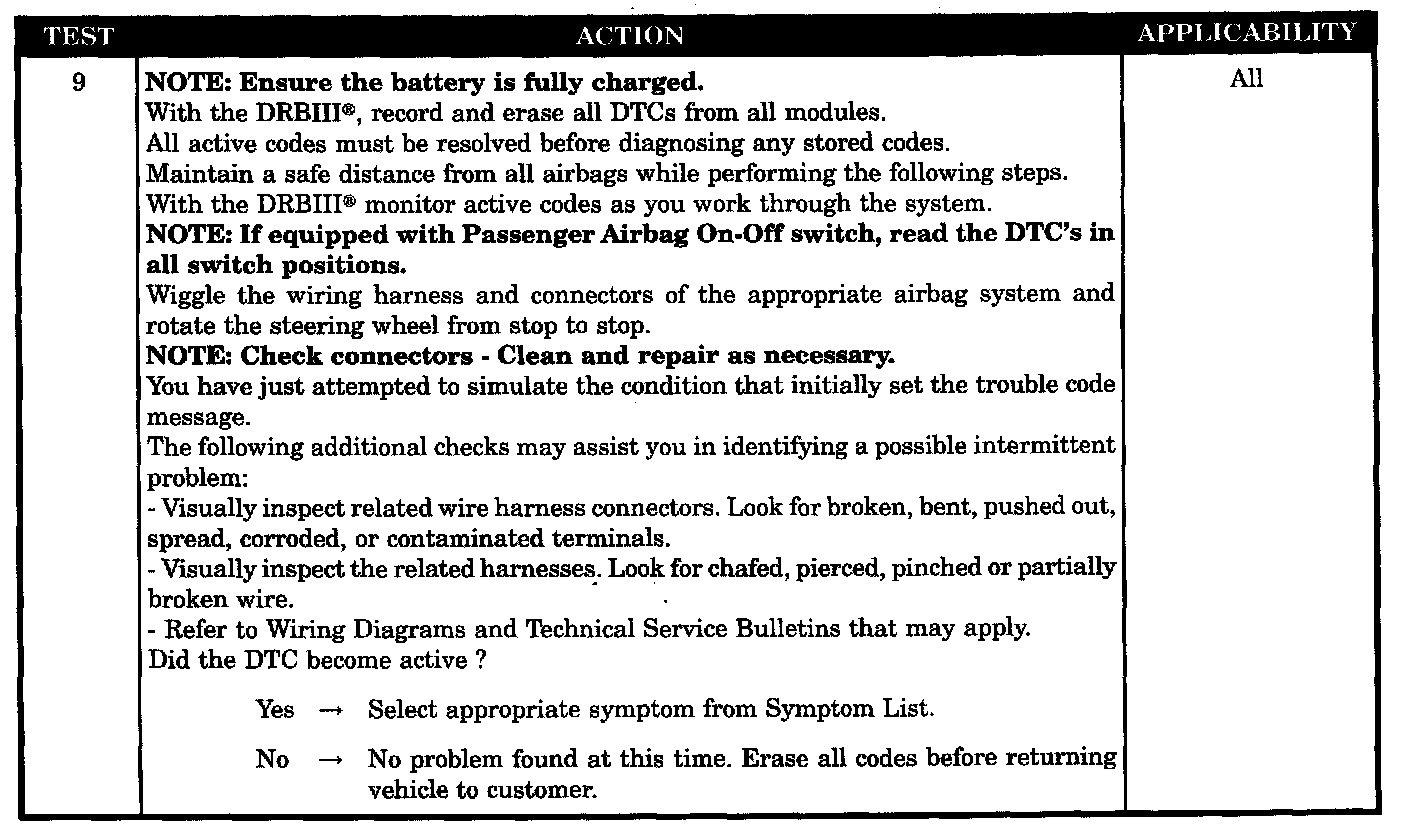

Test 9:

SYMPTOM
DRIVER SIDE IMPACT SENSOR INTERNAL 1

WHEN MONITORED
The Left Front Impact Sensors is equipped with onboard diagnostics to monitor the sensors internal circuits. If a problem is identified the sensor sends the Left Side Impact Sensor Internal 1 message to the ACM.

SET CONDITION
The code will set if the ACM receives an internal 1 message from the Driver Side Impact Sensor.

POSSIBLE CAUSES
- Signal circuit shorted to battery
- Signal circuit short to ground
- Driver side sensor circuits shorted together
- Ground circuit open
- Signal circuit open
- ACM, driver side impact sensor
- Repair is complete
- Stored code or intermittent condition
- Active code present
