Driver Seat Belt Switch Shorted to Ground

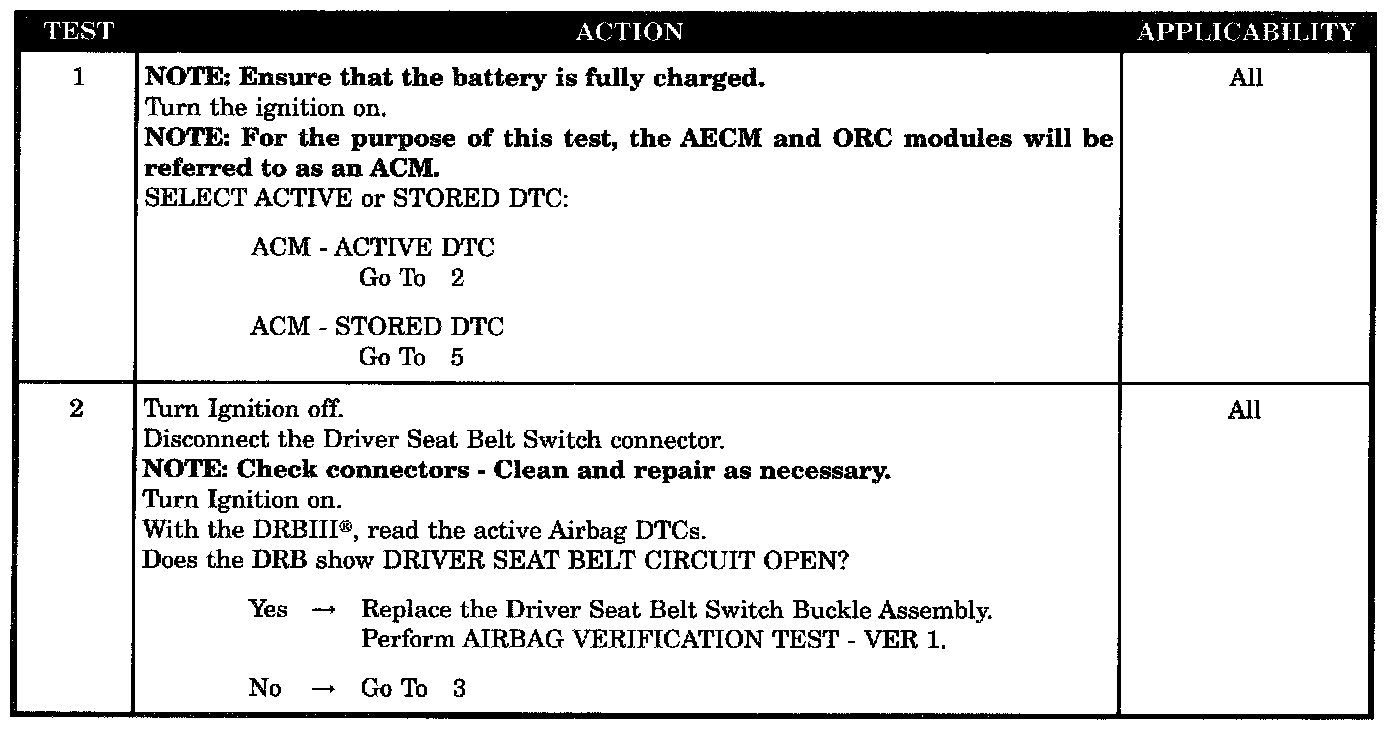

Test 1 - 2:

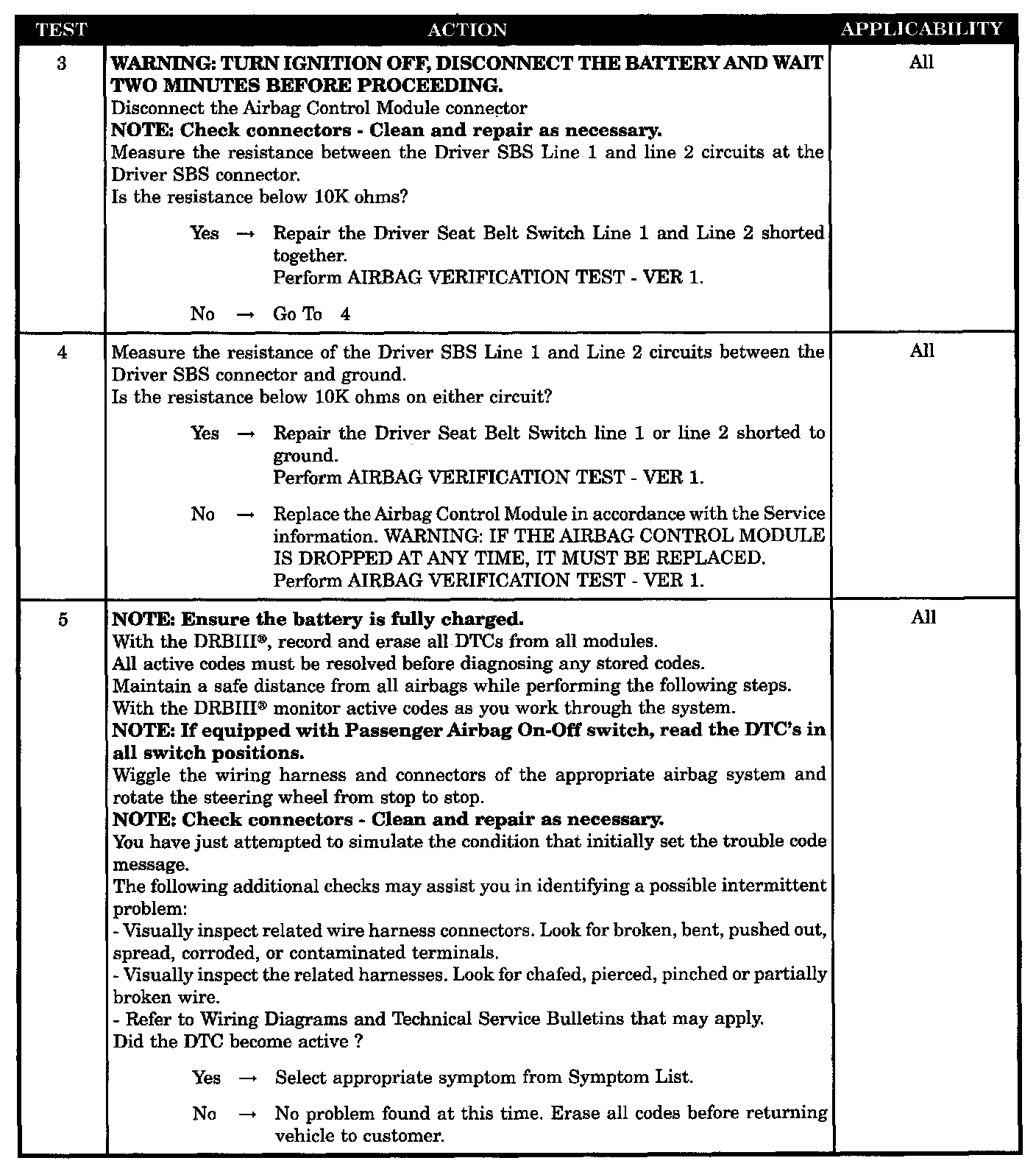

Test 3 - 5:

SYMPTOM
DRIVER SEAT BELT SWITCH SHORT TO GROUND

WHEN MONITORED
With the ignition on the ACM monitors the Seat Belt Buckle Switch circuit for a shorted together or shorted to ground condition.

SET CONDITION
The code will set if the ACM detects low circuit voltage.

POSSIBLE CAUSES
- Driver seat belt switch short together or to ground
- Driver seat belt switch circuits short together
- Driver seat belt switch circuits short to ground
- ACM, driver seat belt switch short to ground
- Stored code or intermittent condition
- Active code present
