Driver Seat Belt Switch Shorted to Battery

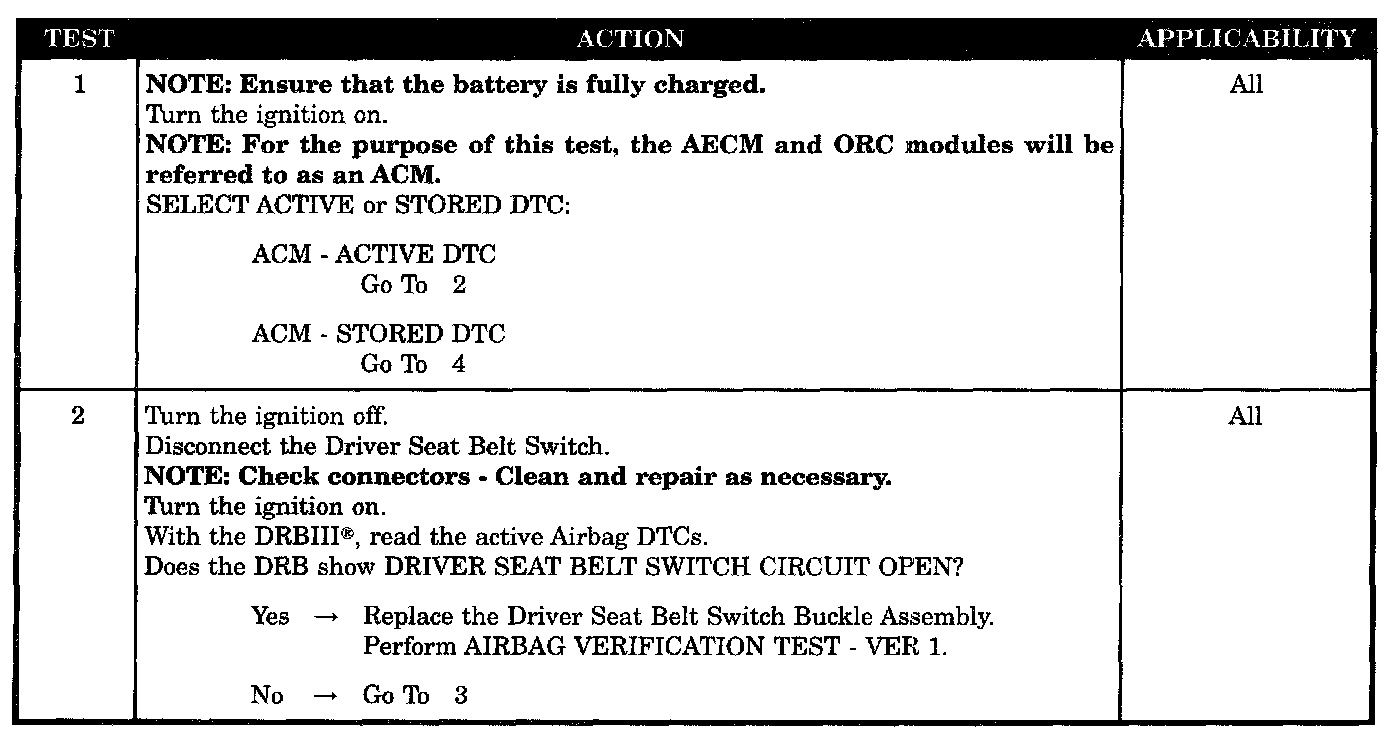

Test 1 - 2:

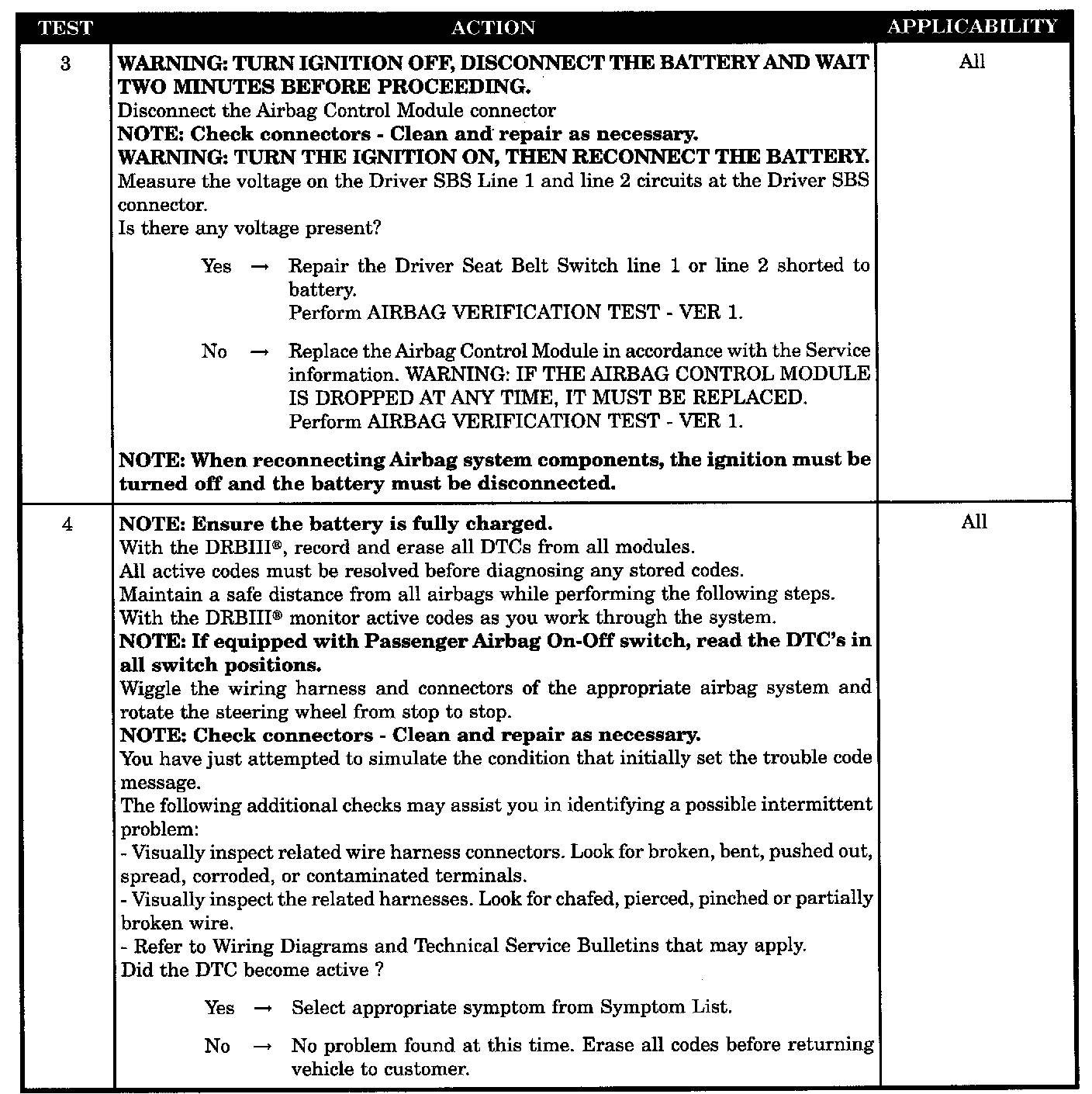

Test 3 - 4:

SYMPTOM
DRIVER SEAT BELT SWITCH SHORT TO BATTERY

WHEN MONITORED
With the ignition on the ACM monitors the Seat Belt Buckle Switch circuit for an short to battery.

SET CONDITION
The code will set if the ACM detects high circuit voltage.

POSSIBLE CAUSES
- Driver seat belt switch short to battery
- Driver seat belt switch circuits short to battery
- ACM, driver seat belt switch short to battery
- Stored code or intermittent condition
- Active code present
