Driver Seat Belt Switch Circuit Open

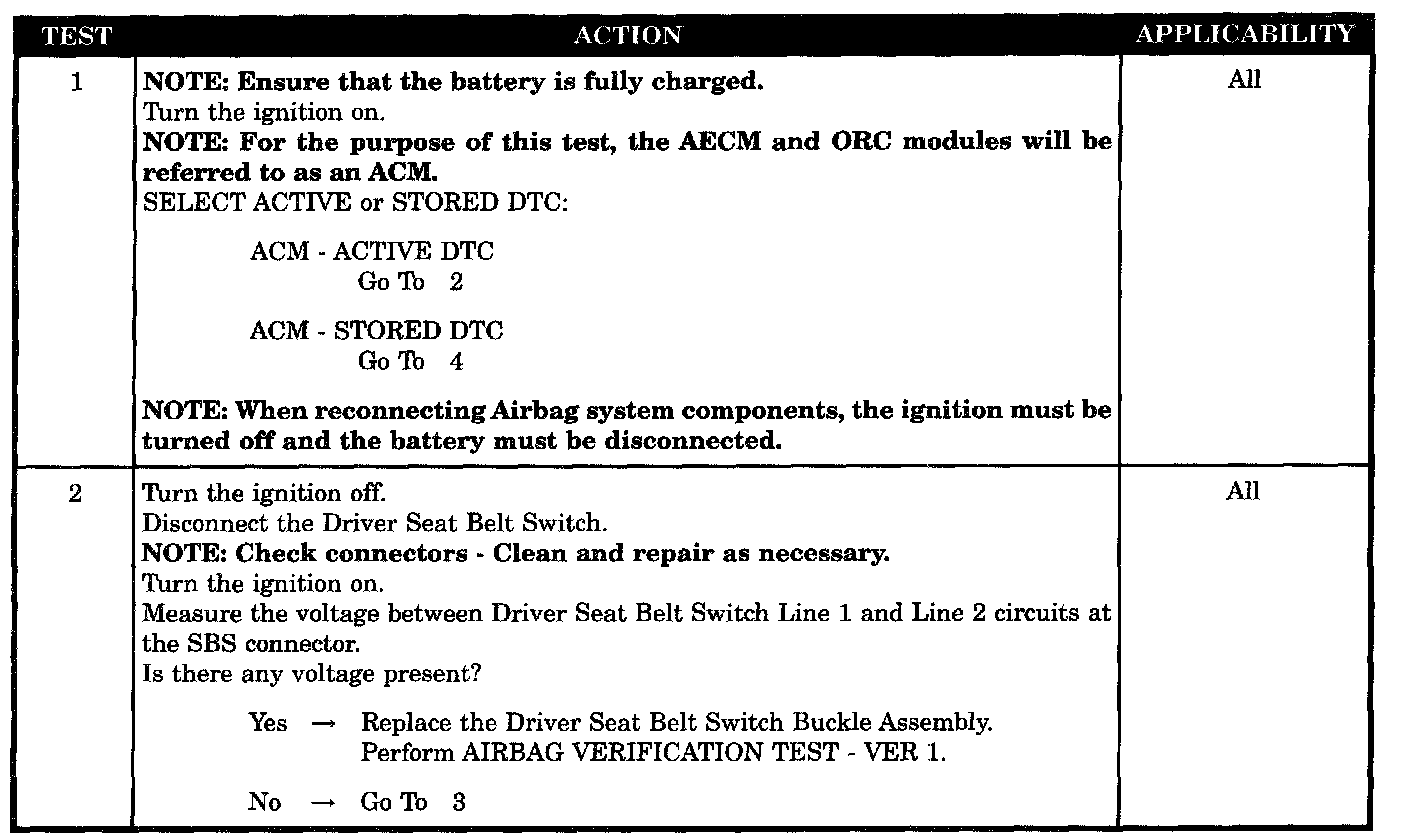

Test 1 - 2:

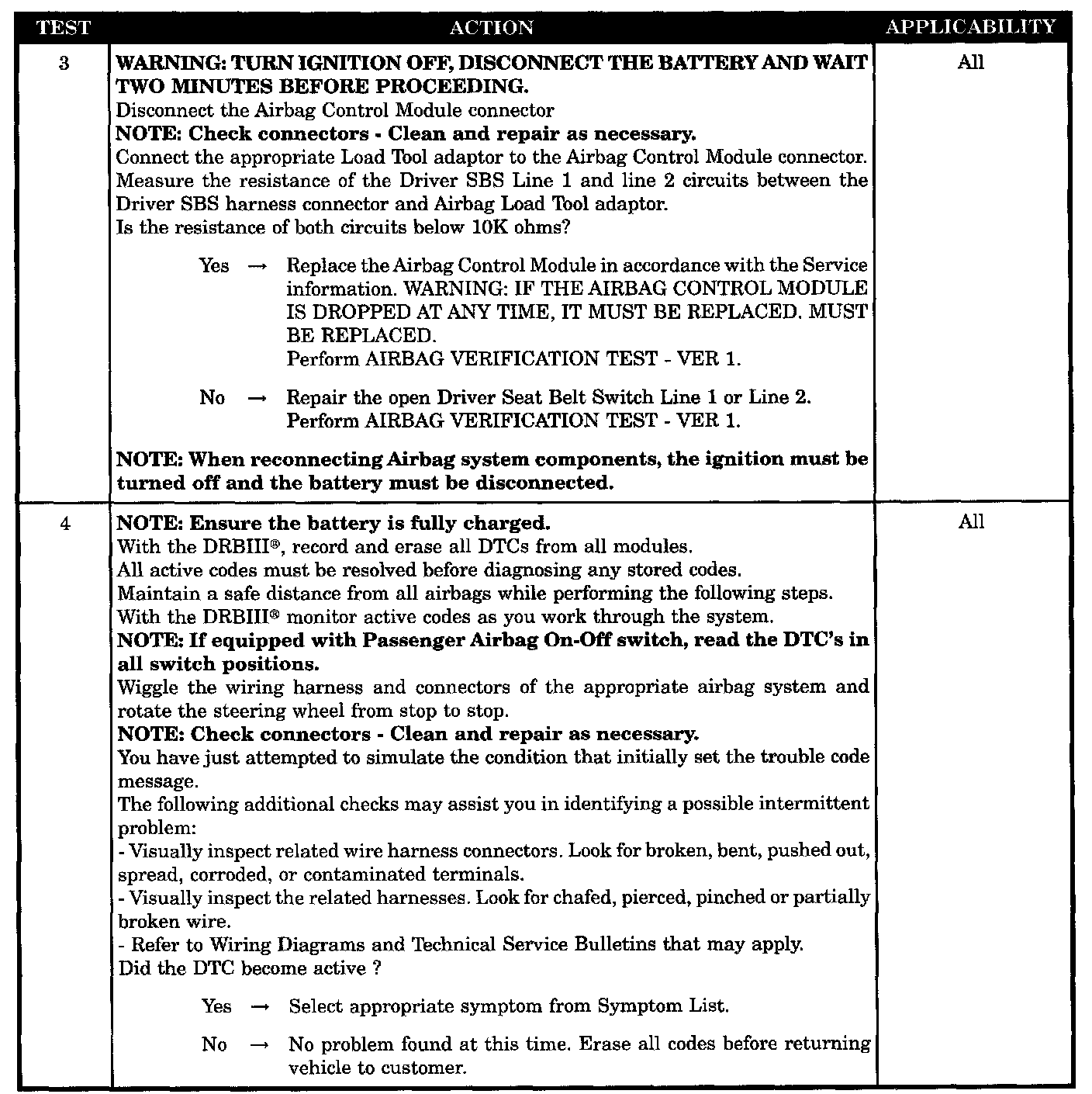

Test 3 - 4:

SYMPTOM
DRIVER SEAT BELT SWITCH CIRCUIT OPEN

WHEN MONITORED
With the ignition on the ACM monitors the Seat Belt Switch circuit for an open condition.

SET CONDITION
The code will set if the ACM does not detect the correct circuit voltage.

POSSIBLE CAUSES
- Driver seat belt switch open
- Driver seat belt switch circuits open
- ACM, driver seat belt switch circuit open
- Stored code or intermittent condition
- Active code present
