Driver Curtain Squib Shorted to Ground

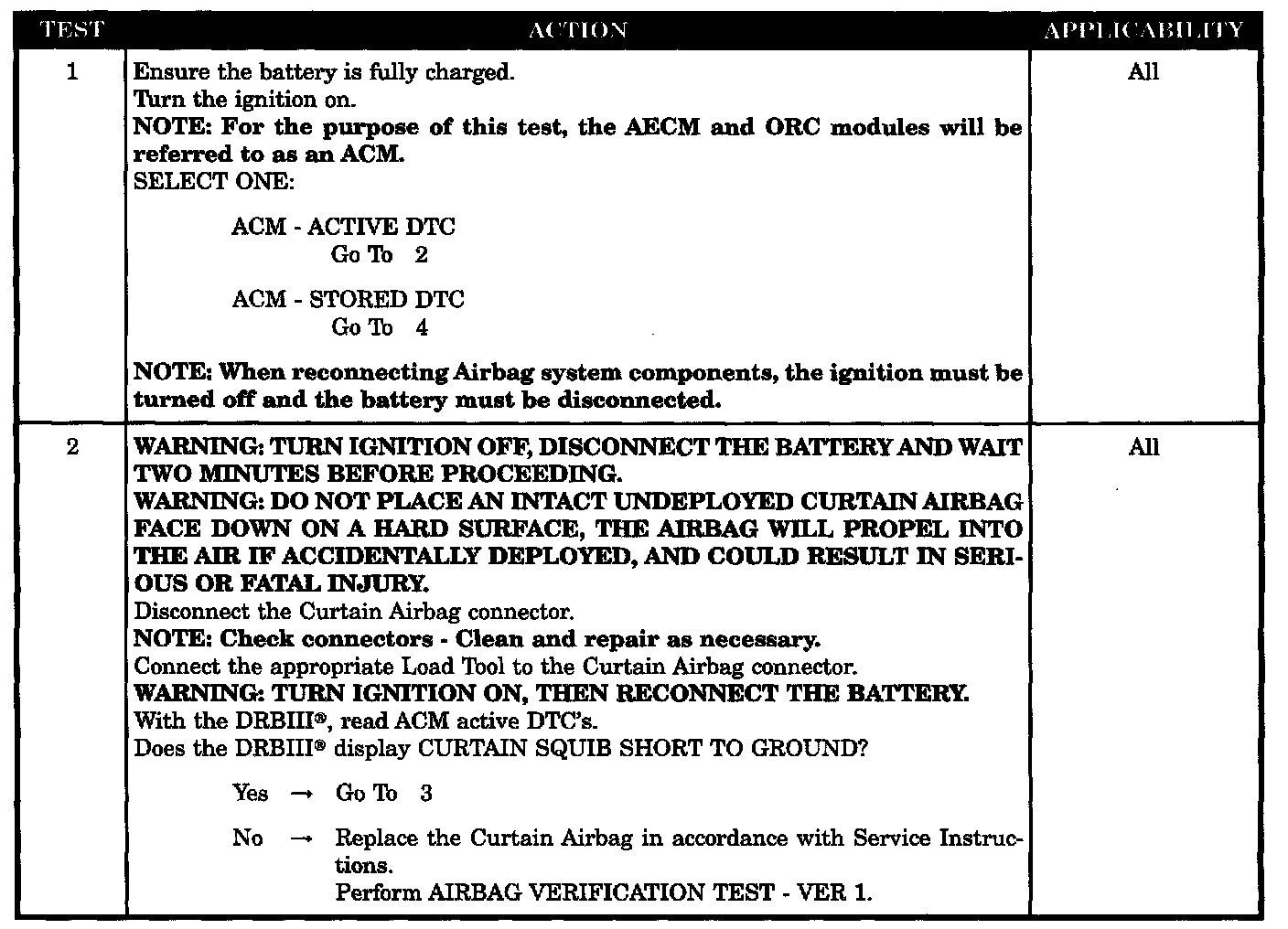

Test 1 - 2:

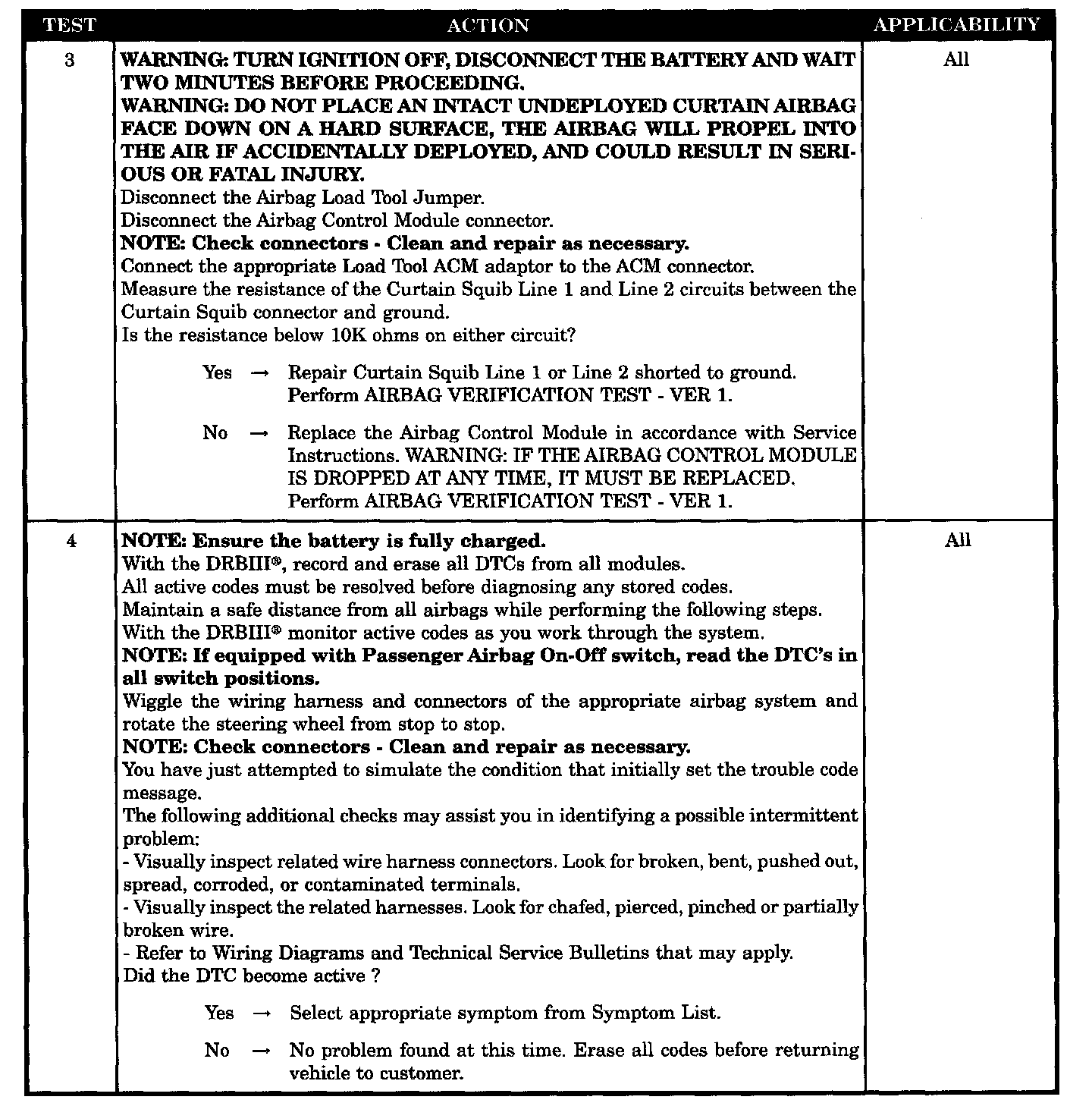

Test 3 - 4:

SYMPTOM
DRIVER CURTAIN SQUIB SHORT TO GROUND

WHEN MONITORED
When the ignition is on, the ACM monitors the resistance of the Curtain Squib circuits.

SET CONDITION
When the ACM detect a short to ground on the Curtain Squib circuits.

POSSIBLE CAUSES
- Curtain airbag short to ground
- Curtain squib line 1 or line 2 shorted to ground
- ACM, curtain squib short to ground
- Stored code or intermittent condition
- Active code present
