Remote Keyless Entry Inoperative

Test 1 - 4:

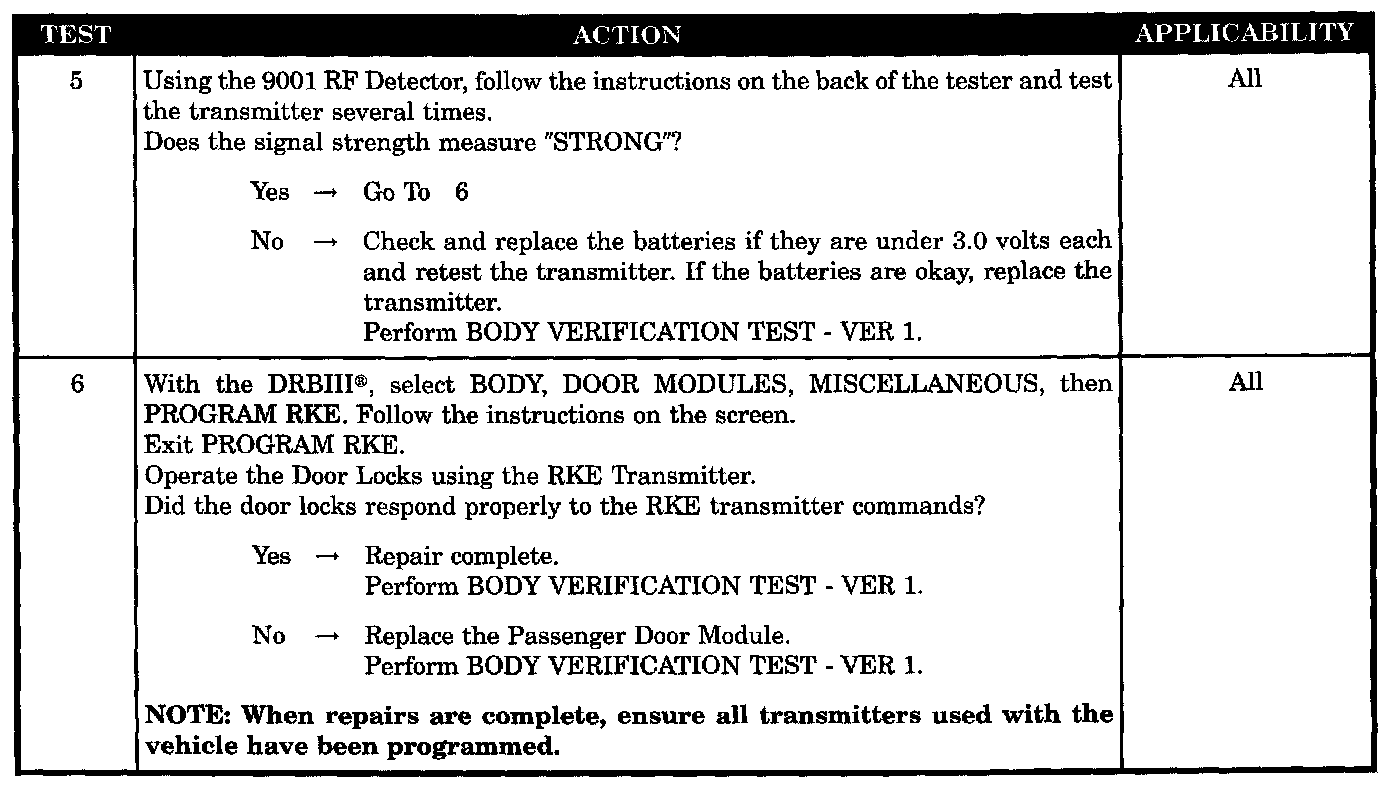

Test 5 - 6:

SYMPTOM
REMOTE KEYLESS ENTRY INOPERATIVE

POSSIBLE CAUSES
- Test transmitter with tester
- RKE transmitter battery voltage low
- RKE transmitter not programmed
- RKE transmitter not programmed
- RKE transmitter defective
- Passenger door module defective RKE INOP
- Passenger door module
