Remote Keyless Entry Inoperative - Japan Only

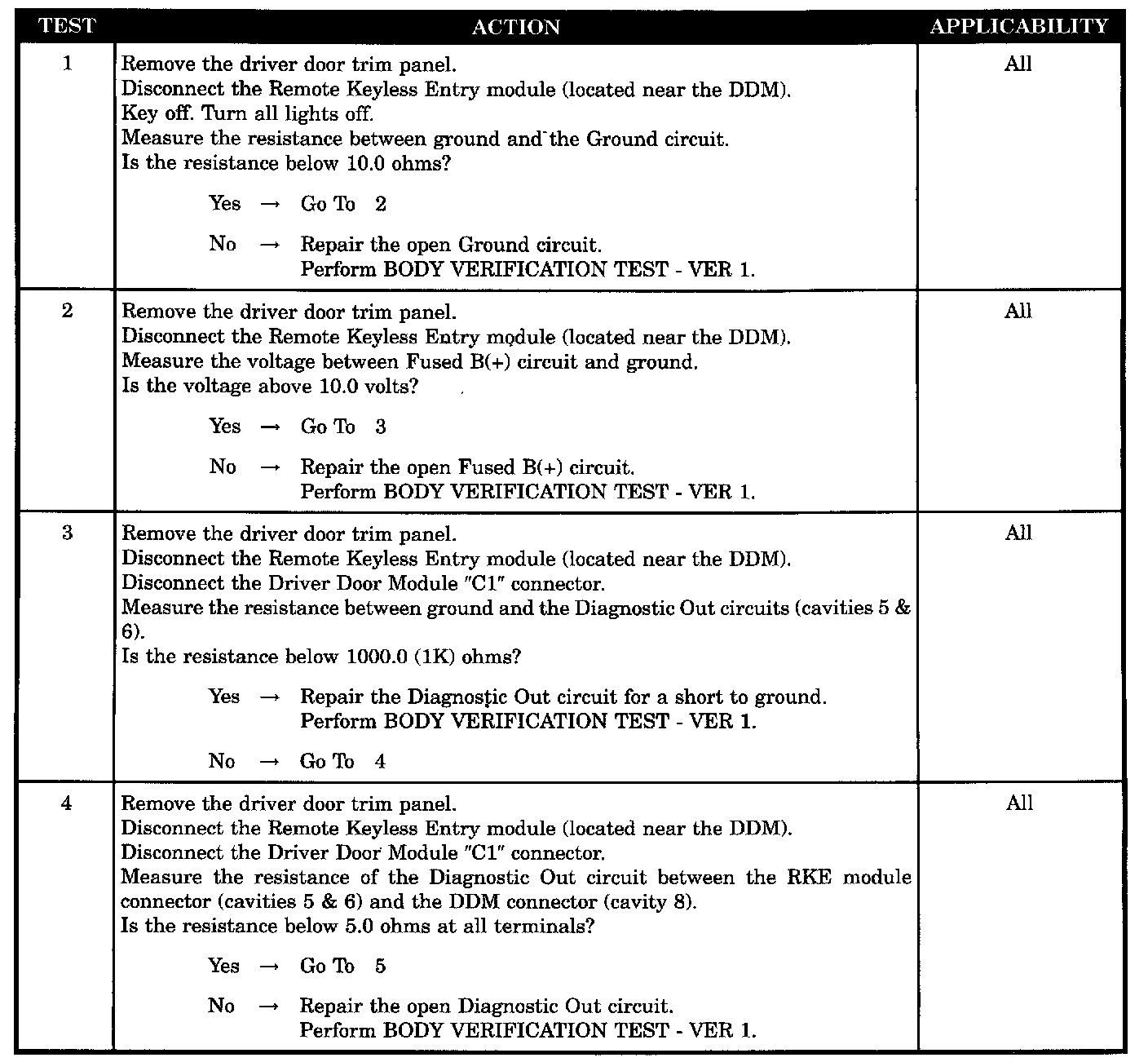

Test 1 - 4:

Test 5 - 6:

SYMPTOM
RKE INOPERATIVE - JAPAN ONLY

POSSIBLE CAUSES
- Ground circuit open
- Fused B(+) circuit open
- Diagnostic out circuit short to ground
- Diagnostic out circuit open
- Driver door module - RKE inoperative
- Remote keyless entry module - open
