Liftgate Flip-Up Ajar Circuit Open

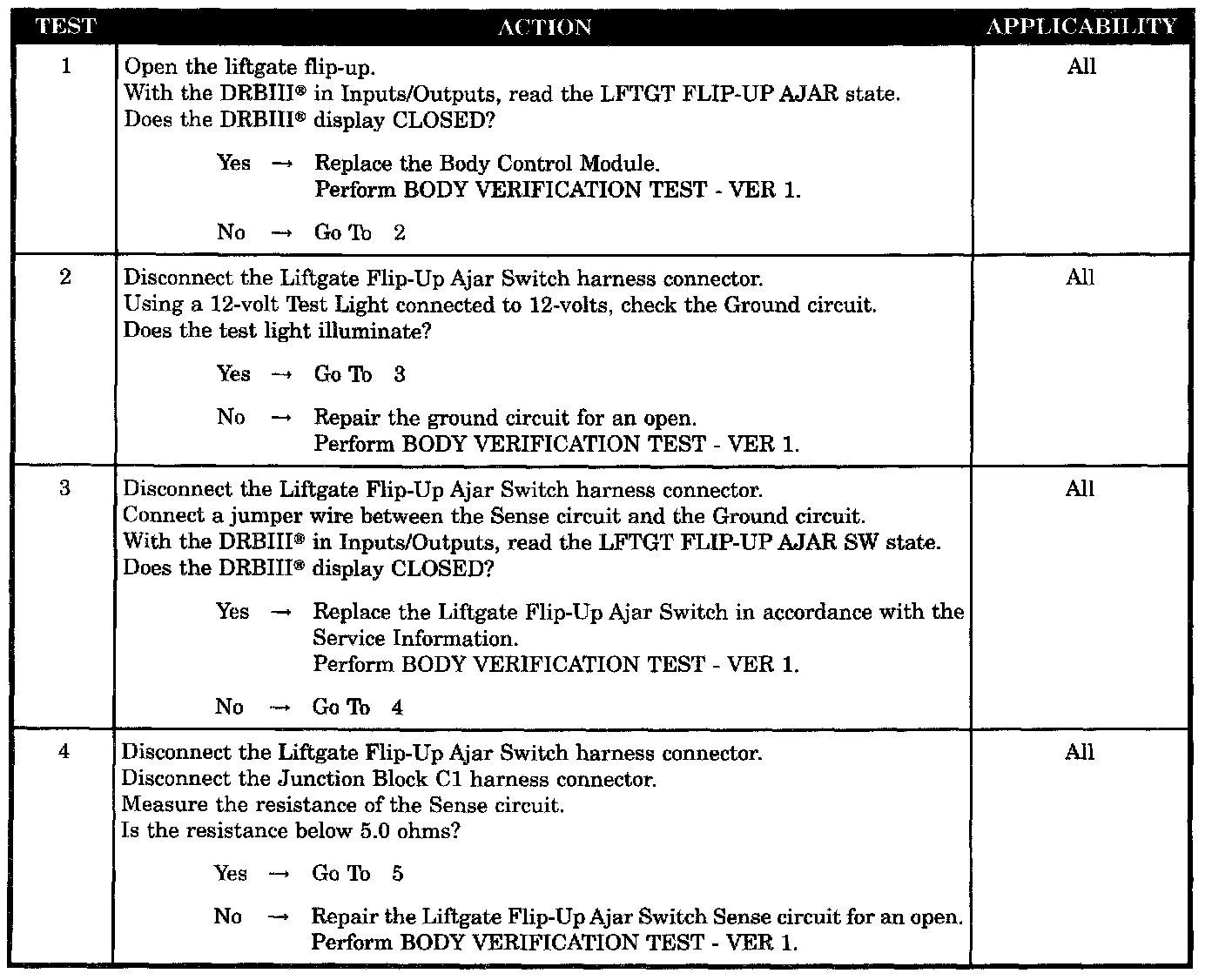

Test 1 - 4:

Test 5:

SYMPTOM
LIFTGATE FLIP-UP AJAR CIRCUIT OPEN

POSSIBLE CAUSES
- BCM not responding to input
- Ground circuit open
- Liftgate flip-up ajar switch open
- Liftgate flip-up ajar switch sense circuit open
- Junction block - open liftgate flip-up ajar switch sense circuit
- Body control module, internal open
