Left Rear Door Ajar Circuit Shorted to Ground

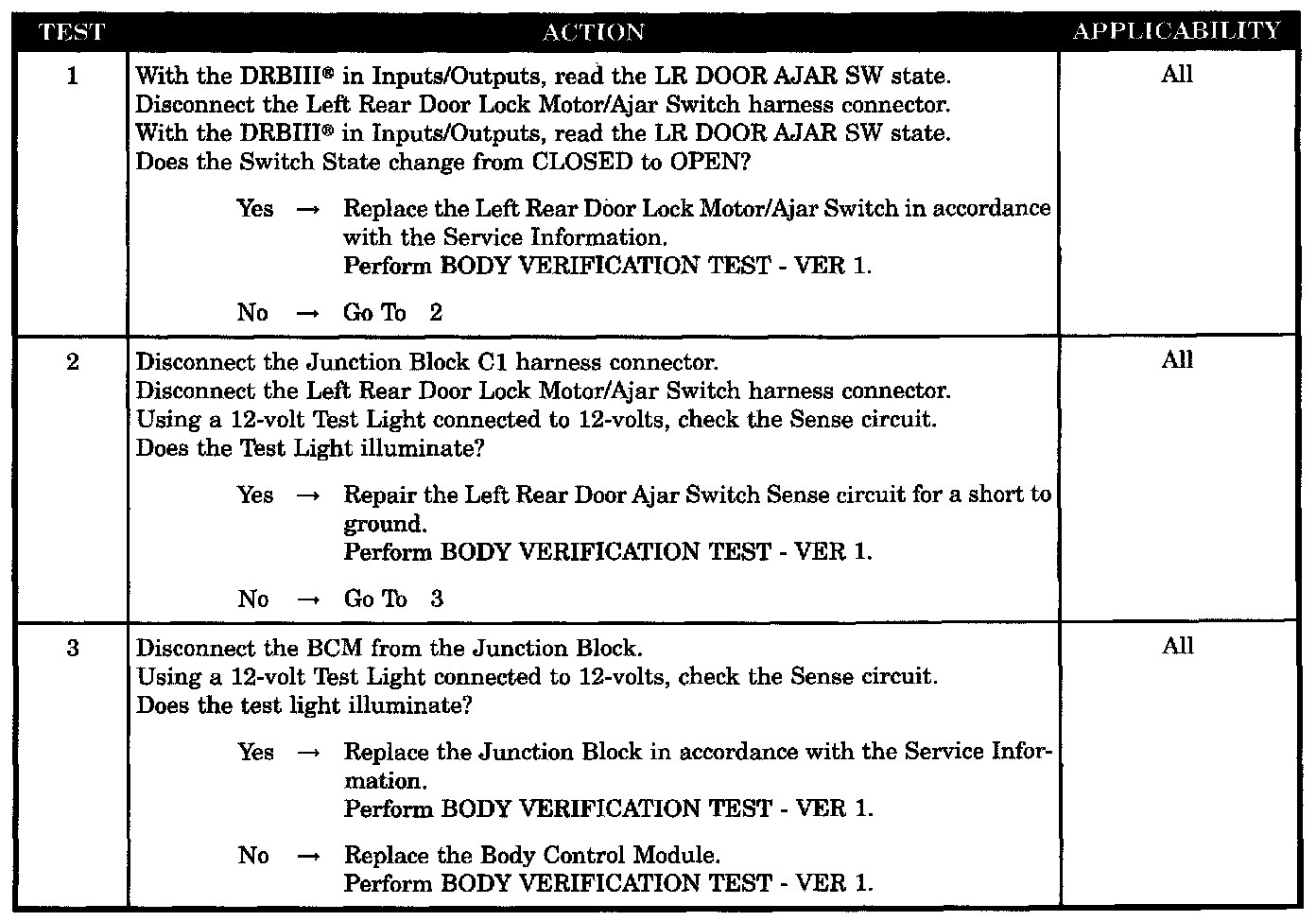

Test 1 - 3:






SYMPTOM
LEFT REAR DOOR AJAR CIRCUIT SHORTED TO GROUND

POSSIBLE CAUSES
- Left rear door lock motor/ajar switch shorted to ground
- Left rear door ajar switch sense CKT shorted to ground
- Body control module internal fault
- Left rear door ajar switch sense CKT shorted to ground in junction block
