Left Rear Door Ajar Circuit Open

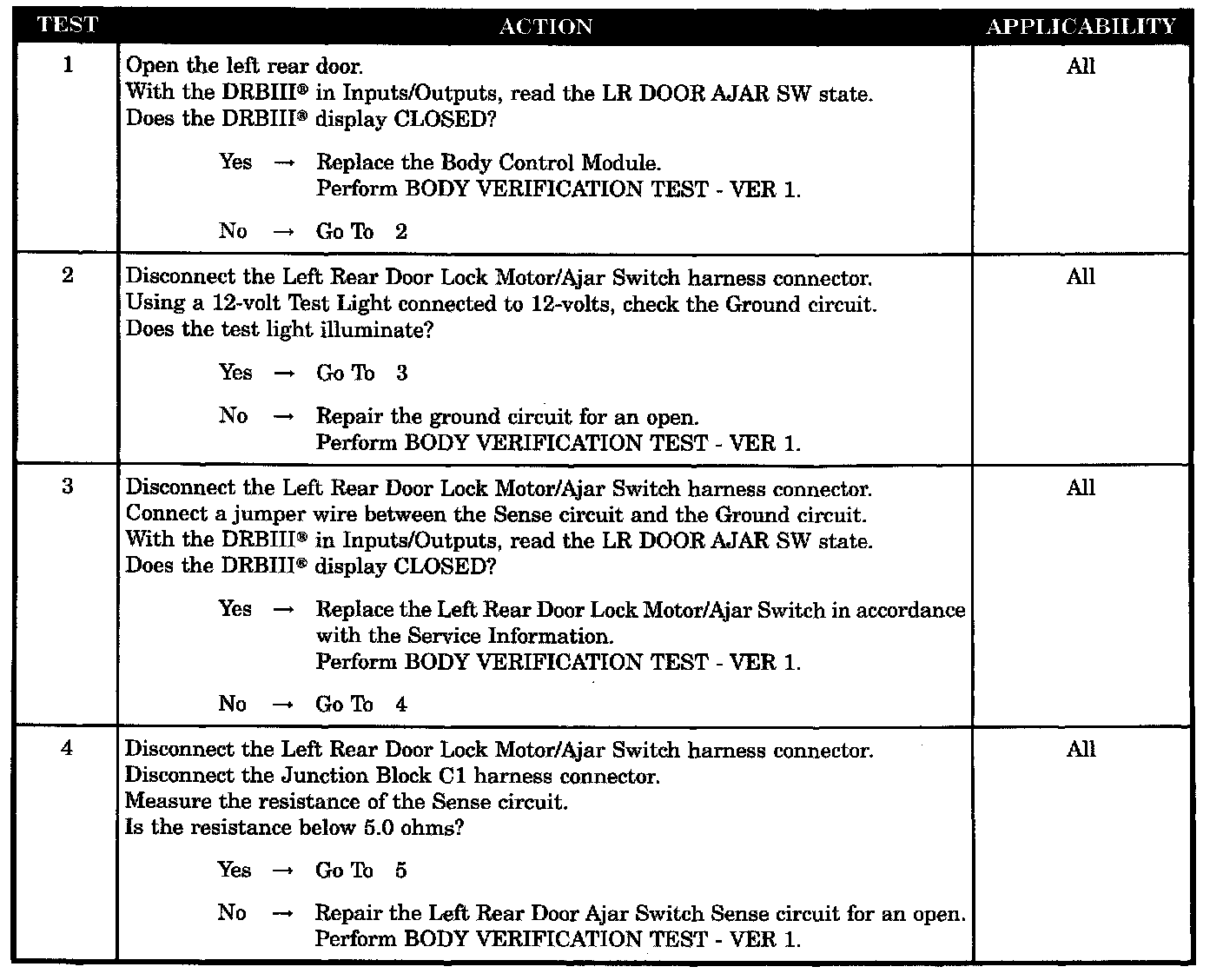

Test 1 - 4:

Test 5:

SYMPTOM
LEFT REAR DOOR AJAR CIRCUIT OPEN

POSSIBLE CAUSES
- BCM not responding to input
- Ground CKT open
- Left rear door lock motor/ajar switch open
- Left rear door ajar switch sense CKT open
- Junction block - open left rear door ajar switch sense CKT
- Body control module internal fault
