Hood Ajar Circuit Open (If Equipped)

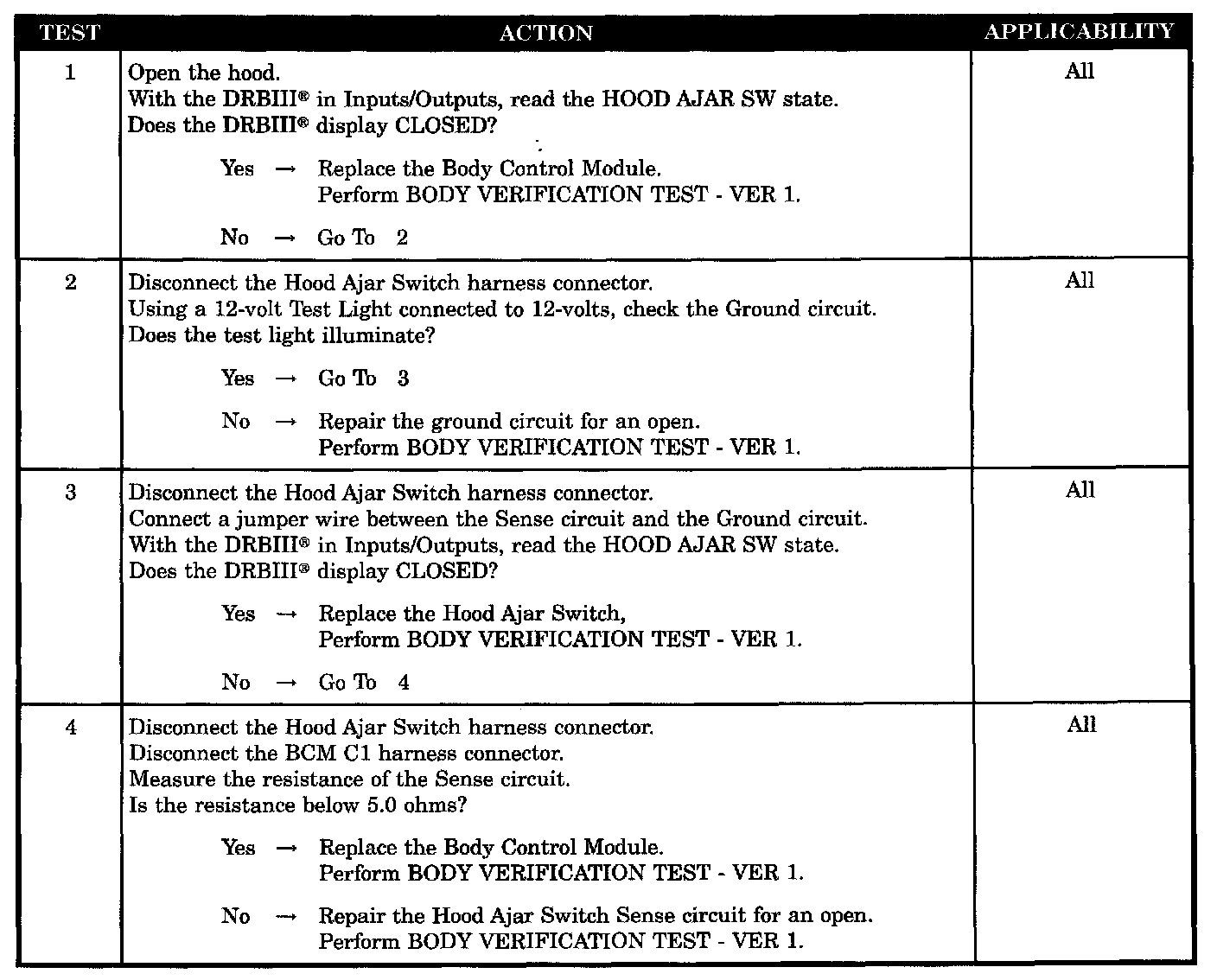

Test 1 - 4:






SYMPTOM
HOOD AJAR CIRCUIT OPEN (IF EQUIPPED)

POSSIBLE CAUSES
- BCM not responding to input
- Ground circuit open
- Hood ajar switch open
- Hood ajar switch sense circuit open
- Body control module, internal open
