Drivers Door Key Fails to Disarm VTSS

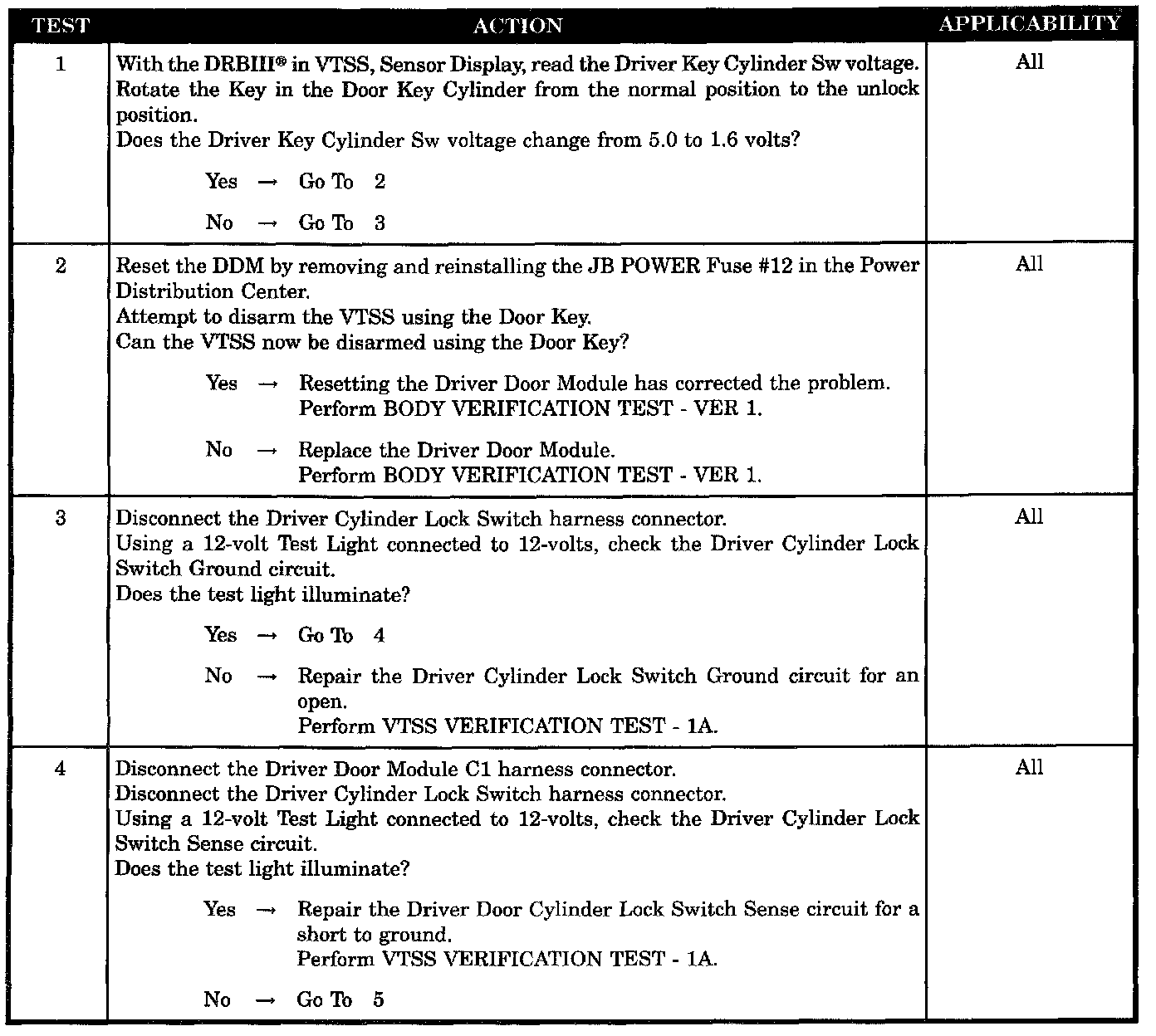

Test 1 - 4:

Test 5:

SYMPTOM
DRIVERS DOOR KEY FAILS TO DISARM VTSS

POSSIBLE CAUSES
- Driver door module reset
- Reset door module
- Open ground circuit
- Driver cylinder lock switch sense circuit shorted to ground
- Open driver cylinder lock switch sense circuit
- Driver cylinder lock switch
