Home >> Jeep >> 2003 >> Grand Cherokee 2WD V8-4.7L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Power Door Locks/RKE >> Driver Door Fails to Lock

Driver Door Fails to Lock

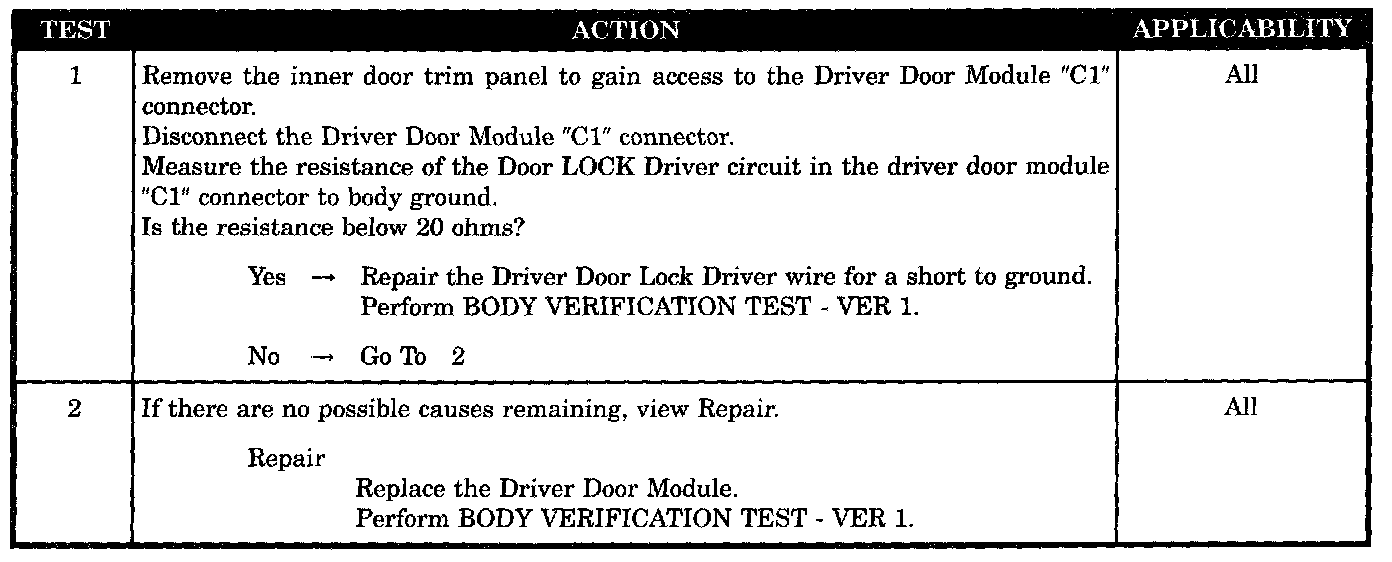

Test 1 - 2:






SYMPTOM
DRIVER DOOR FAILS TO LOCK

POSSIBLE CAUSES
- Driver door lock driver short to GND
- DDM - driver door lock open
