Driver Door Ajar Circuit Open

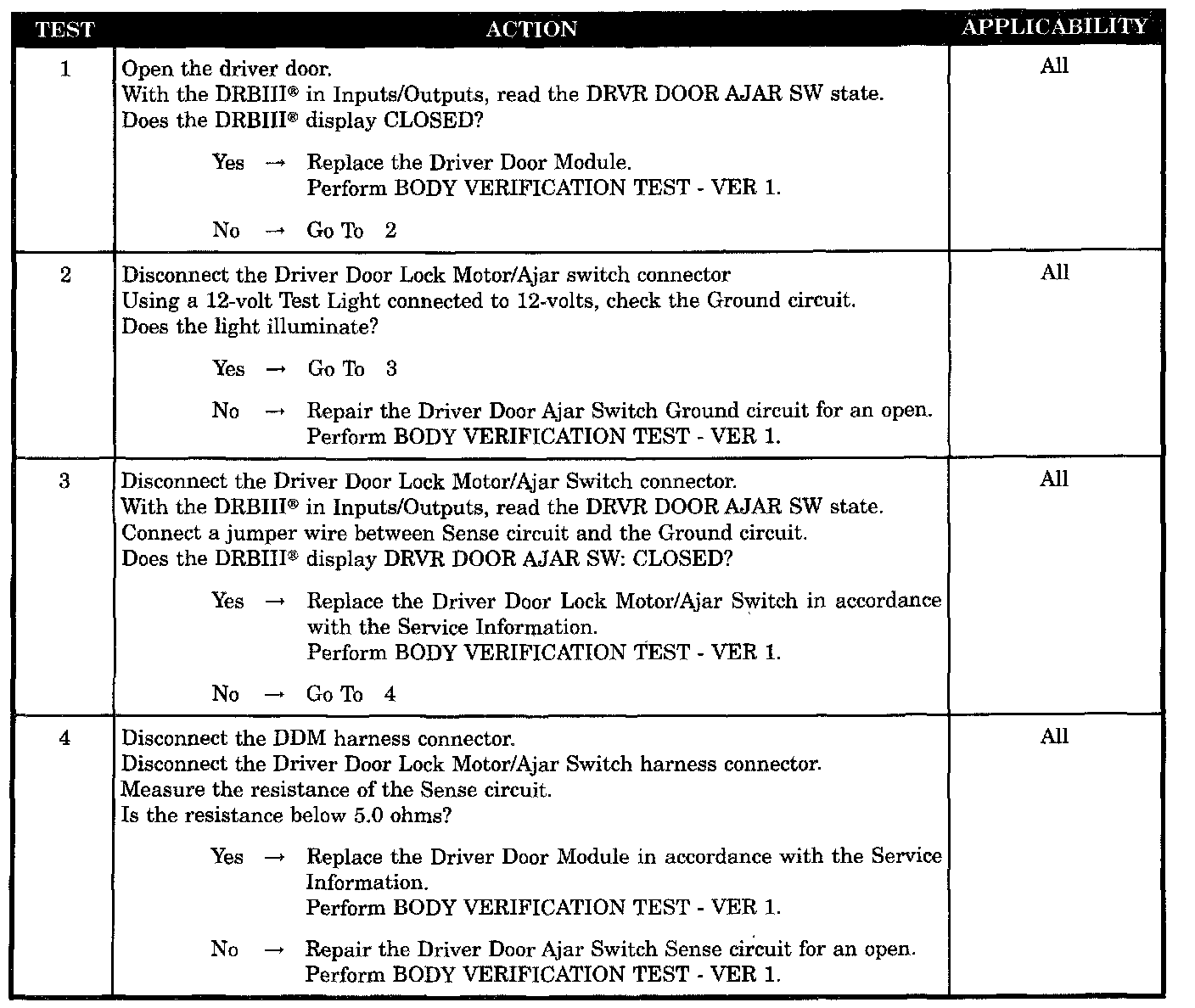

Test 1 - 4:

SYMPTOM
DRIVER DOOR AJAR CIRCUIT OPEN

POSSIBLE CAUSES
- Driver door module not responding to input
- Open driver door ajar switch ground CKT
- Open driver door lock motor/ajar switch
- Open driver door ajar switch sense CKT
- Driver door module
