Doors Lock With Key In Ignition and Front Door Open

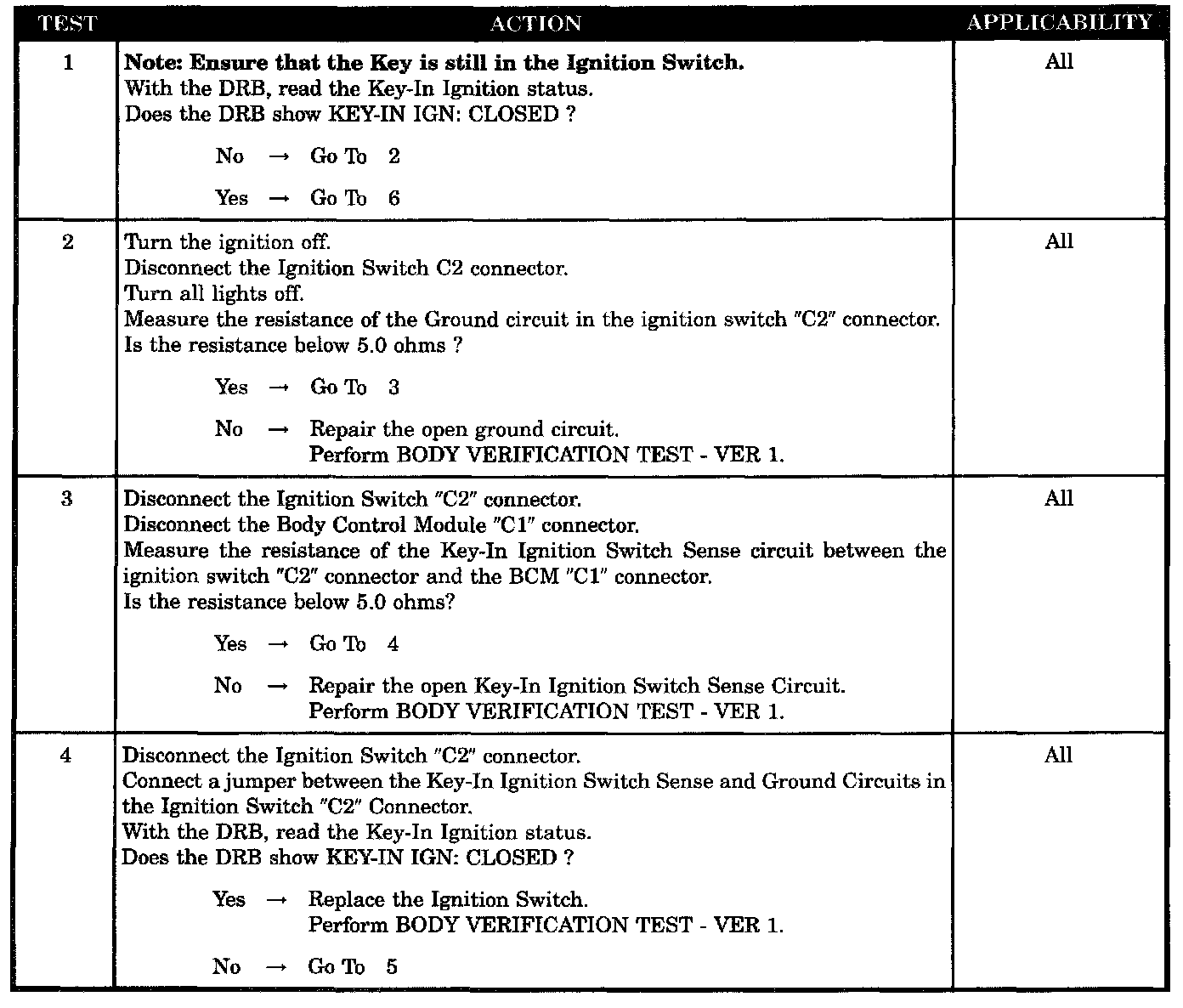

Test 1 - 4:

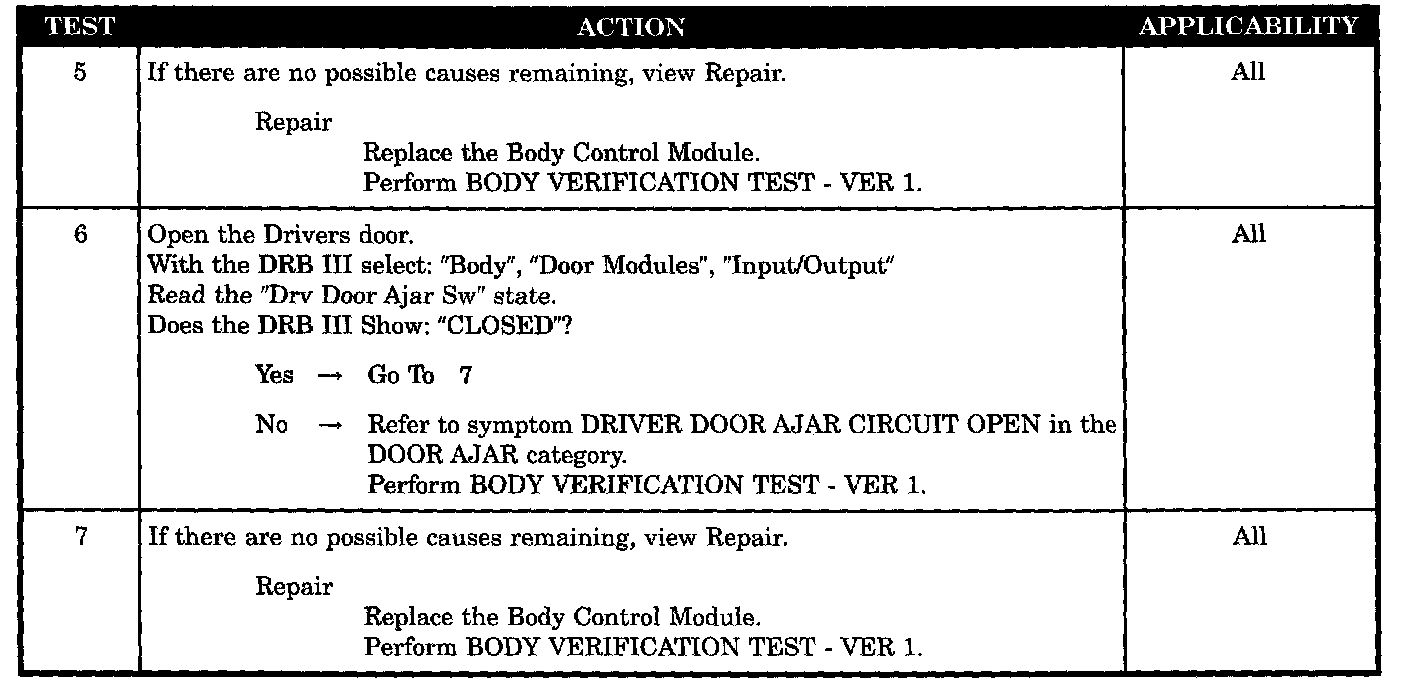

Test 5 - 7:

SYMPTOM
DOORS LOCK WITH KEY IN IGNITION & FRONT DOOR OPEN

POSSIBLE CAUSES
- Driver door ajar switch status incorrect
- Key-in ignition switch ground circuit open
- Key-in ignition switch sense circuit open
- Ignition switch open
- BCM - door lock inhibit open
- Body control module - key-in ignition open
