All Doors (Except Driver) Fail to Lock and Unlock

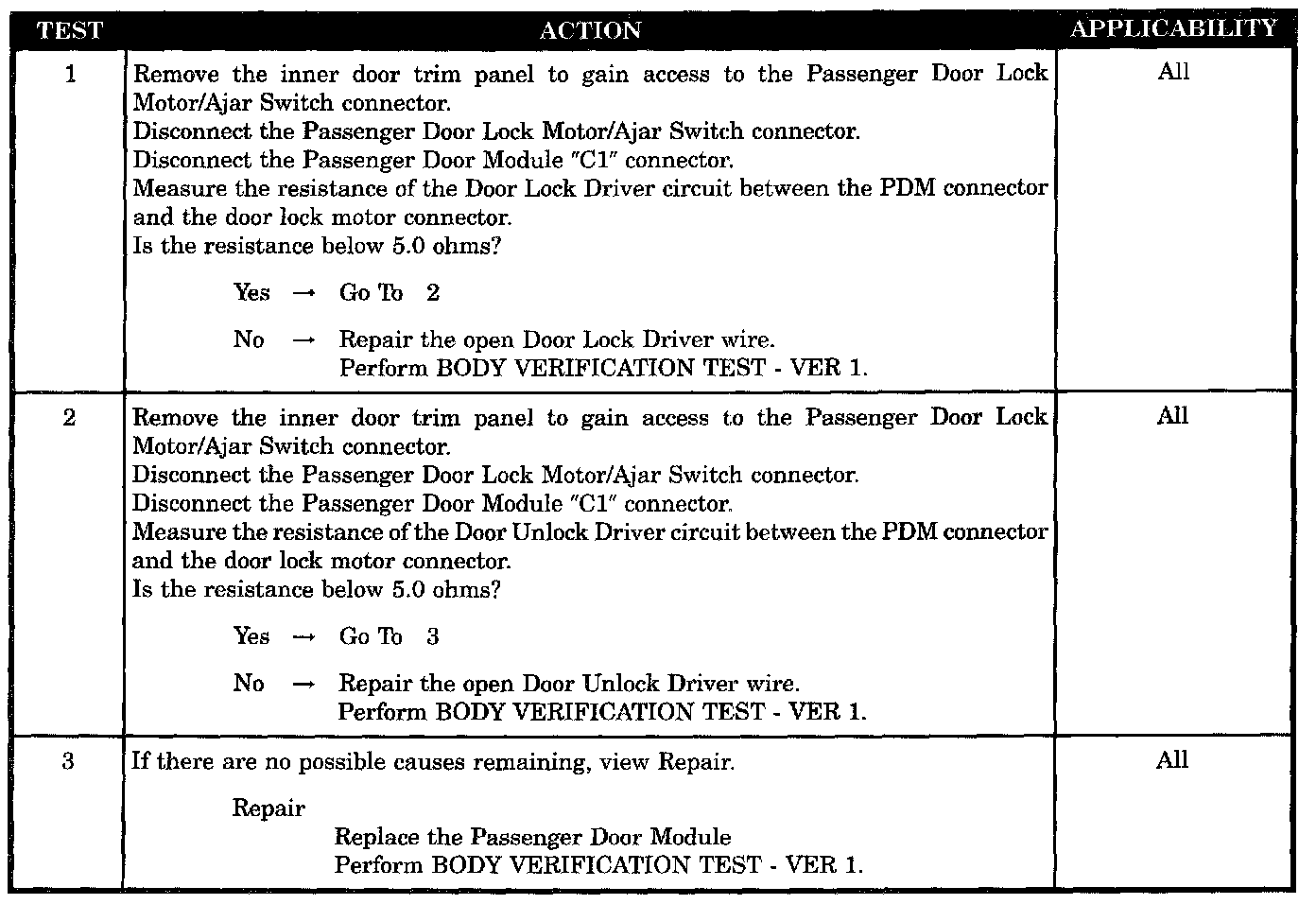

Test 1 - 3:






SYMPTOM
ALL DOORS (EXCEPT DRIVER) FAIL TO LOCK/UNLOCK

POSSIBLE CAUSES
- Open door lock driver wire
- Open door unlock driver wire
- PDM - lock/unlock open
