Washer Fluid Switch Failure

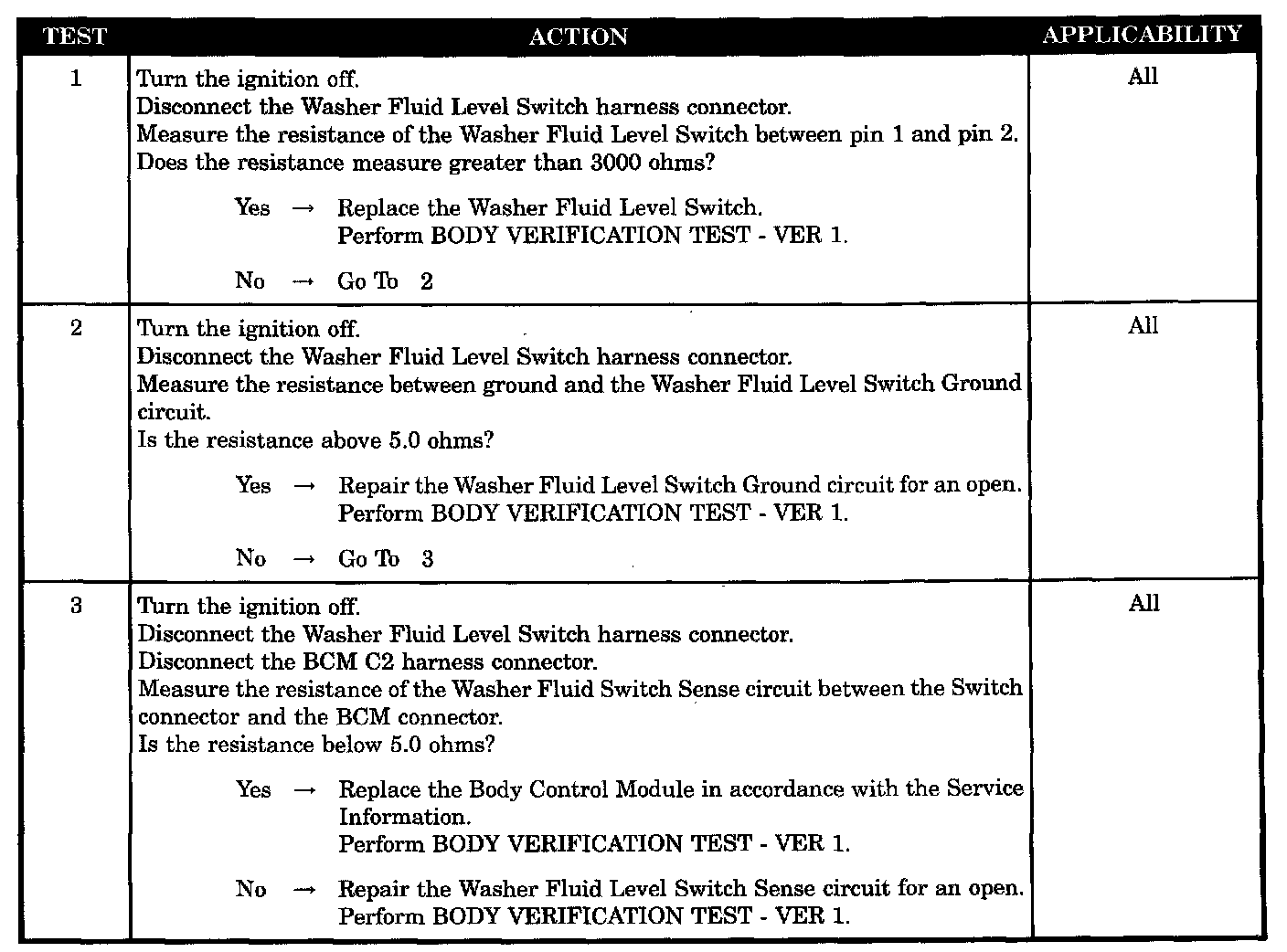

Test 1 - 3:






SYMPTOM
WASHER FLUID SWITCH FAILURE

POSSIBLE CAUSES
- Washer fluid level switch
- Washer fluid level switch ground circuit open
- Washer fluid level switch sense circuit open
- Body control module
