EVIC Internal Failure

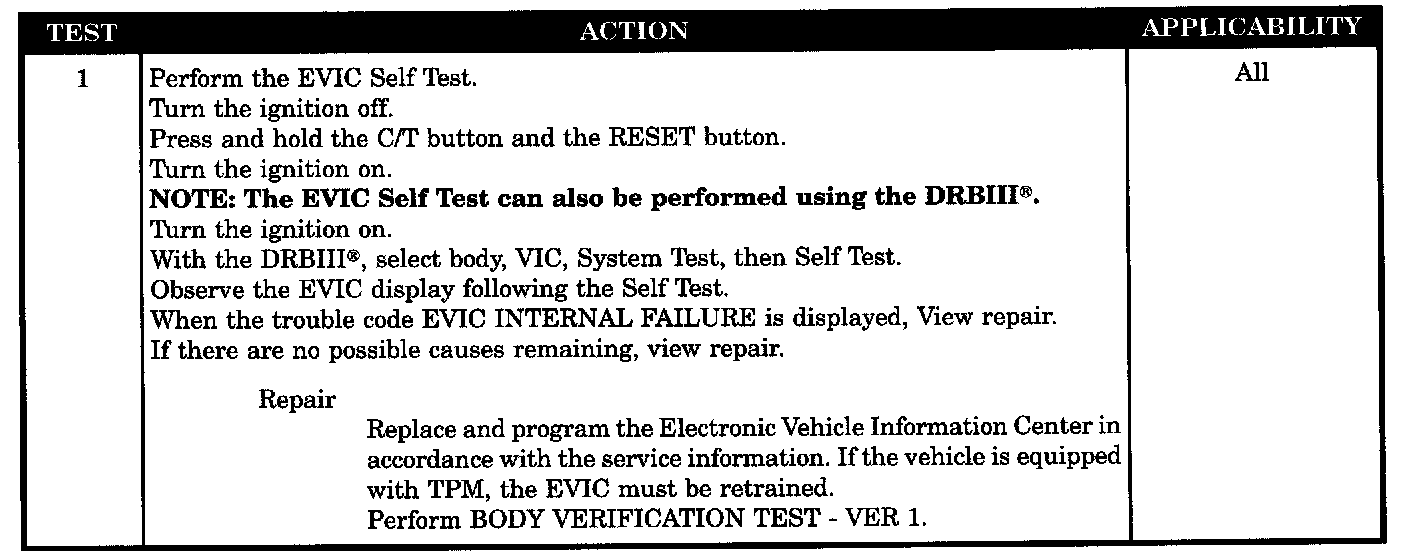

Test 1:

SYMPTOM
EVIC INTERNAL FAILURE

WHEN MONITORED
When a SELF TEST command is received from the DRBIII, the EVIC performs a series of tests on the microprocessor, compass coil, and internal circuitry.

SET CONDITION
This code will be set during the self test if the EVIC detects a problem the microprocessor, compass coil, or internal circuitry.

POSSIBLE CAUSES
- Electronic vehicle information center
