Bus Messages Missing

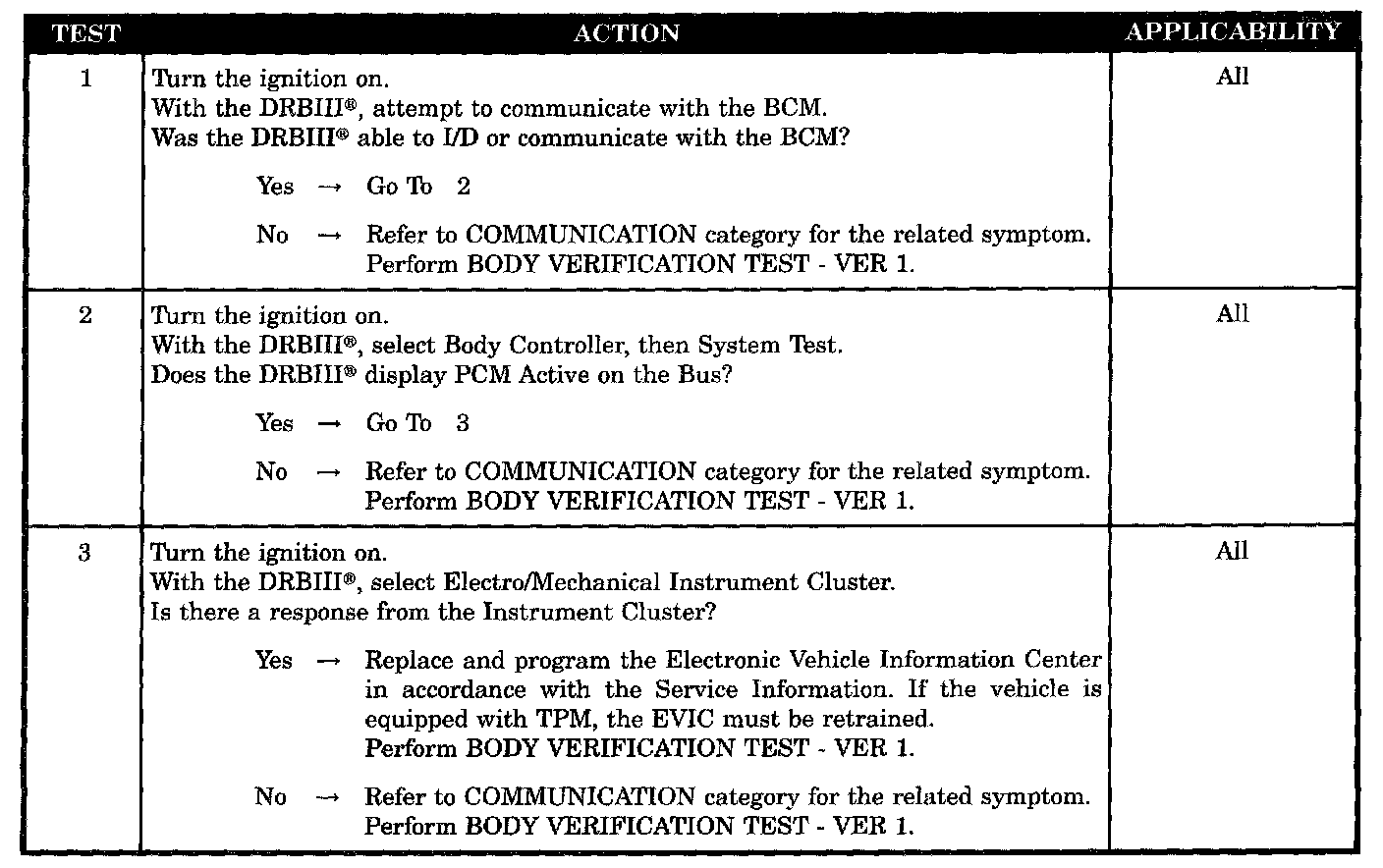

Test 1 - 3:

SYMPTOM
BUS MESSAGES MISSING

WHEN MONITORED
While the EVIC is performing a series of tests on the microprocessor, compass coil, and internal circuitry.

SET CONDITION
This code will set during the self test if the EVIC does not receive PCI Bus messages from the BCM, MIC, or PCM.

POSSIBLE CAUSES
- No response - PCI bus - BCM
- No response - PCI bus - PCM
- No response - PCI bus - MIC
- Electronic vehicle information center
