Recliner Sensor Out of Range High

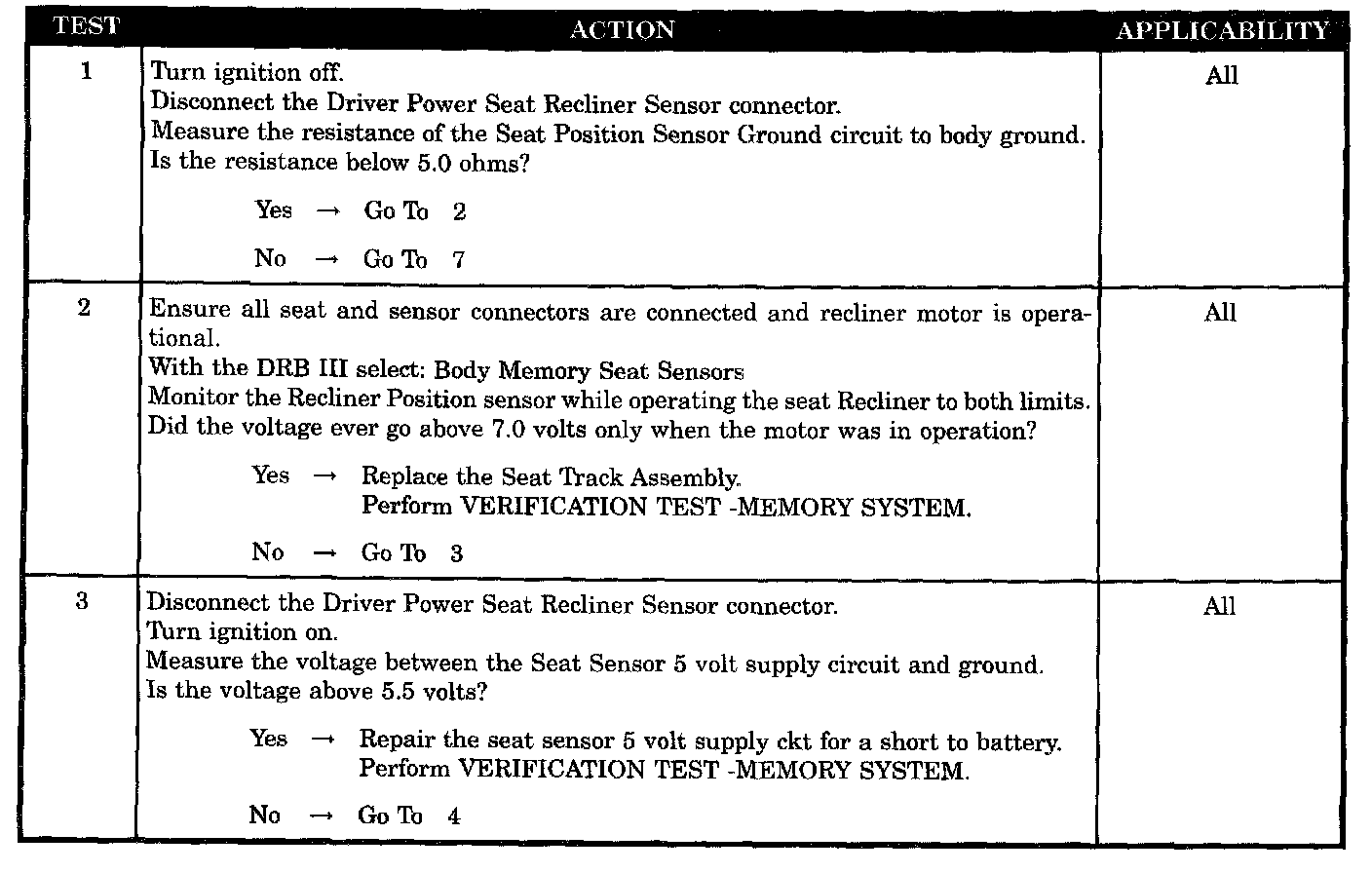

Test 1 - 3:

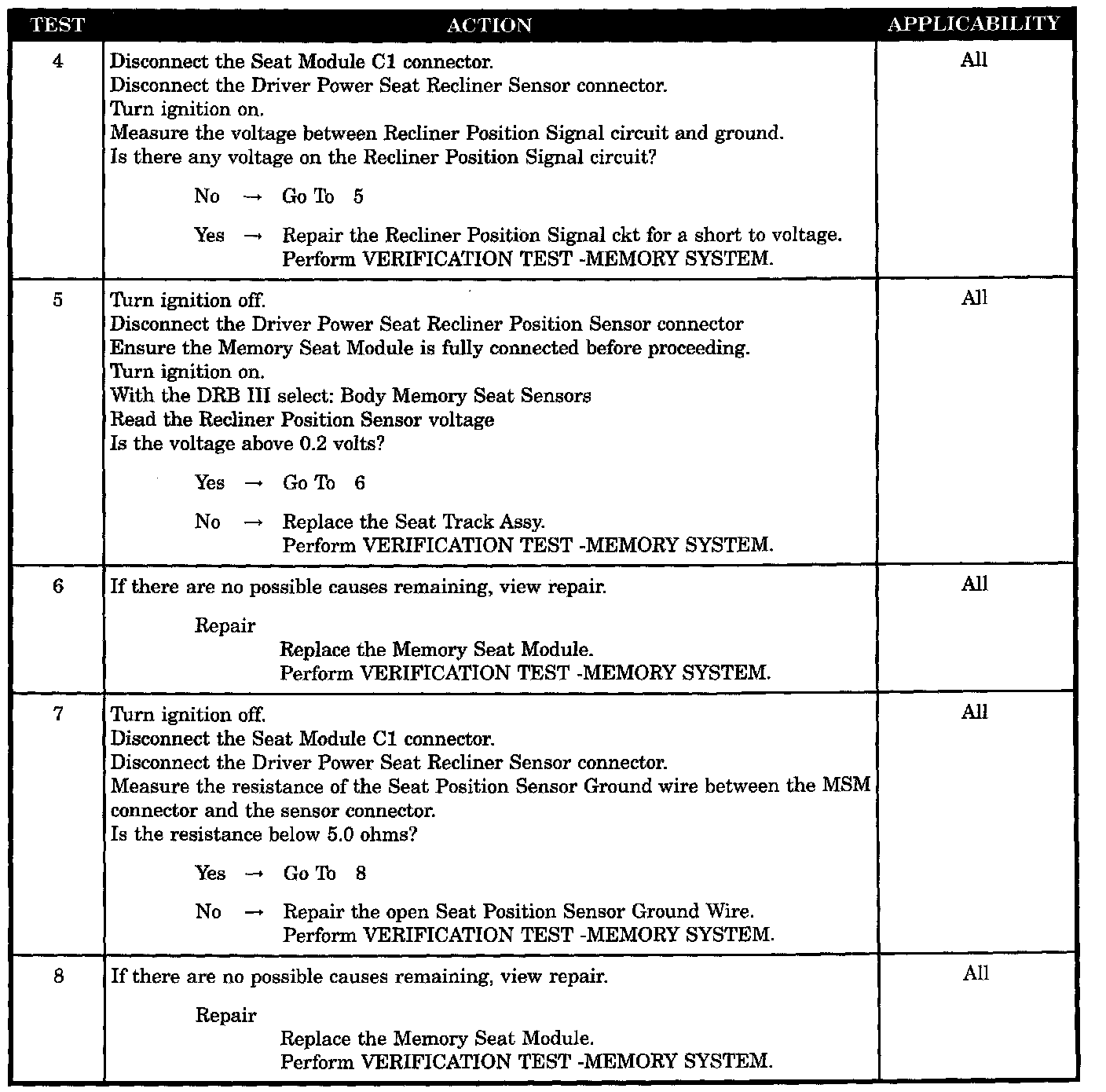

Test 4 - 8:

SYMPTOM
RECLINER SENSOR OUT OF RANGE HIGH

WHEN MONITORED
Ignition on

SET CONDITION
This condition is immediately set when the seat motor potentiometer feeds a value higher than the Memory Heated Seat/Mirror Module has stored in EEPROM.

POSSIBLE CAUSES
- Seat sensor ground wire open
- Recliner position signal short to motor
- Seat sensor 5 Volt supply short to battery
- Recliner position signal short to voltage
- Recliner position sensor high
- Memory seat module internal ground open
- Memory seat module internal high
