Rear Riser Sensor Out of Range Low

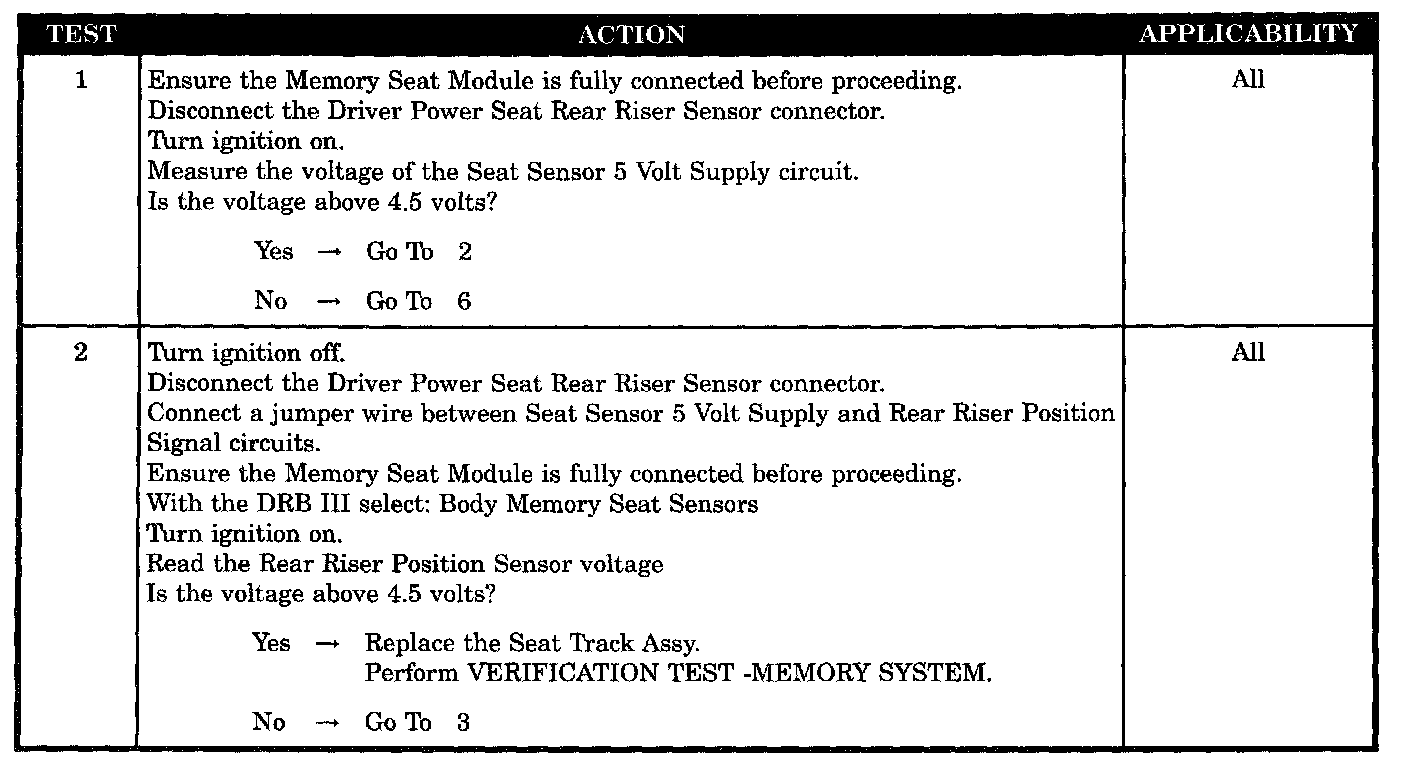

Test 1 - 2:

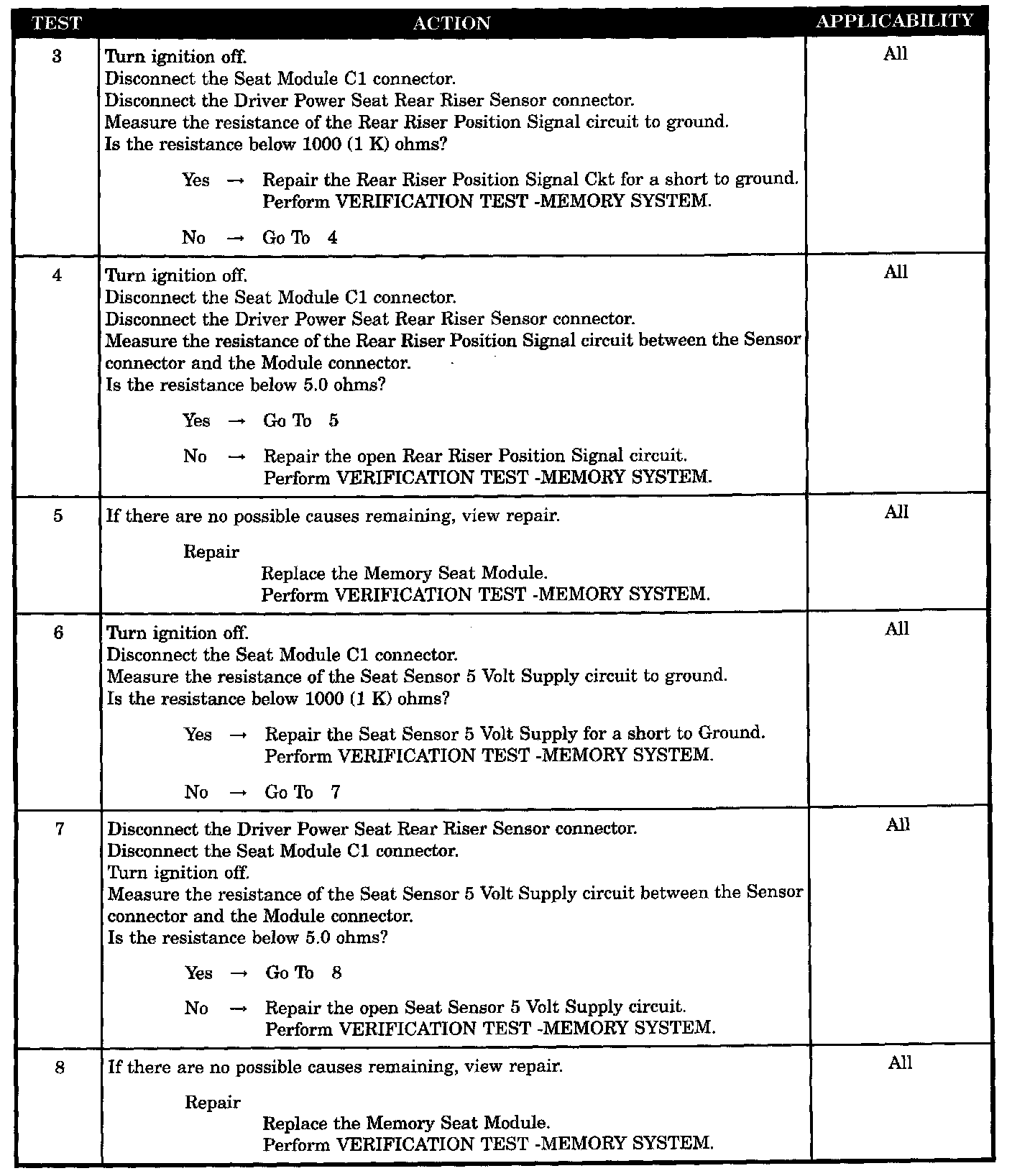

Test 3 - 8:

SYMPTOM
REAR RISER SENSOR OUT OF RANGE LOW

WHEN MONITORED
Ignition on.

SET CONDITION
This condition is immediately set when the seat motor potentiometer feeds a value lower than the Memory Heated Seat/Mirror Module has stored in EEPROM.

POSSIBLE CAUSES
- Seat sensor 5 V supply short to ground
- Rear riser sensor (low)
- Seat sensor 5 volt supply open
- Rear riser POS signal CKT short to ground
- Rear riser position signal CKT open
- Memory seat module internal 5 volt low
- Memory seat module internal low
