Front Riser Sensor Out of Range High

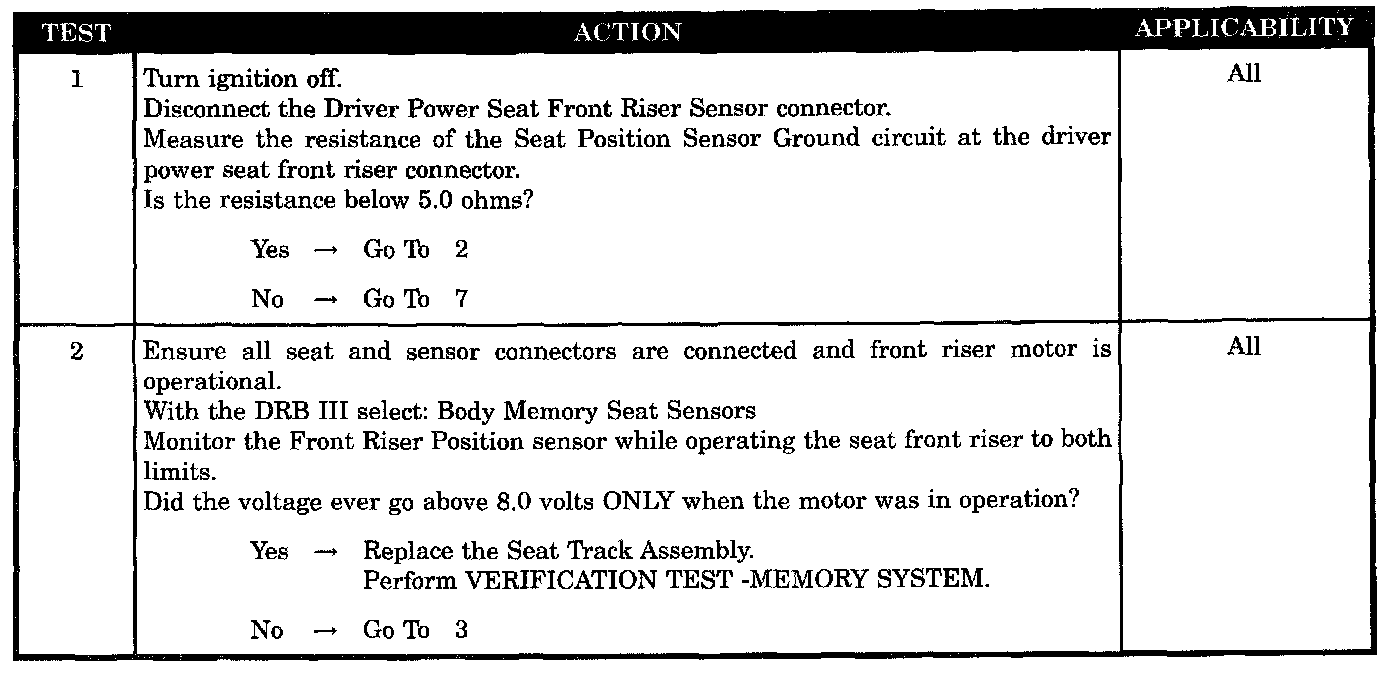

Test 1 - 2:

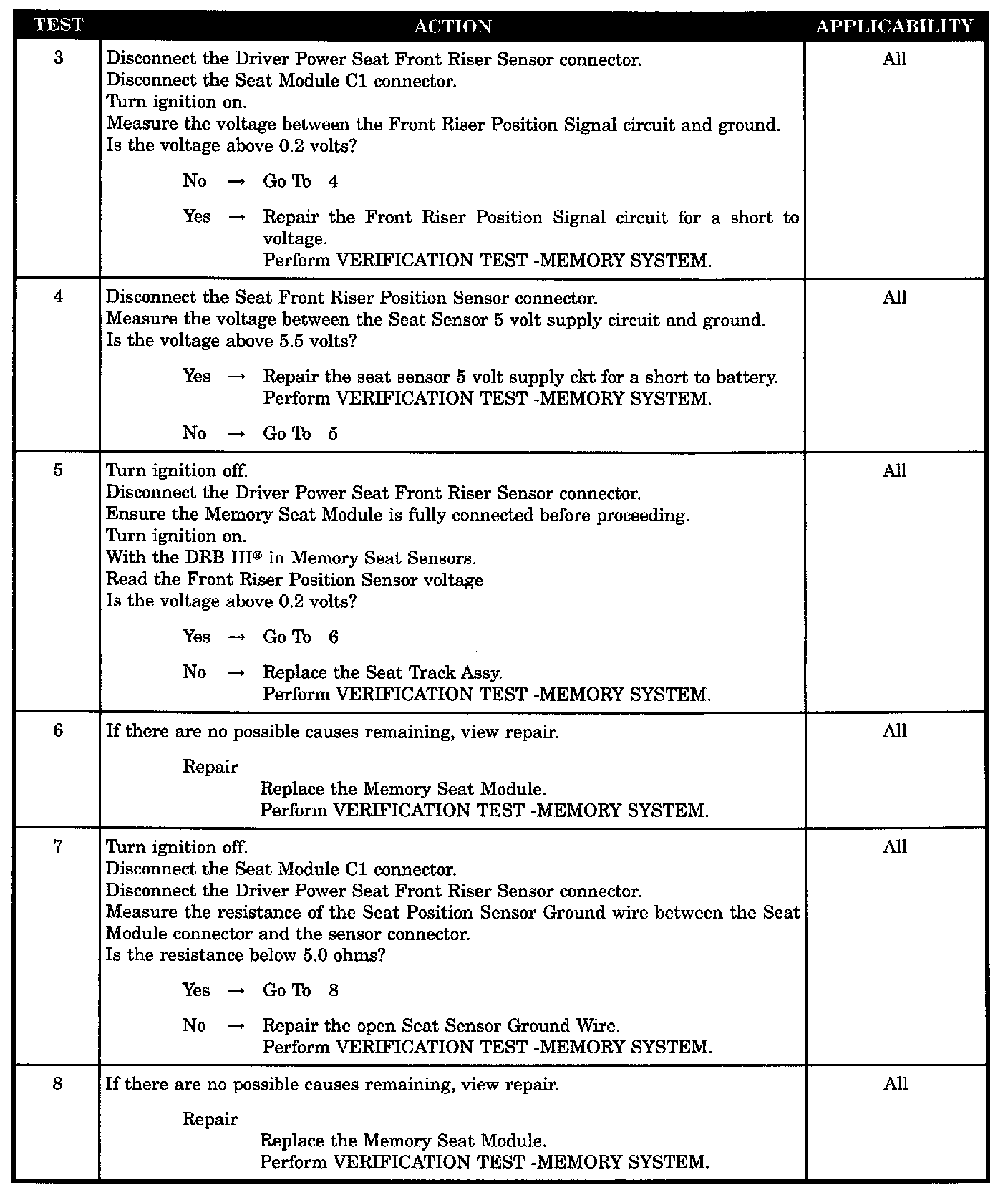

Test 3 - 8:

SYMPTOM
FRONT RISER SENSOR OUT OF RANGE HIGH

WHEN MONITORED
Ignition on.

SET CONDITION
This condition is immediately set when the seat motor potentiometer feeds a value higher than the Memory Seat Module has stored in EEPROM.

POSSIBLE CAUSES
- Seat sensor ground wire open
- Front riser sensor signal short to motor
- Seat sensor 5 volt supply short to battery
- Front riser position signal CKT short to voltage
- Front riser sensor high
- Memory seat module internal ground open
- Memory seat module front riser high
