Driver Seat Horizontal Movement Inoperative

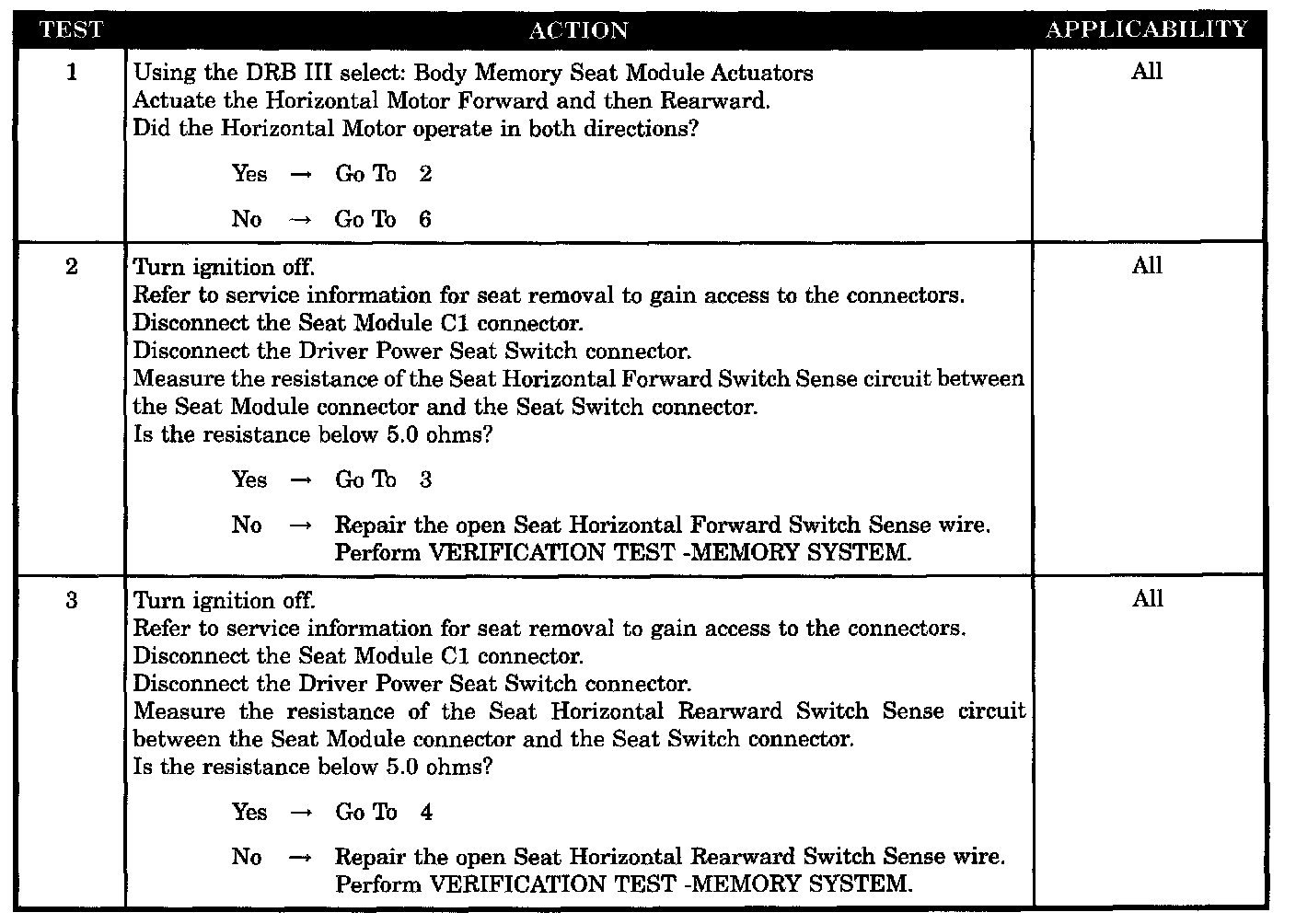

Test 1 - 3:

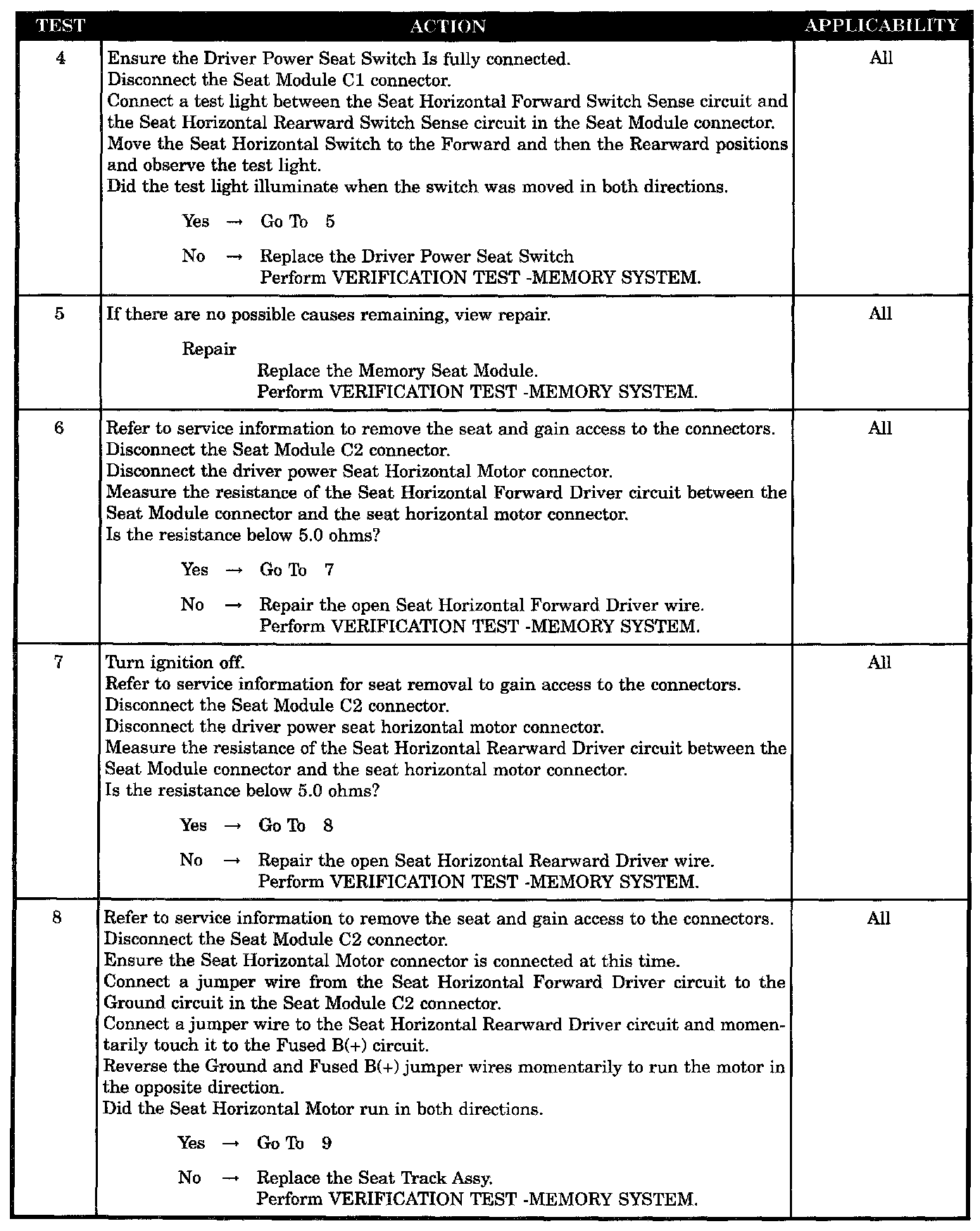

Test 4 - 8:

Test 9:

SYMPTOM
DRIVER SEAT HORIZONTAL MOVEMENT INOPERATIVE

POSSIBLE CAUSES
- Seat horizontal forward driver wire open
- Seat horizontal forward switch sense wire open
- Seat horizontal rearward driver wire open
- Seat horizontal rearward switch sense wire open
- Driver horizontal motor inoperative
- Driver power seat switch
- MSM horizontal motor output open
- MSM horizontal switch input open
