Load Shed Failure Shorted to Battery

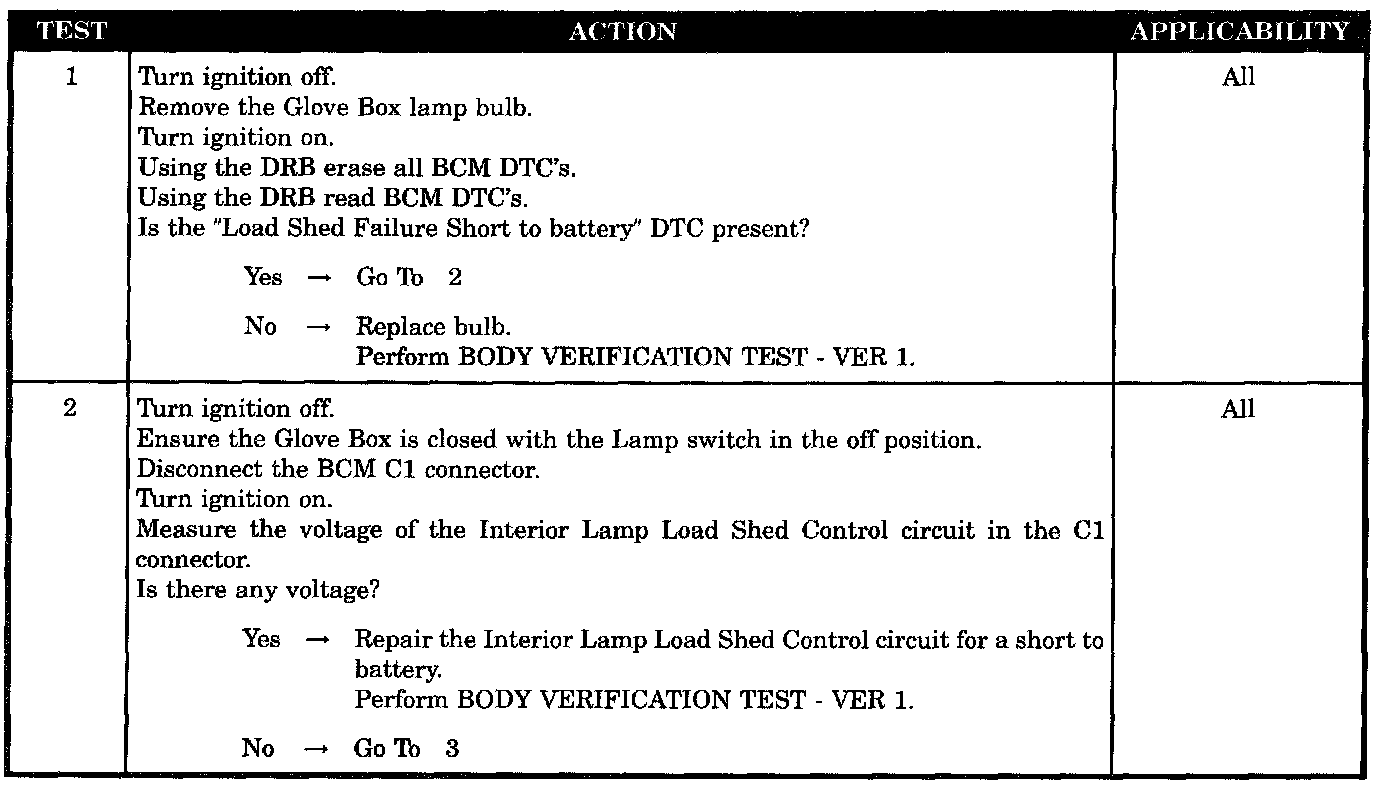

Test 1 - 2:

Test 3:

SYMPTOM
LOAD SHED FAILURE SHORT TO BATTERY

WHEN MONITORED
Ignition in RUN and IOD fuse/connector installed

SET CONDITION
The BCM has detected a short to battery on the Interior Load Shed circuit for 5 seconds

POSSIBLE CAUSES
- Shorted glove box lamp bulb
- Interior lamp load shed control short to battery (courtesy)
- Interior lamp load shed control short to battery (glove box)
- BCM, interior lamp load shed control
