Courtesy Lamps On at All Times (Exc. Front Door Courtesy Lamps)

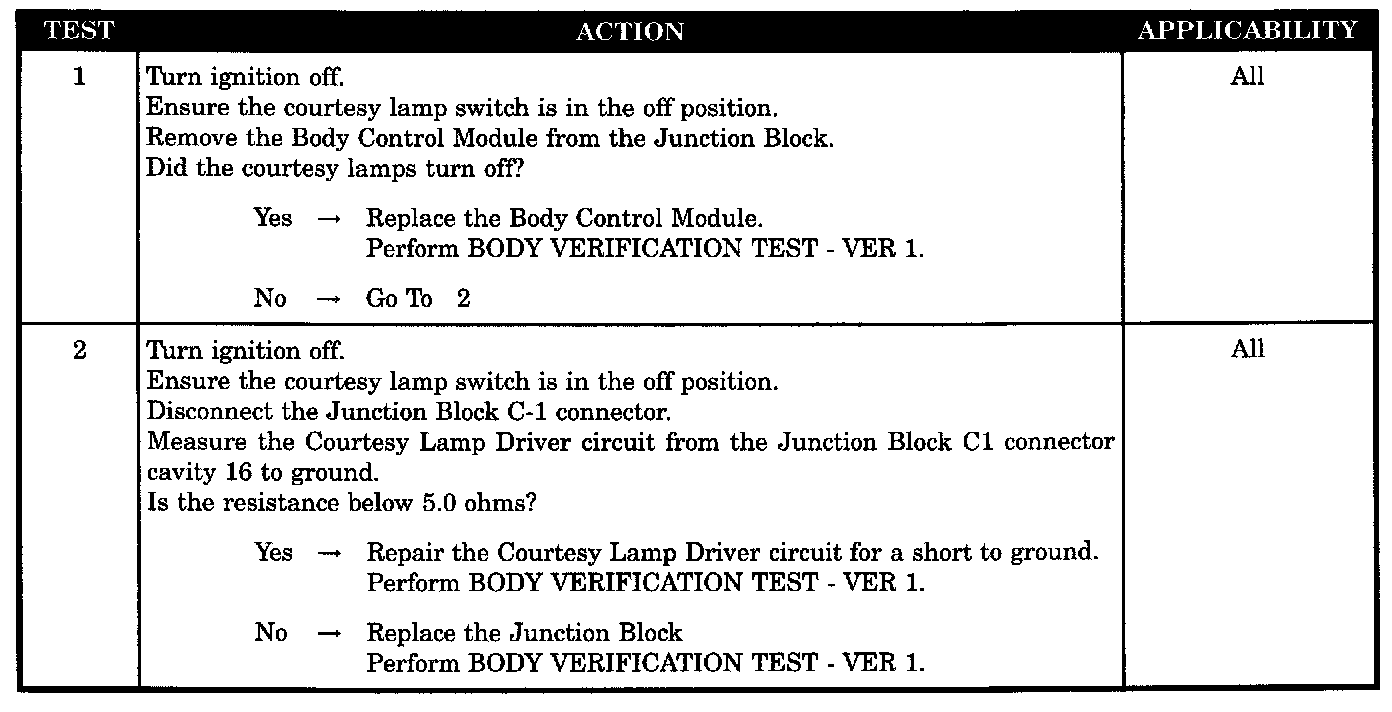

Test 1 - 2:






SYMPTOM
COURTESY LAMPS ON AT ALL TIMES (EXCEPT BOTH FRONT DOOR COURTESY LAMPS IF EQUIP)

POSSIBLE CAUSES
- Junction block
- BCM, courtesy lamps stay on
- Courtesy lamp driver circuit shorted to ground
