Courtesy Lamps Inoperative From Passenger Front Door Only

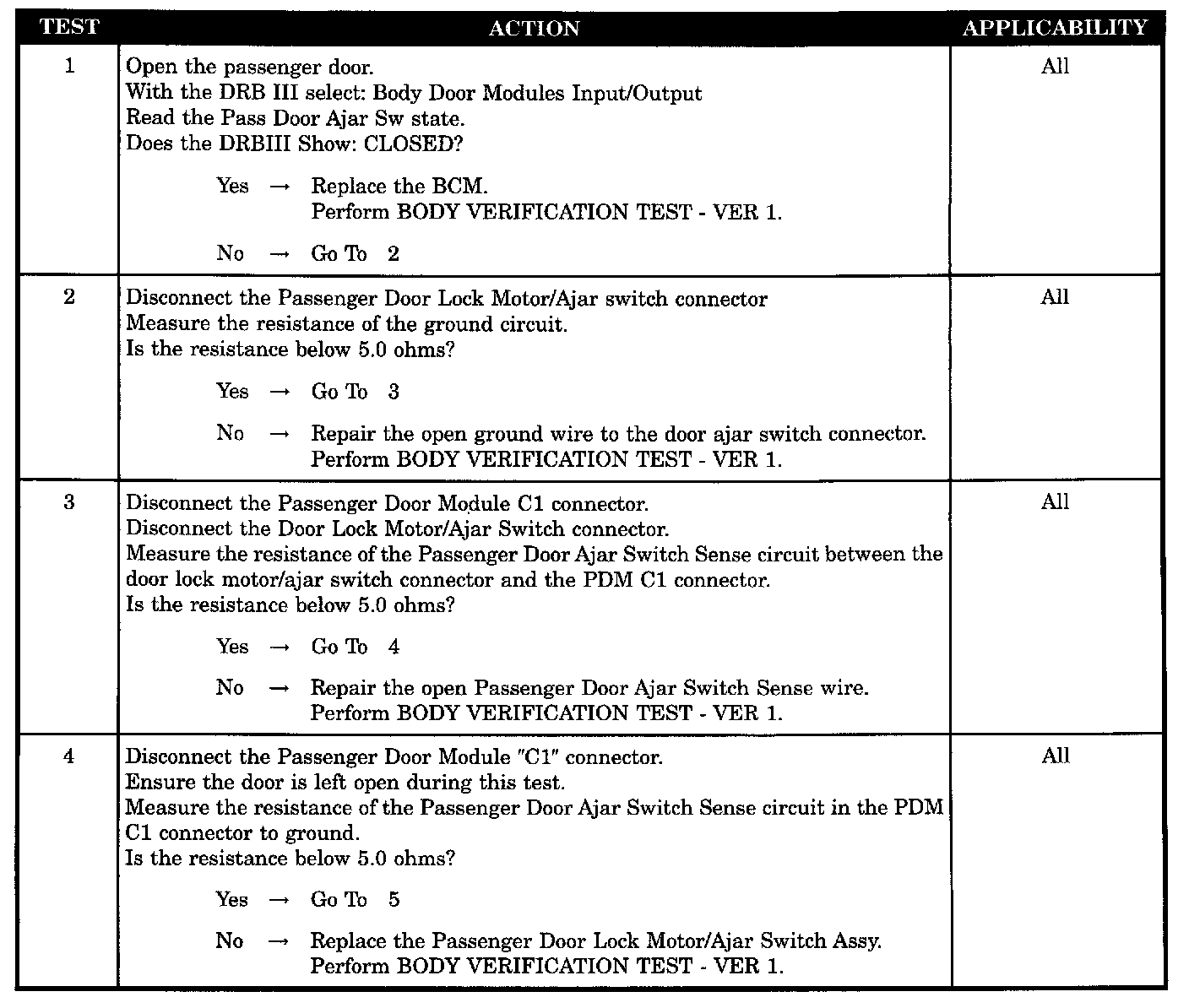

Test 1 - 4:

Test 5:

SYMPTOM
COURTESY LAMPS INOPERATIVE FROM PASSENGER FRONT DOOR ONLY

POSSIBLE CAUSES
- Open ground wire
- Open passenger door ajar switch sense wire
- Passenger door ajar switch
- BCM courtesy lamps inoperative from passenger front door only
- Passenger door module (ajar switch open)
