Courtesy Lamps Inoperative (Except Front Doors)

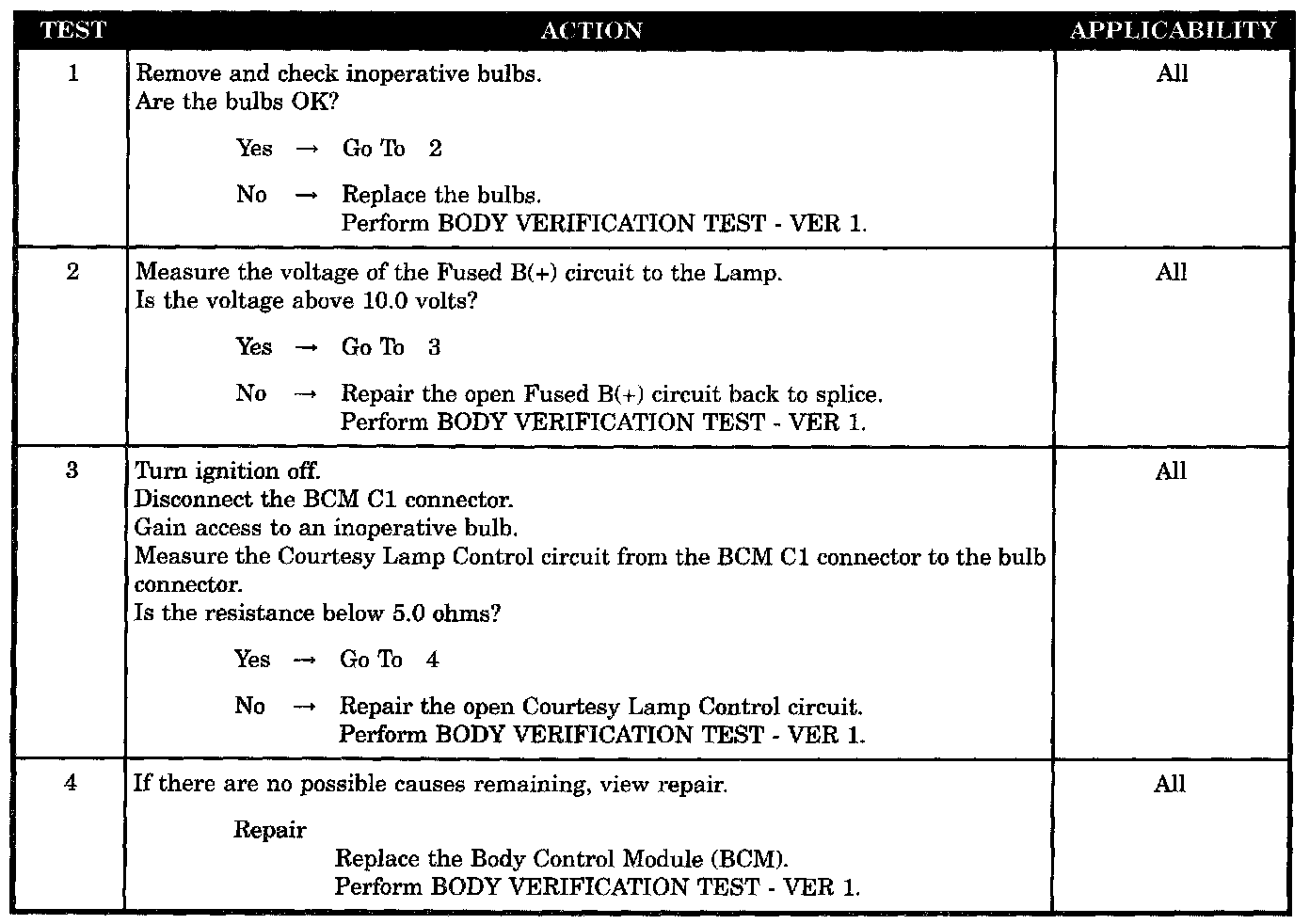

Test 1 - 4:






SYMPTOM
COURTESY LAMPS INOPERATIVE (EXCEPT FRONT DOORS)

POSSIBLE CAUSES
- Bulbs
- Open fused B(+)
- Courtesy lamp control circuit open
- BCM, courtesy lamp
