Ash Tray Lamp Inoperative

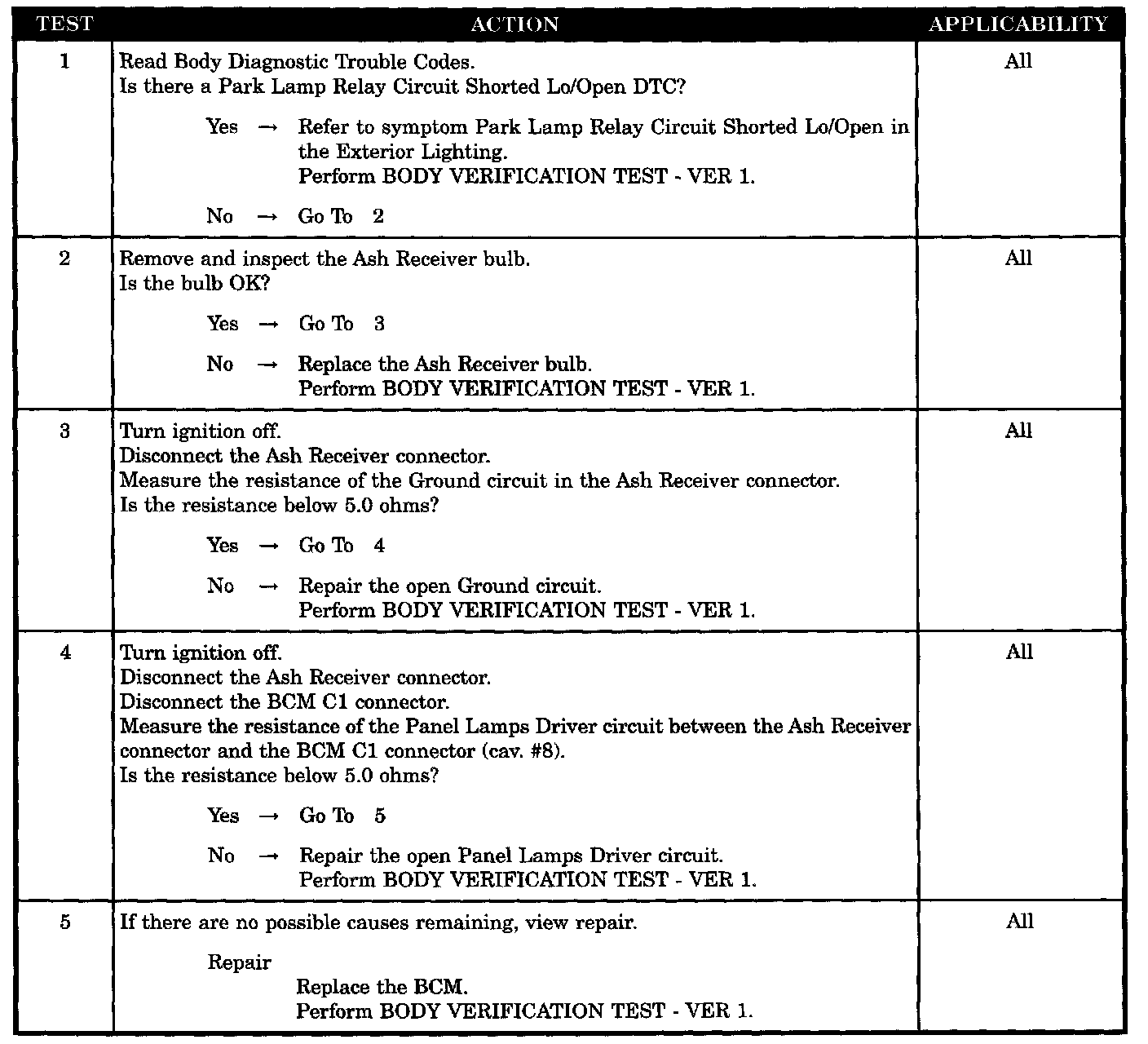

Test 1 - 5:






SYMPTOM
ASH TRAY LAMP INOPERATIVE

POSSIBLE CAUSES
- BCM DTC
- Ash receiver bulb open
- Open ground circuit
- Panel lamps driver circuit open
- BCM
