Instrument Cluster
>>
Temperature Gauge Inoperative
Temperature Gauge Inoperative

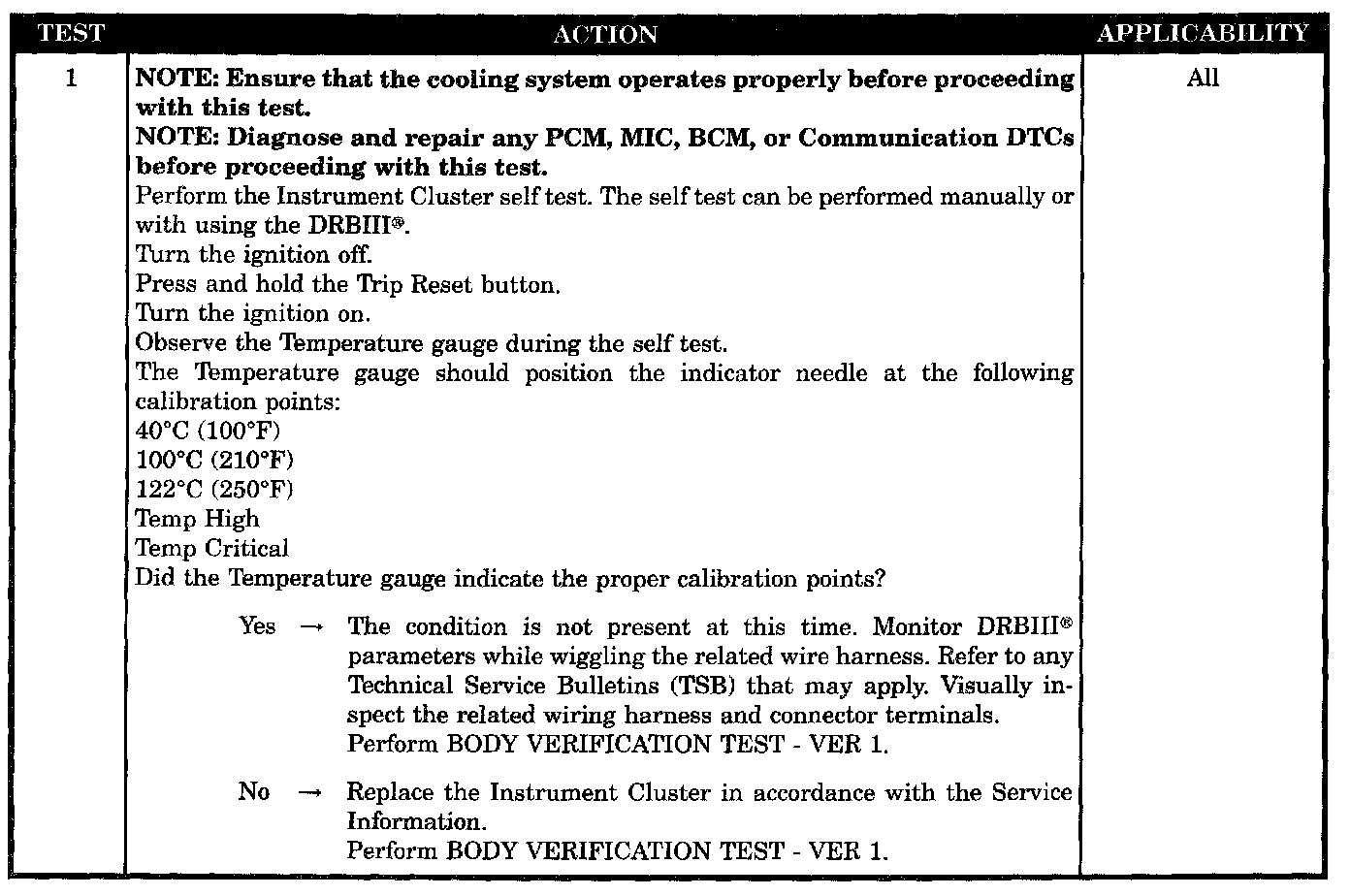

Test 1:
SYMPTOM
TEMPERATURE GAUGE INOPERATIVE
POSSIBLE CAUSES
-
Intermittent Condition
-
Instrument cluster
