SKIM Messages Not Received By MIC

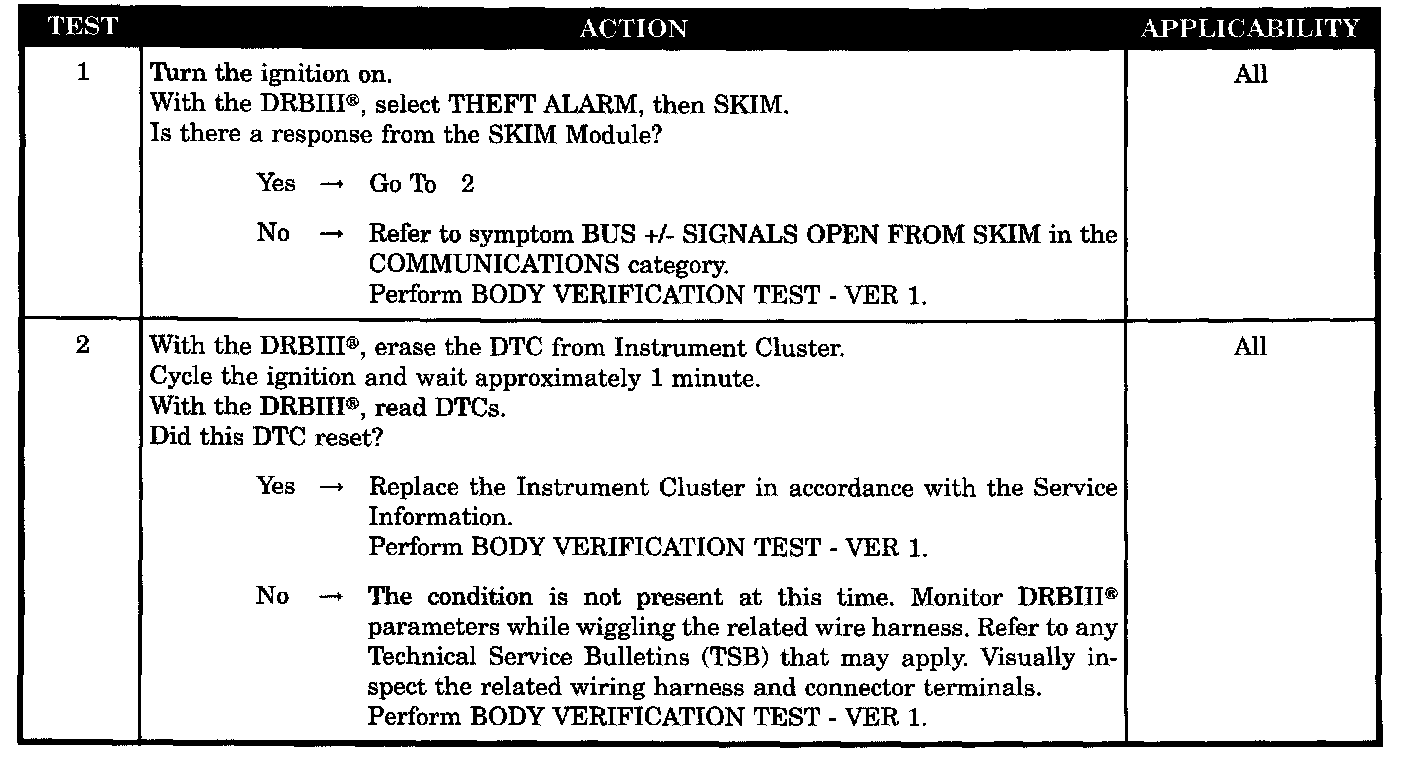

Test 1 - 2:

SYMPTOM
SKIM MESSAGE NOT RECEIVED BY MIC

WHEN MONITORED
Monitored during ignition on.

SET CONDITION
No SKIM messages received for 6 seconds.

POSSIBLE CAUSES
- No response - PCI bus - SKIM
- Intermittent condition
- Instrument cluster
