No PCI BUS Communication

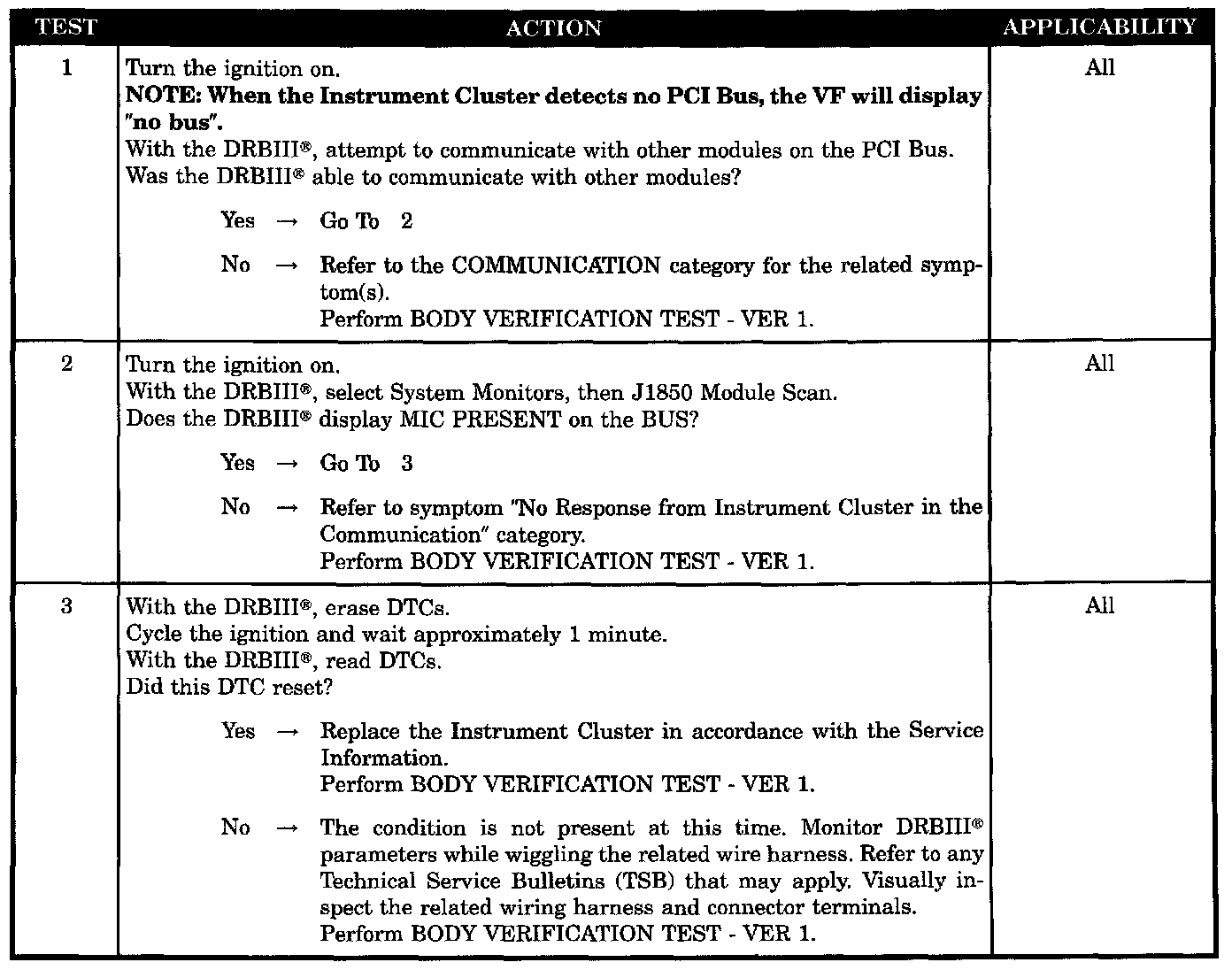

Test 1 - 3:






SYMPTOM
NO PCI BUS COMMUNICATION

POSSIBLE CAUSES
- No response - PCI bus
- Intermittent condition
- No response - PCI bus - instrument cluster
- Instrument cluster
