Home >> Jeep >> 2003 >> Grand Cherokee 2WD V8-4.7L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Instrument Cluster >> Low Coolant Warning Always On

Low Coolant Warning Always On

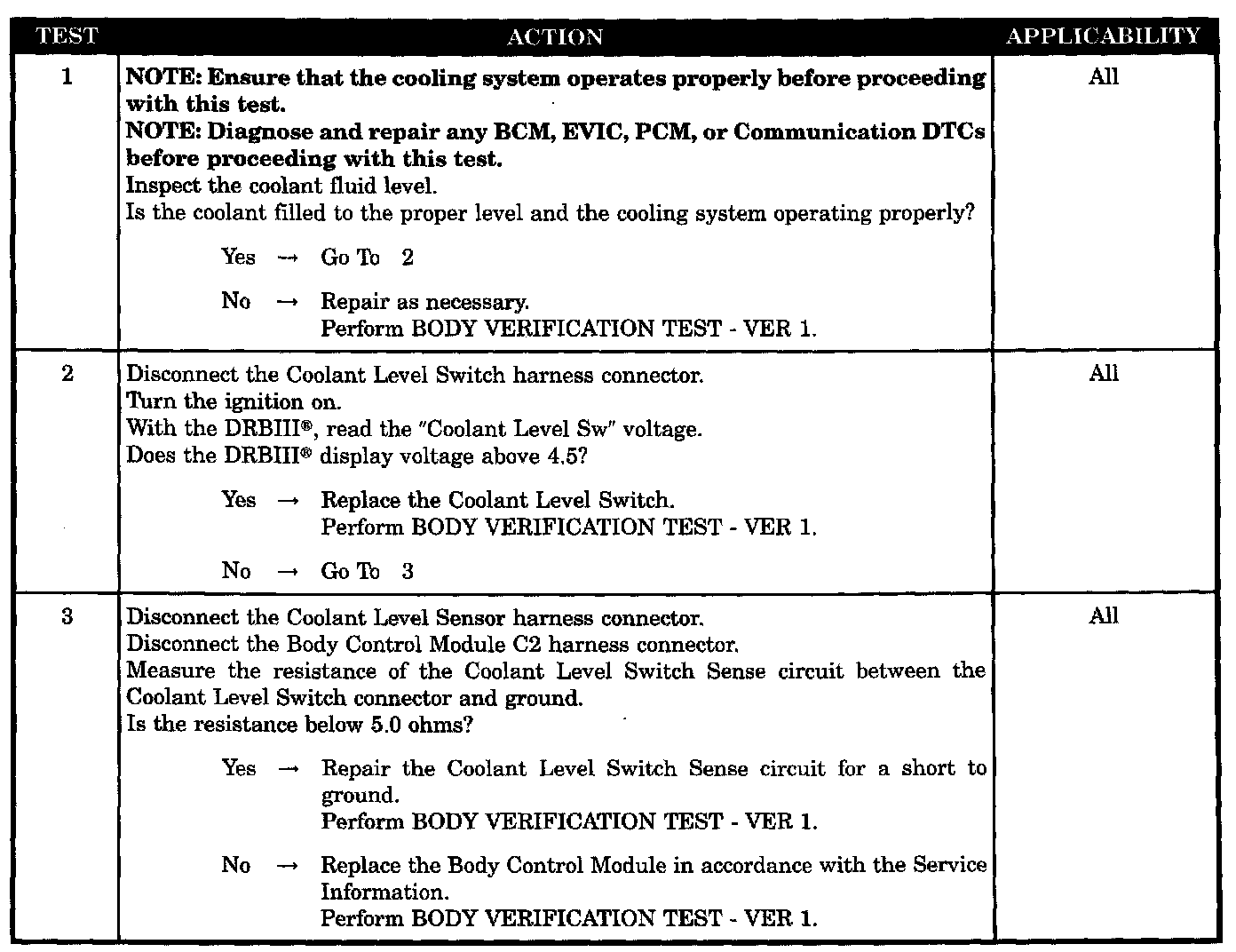

Test 1 - 3:






SYMPTOM
LOW COOLANT WARNING ALWAYS ON - GAS ONLY

POSSIBLE CAUSES
- Coolant level
- Coolant level switch shorted
- Coolant level switch sense circuit short to ground
- Body control module
