Brake Warning Indicator Always On

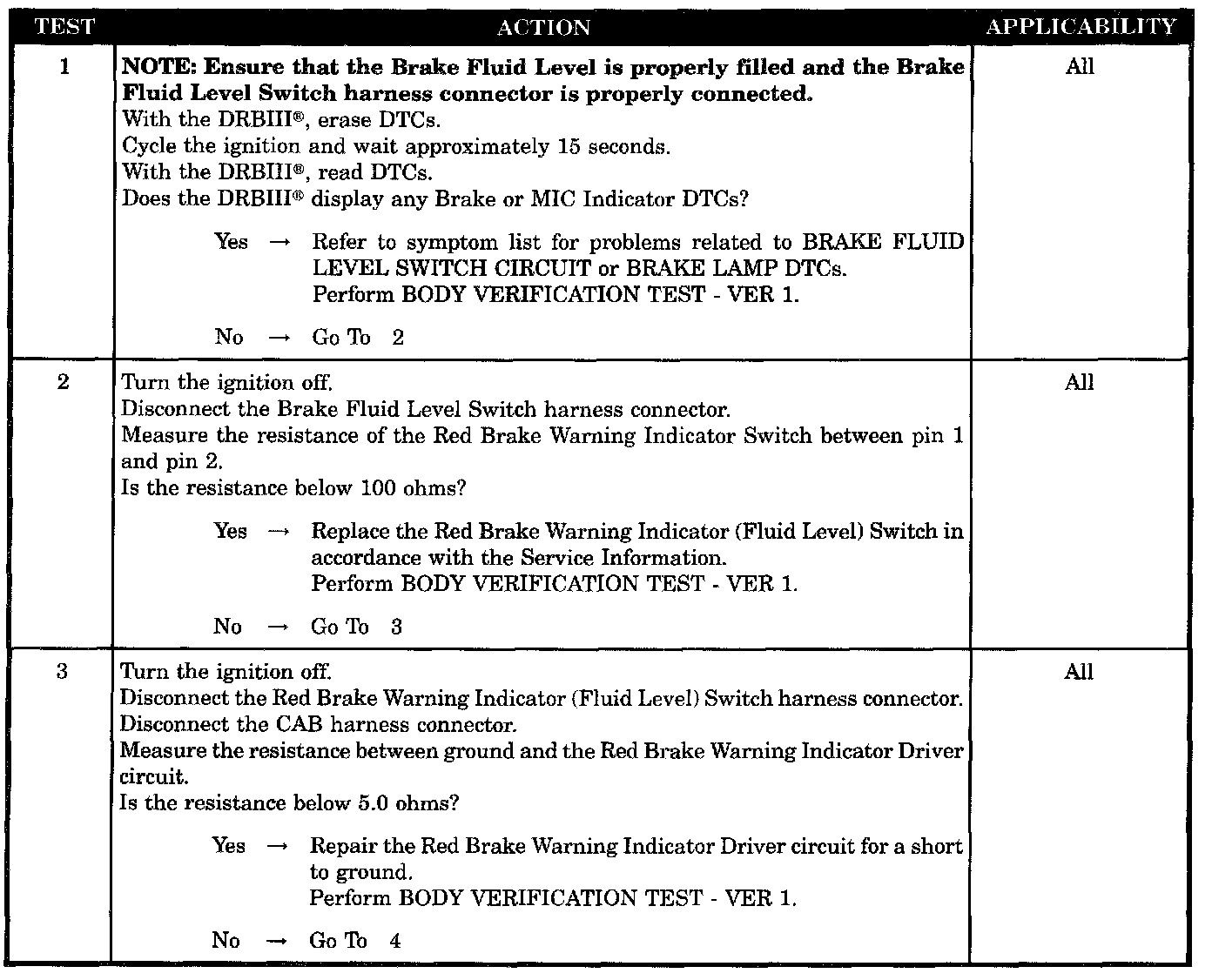

Test 1 - 3:

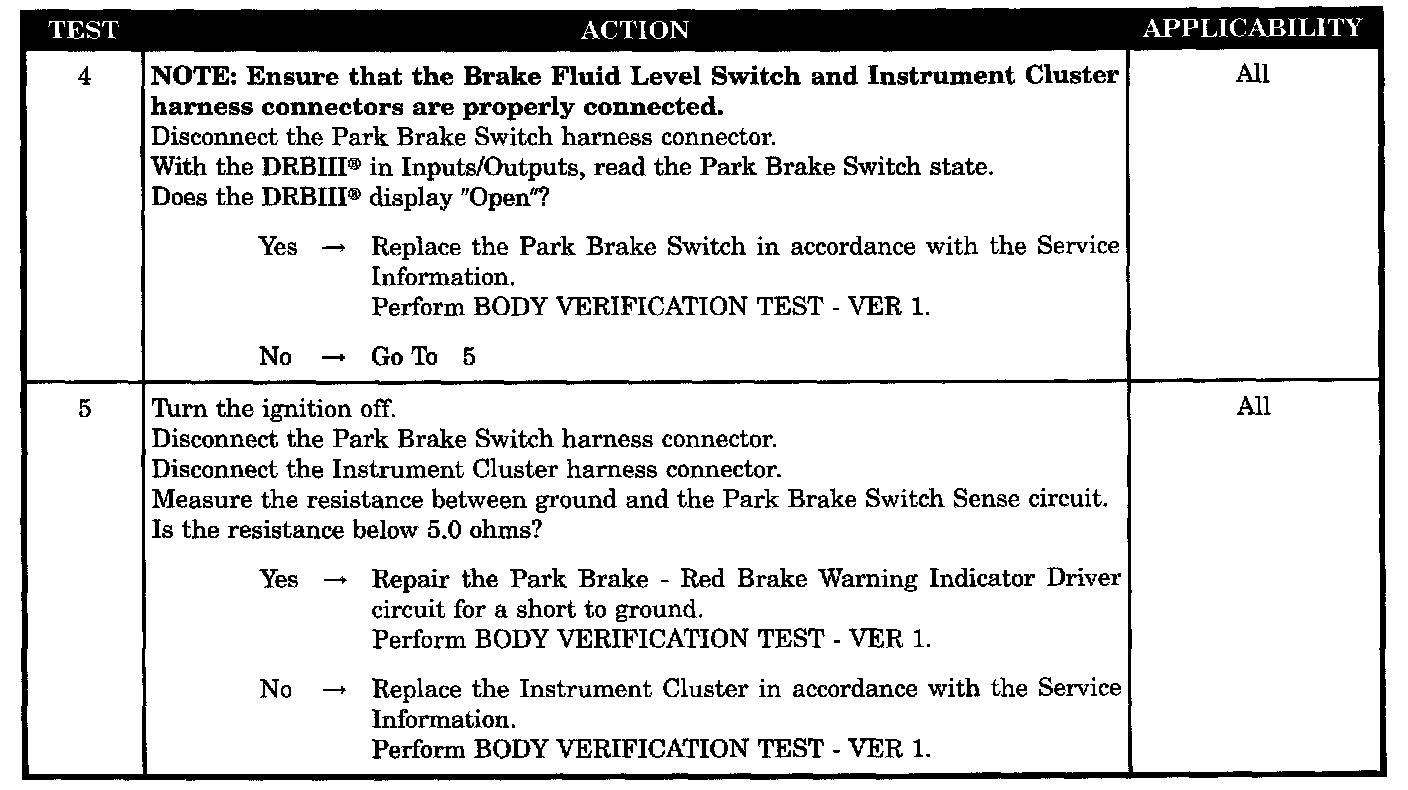

Test 4 - 5:

SYMPTOM
BRAKE WARNING INDICATOR ALWAYS ON

POSSIBLE CAUSES
- DTC present
- Red brake warning indicator switch
- Red brake warning indicator driver circuit short to ground
- Park brake switch
- Park brake - red brake warning indicator driver circuit short to ground
- Instrument cluster
