VF Dimming Failure (AZC) (Active)

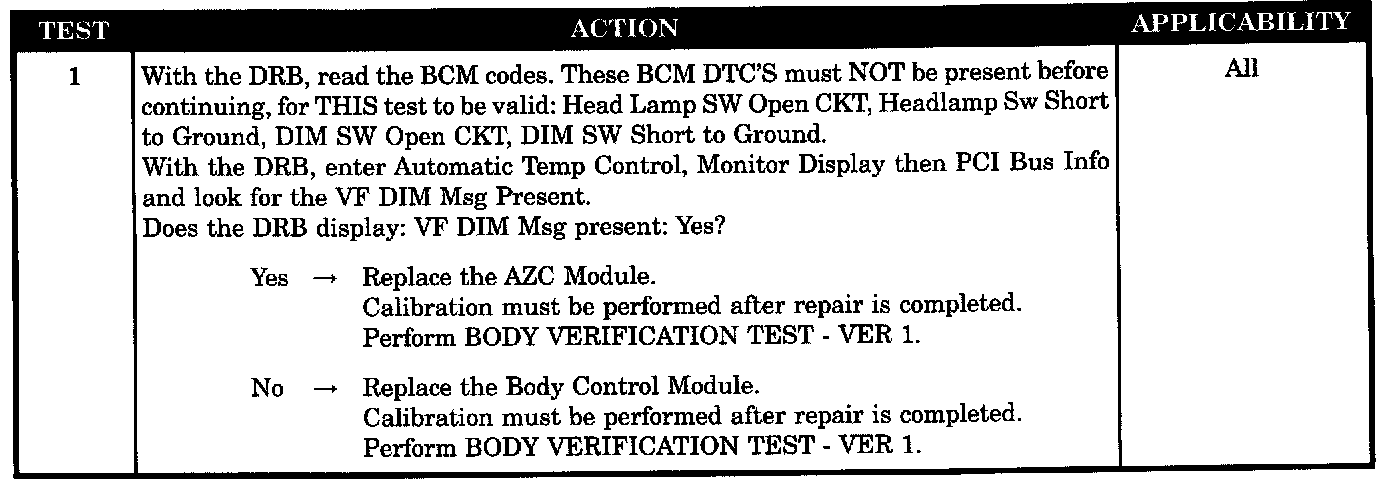

Test 1:

SYMPTOM
VF DIMMING FAILURE (AZC) (ACTIVE)

WHEN MONITORED
Every 8 seconds with the ignition on.

SET CONDITION
This condition is set if the AZC does not receive the VF dimming response message within 8 seconds.

POSSIBLE CAUSES
- AZC - VF dimming failure
- Body control module
