Country Code Failure (AZC) (Stored)

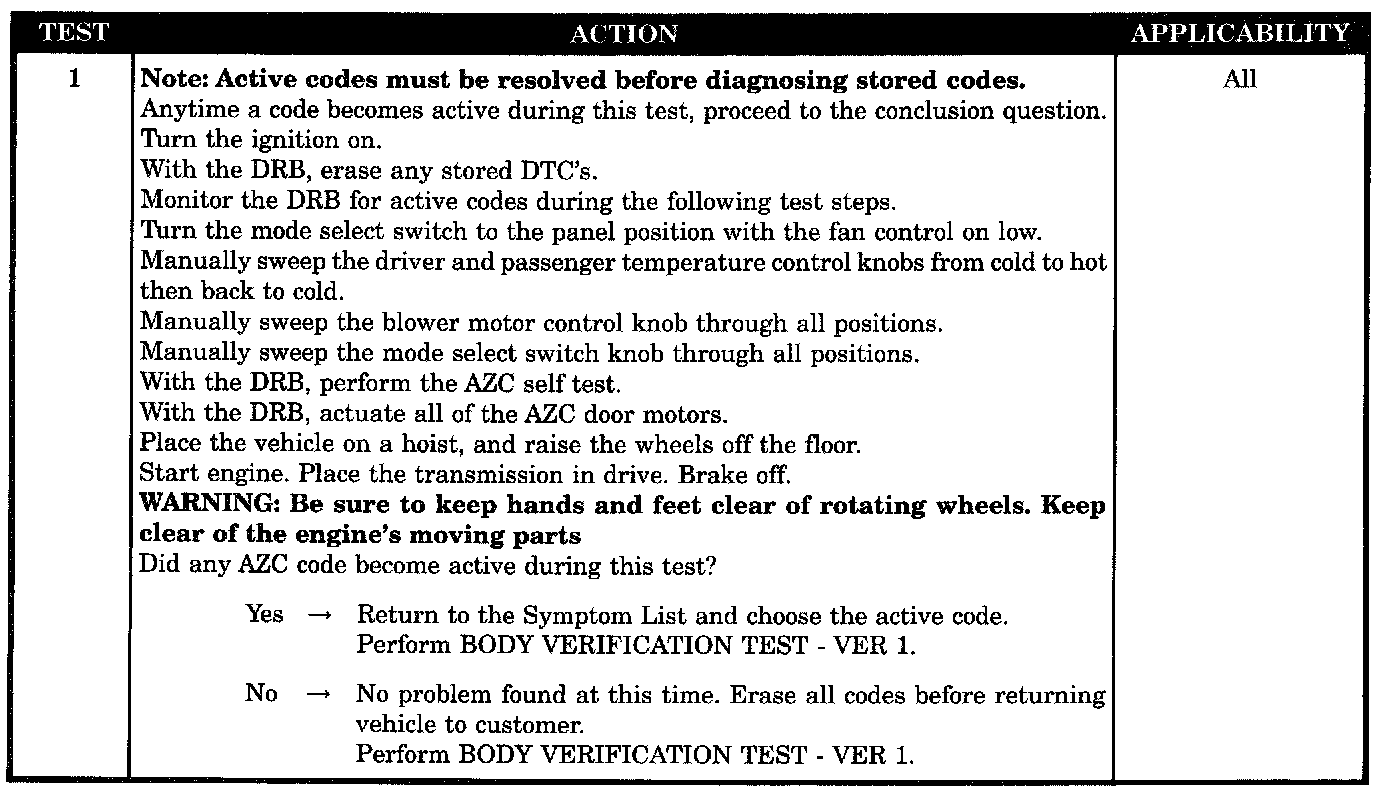

Test 1:

SYMPTOM
COUNTRY CODE FAILURE (AZC) (STORED)

WHEN MONITORED
Every 8 seconds with the ignition on.

SET CONDITION
This condition is set if the AZC does not receive the country code message within 8 seconds.

POSSIBLE CAUSES
- AZC module stored codes present
- Stored codes test complete
