Cal Checksum Failure (AZC) (Stored)

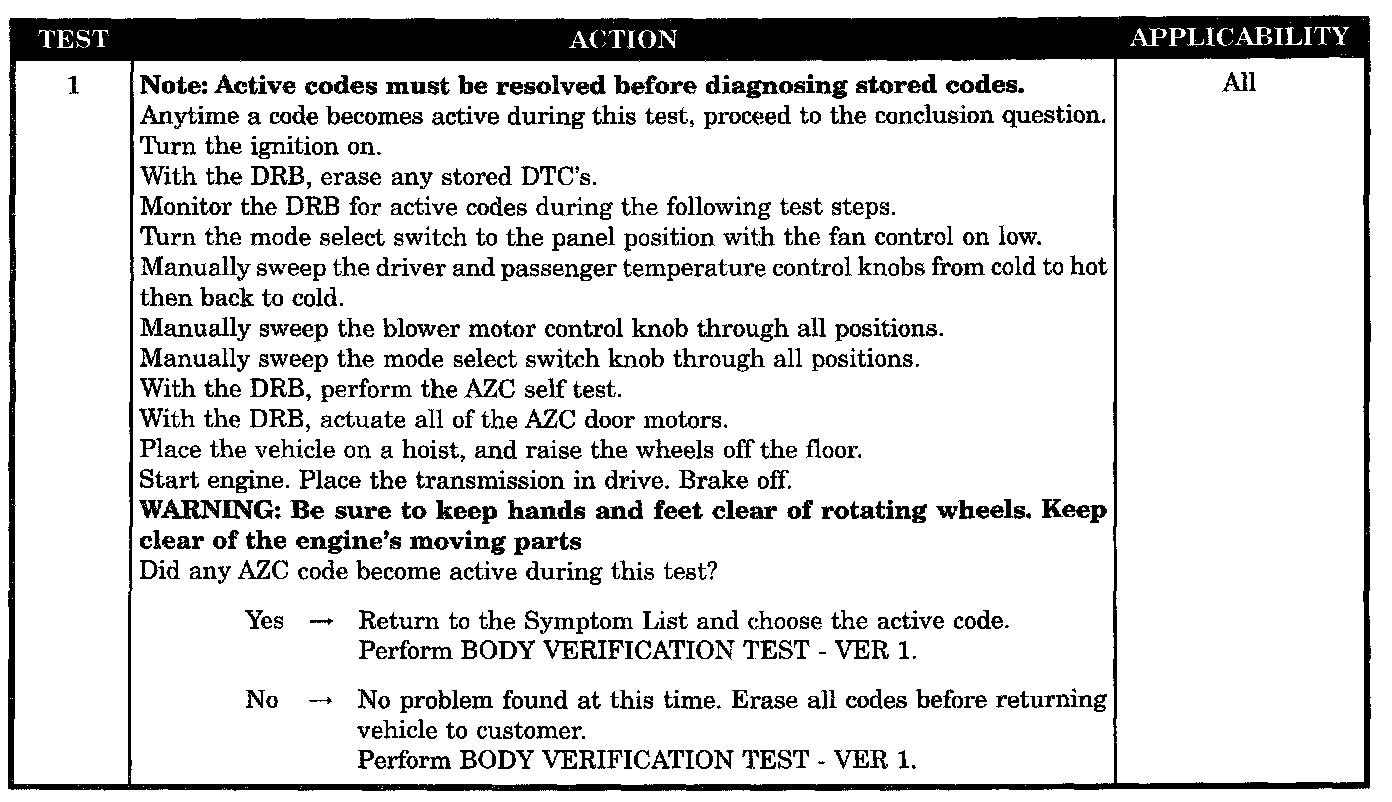

Test 1:

SYMPTOM
CAL CHECKSUM FAILURE (AZC) (STORED)

WHEN MONITORED
Ignition in RUN and IOD fuse installed after a battery disconnect.

SET CONDITION
This condition is set if the calibrated check sum does not match the stored value.

POSSIBLE CAUSES
- AZC module stored codes present
- Stored codes test complete
