Rear Fog Lamps Will Not Turn Off

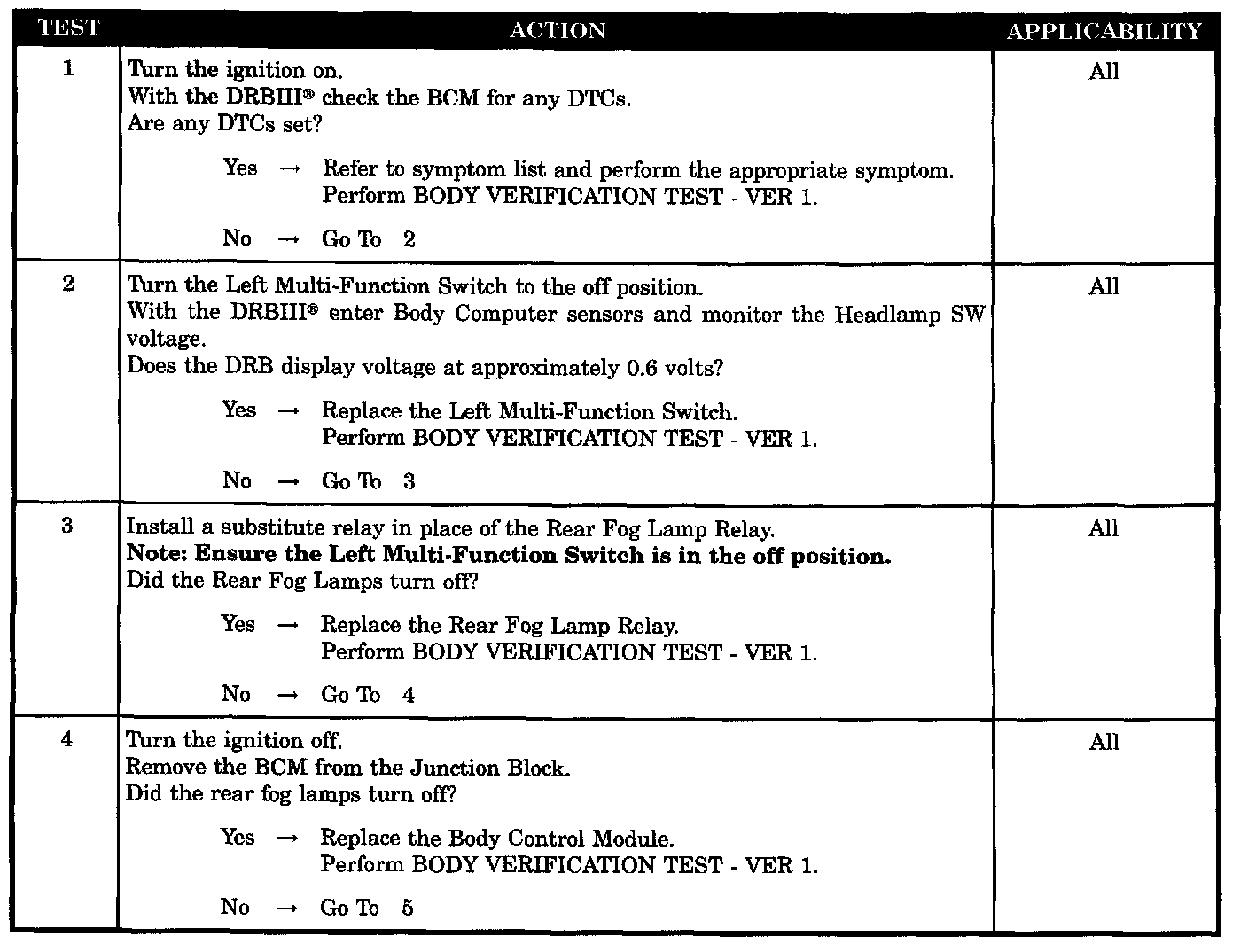

Test 1 - 4:

Test 5:

SYMPTOM
REAR FOG LAMPS WILL NOT TURN OFF

POSSIBLE CAUSES
- Check BCM for DTCs
- Check the left multi-function switch operation
- Rear fog lamp relay
- Body control module
- Junction block rear fog lamp relay output circuit shorted to ground
- Rear fog lamp relay output circuit shorted to voltage
