Park Lamps Will Not Turn On

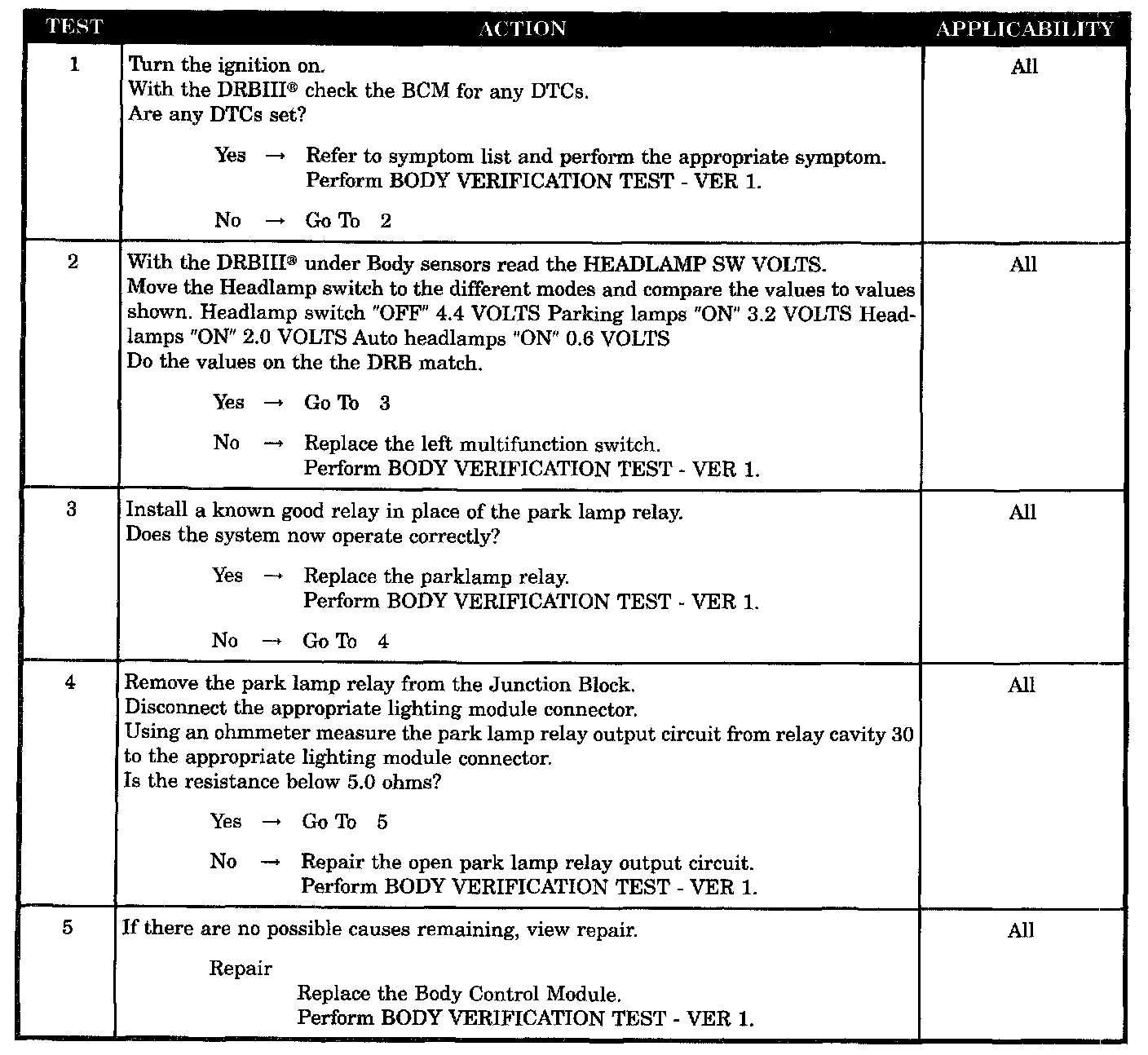

Test 1 - 5:

SYMPTOM
PARK LAMPS WILL NOT TURN ON

POSSIBLE CAUSES
- Check BCM for DTCs
- Headlamp switch function
- Park lamp relay
- Park lamp relay output CKT open
- BCM headlamp MUX inop
