Park Lamps Will Not Turn Off

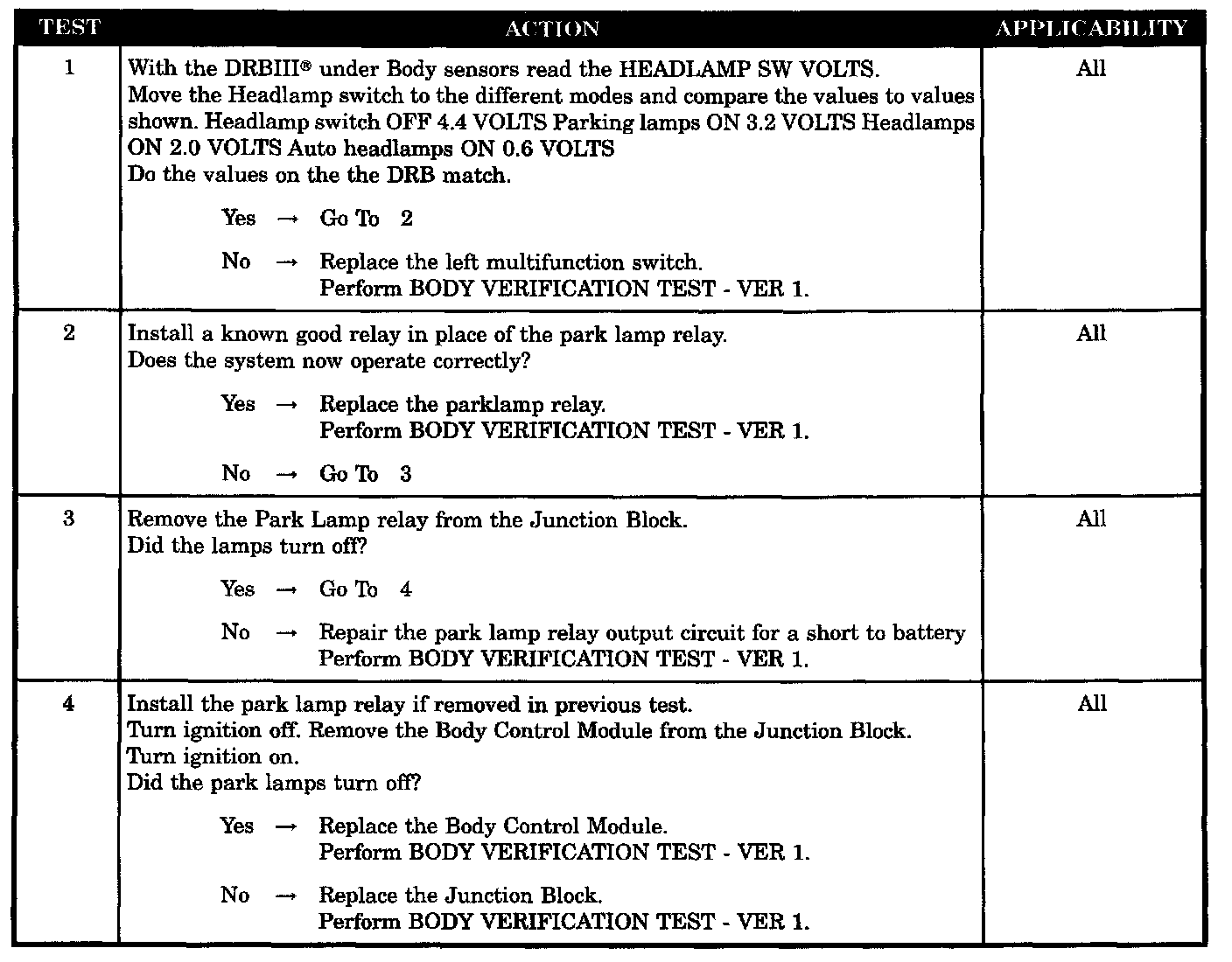

Test 1 - 4:






SYMPTOM
PARK LAMPS WILL NOT TURN OFF

POSSIBLE CAUSES
- Headlamp switch function
- Park lamp relay
- Park lamp output SHT B(+)
- Park lamp relay CTL CKT shorted to ground
- BCM park lamp control CKT
