Park Lamp Relay Circuit Shorted Low/Open

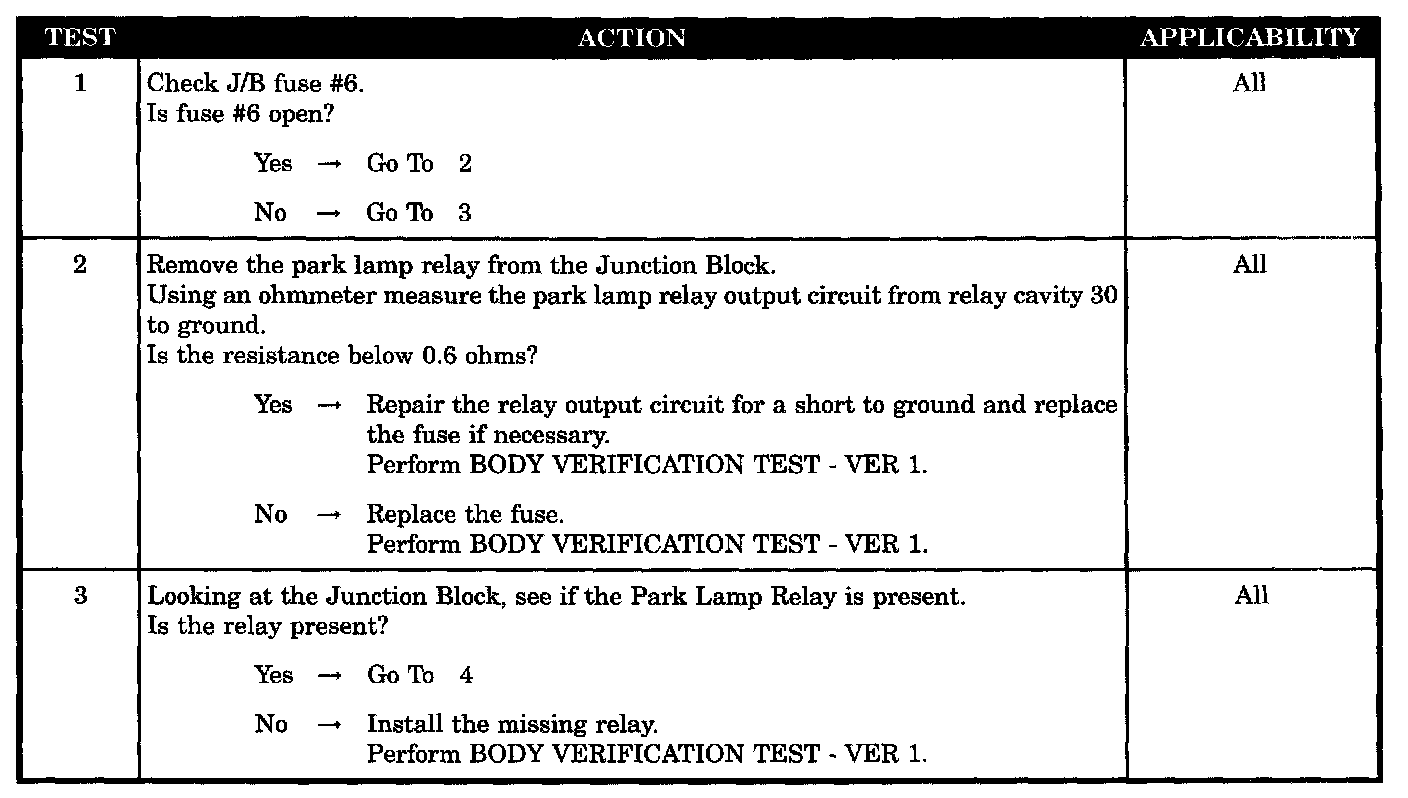

Test 1 - 3:

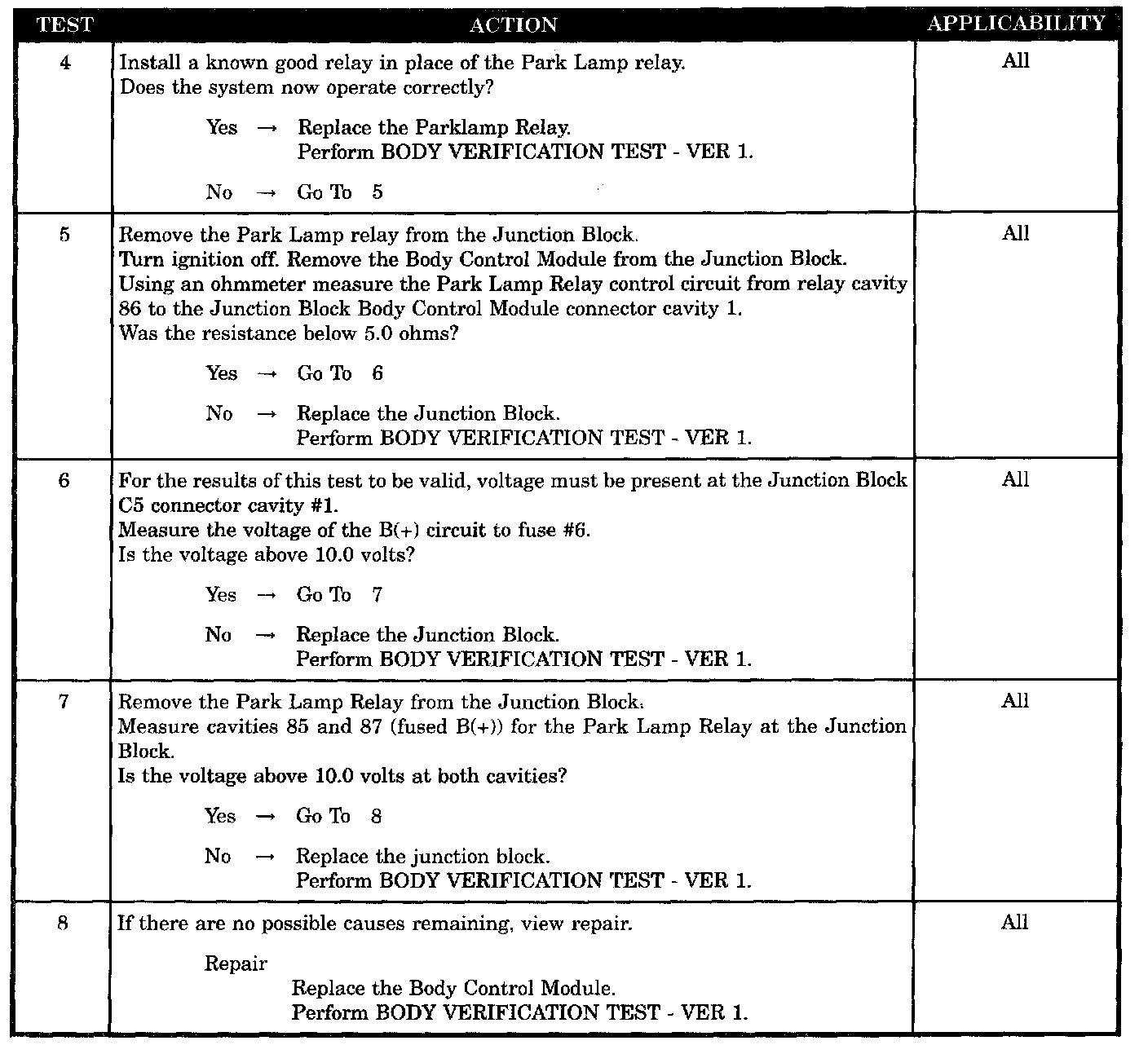

Test 4 - 8:

SYMPTOM
PARK LAMP RELAY CKT SHORTED LO/OPEN

WHEN MONITORED
Ignition in RUN and IOD fuse/connector installed.

SET CONDITION
The DTC is is set if the BCM detects excessive current on the park lamp relay control circuit.

POSSIBLE CAUSES
- Park lamp relay output circuit short
- Park lamp relay missing
- Park lamp relay
- Park lamp relay CTL CKT open
- Open fused B(+) to park relay
- Open B(+)
- BCM parklamp control circuit shorted low/open
- Fuse # 6
