Low Beam Relay Circuit Shorted High

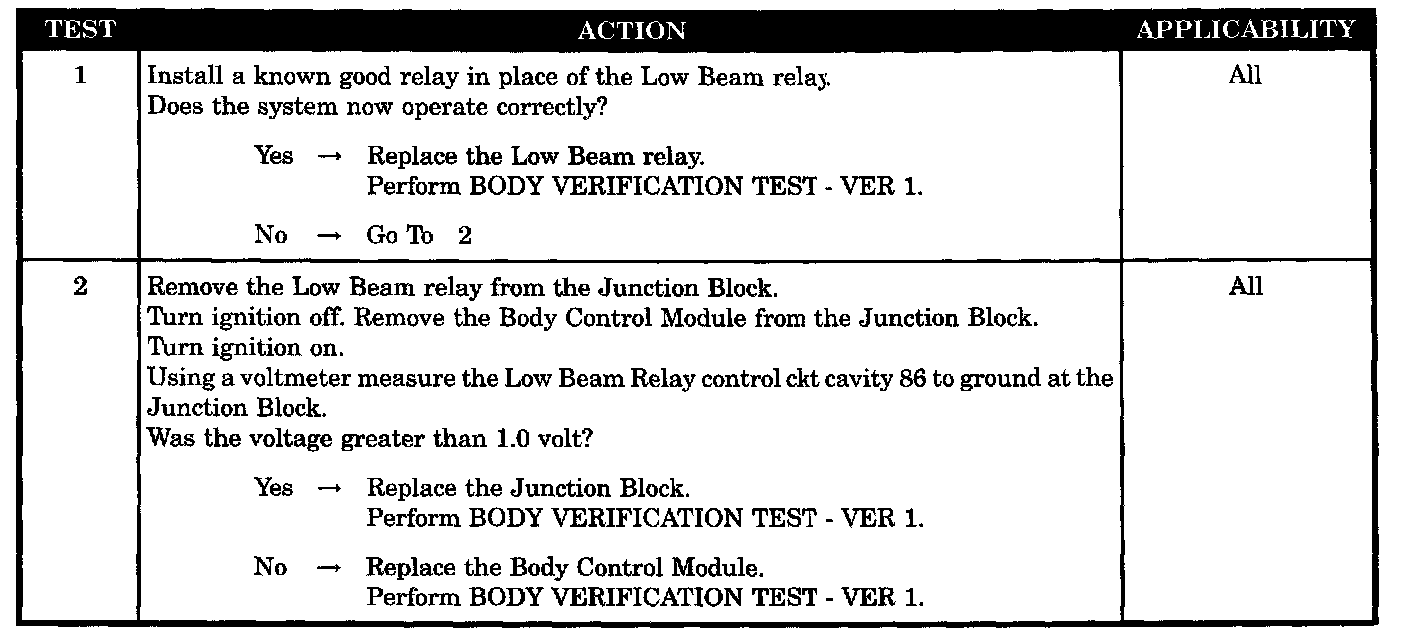

Test 1 - 2:

SYMPTOM
LOW BEAM RELAY CKT SHORTED HI

WHEN MONITORED
Ignition in RUN and IOD fuse/connector installed.

SET CONDITION
This condition is set when the BCM is trying to activate the low beam relay and excessive current is sinked into the BCM.

POSSIBLE CAUSES
- Low beam relay
- Low beam relay control shorted to B(+)
- BCM low beam control short to battery
