Low Beam Headlamps Will Not Turn Off

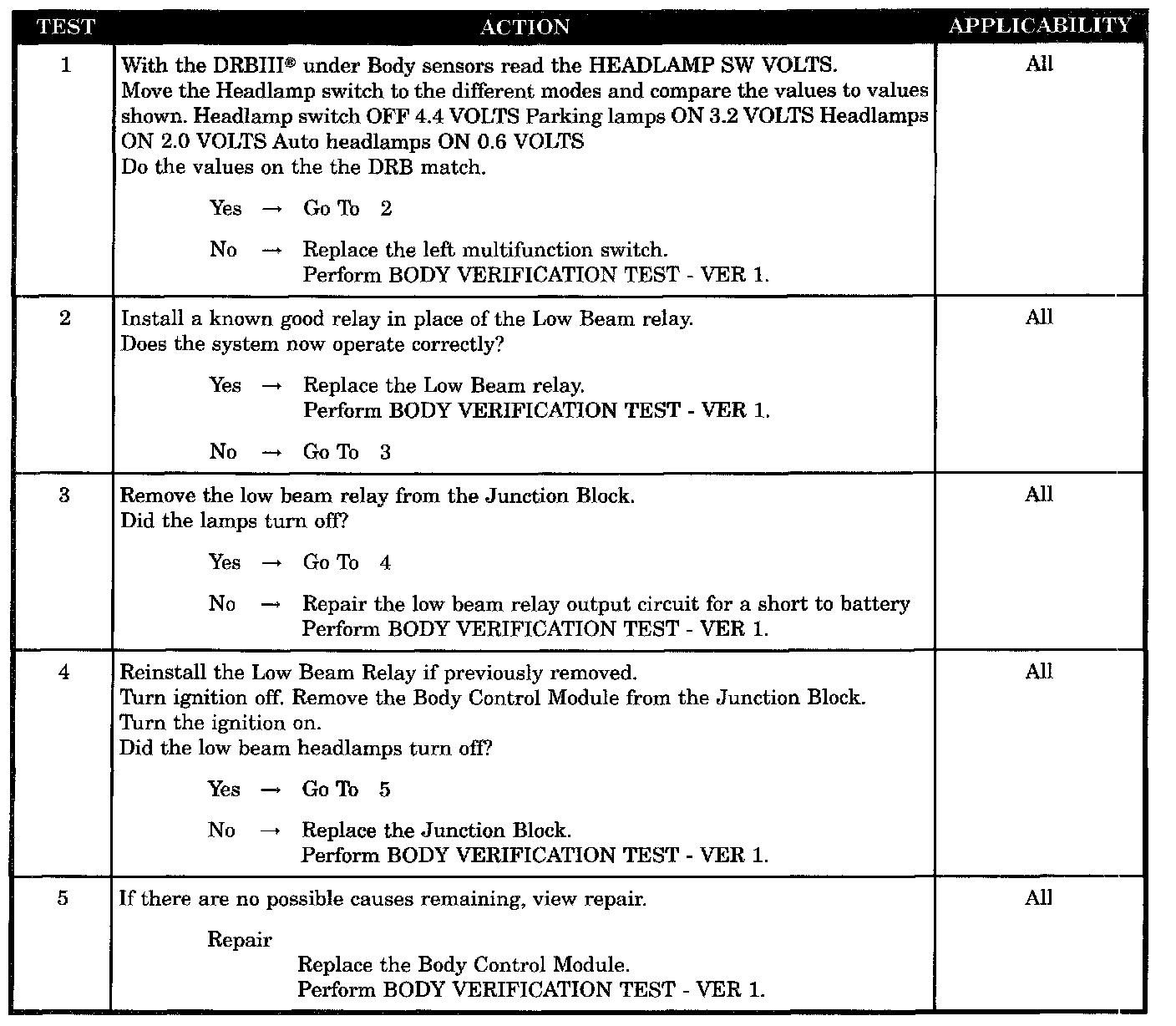

Test 1 - 5:






SYMPTOM
LOW BEAM HEADLAMPS WILL NOT TURN OFF

POSSIBLE CAUSES
- Low beam relay
- Low beam relay output SHT B(+)
- Low beam relay CTL CKT shorted to ground
- Headlamp switch function
- BCM low beam lamps will not turn off
