Hazard Relay Circuit Shorted High

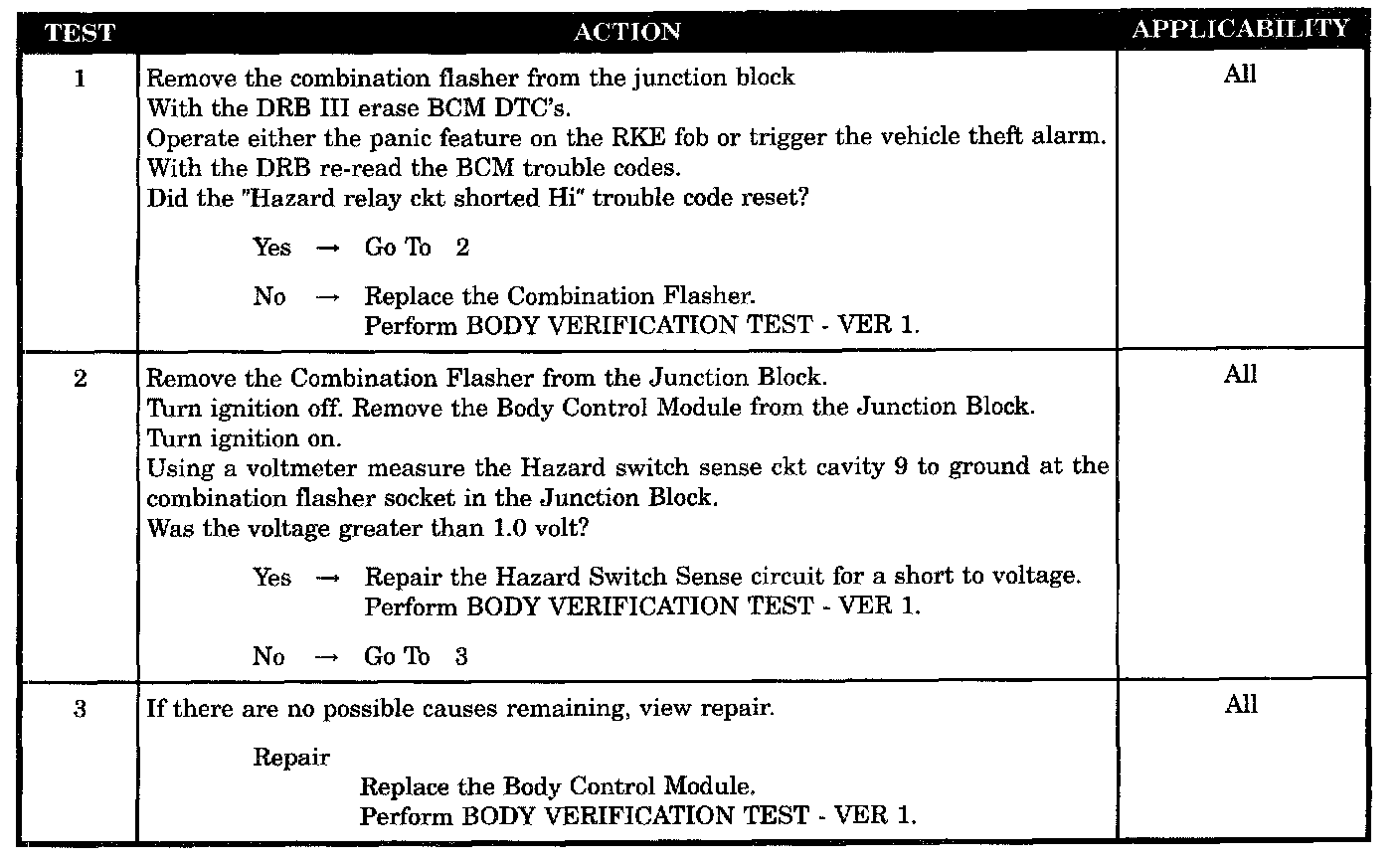

Test 1 - 3:

SYMPTOM
HAZARD RELAY CKT SHORTED HI

WHEN MONITORED
Ignition in RUN and IOD fuse/connector installed.

SET CONDITION
This code is set if the BCM tries to activate the hazard lamps and excessive current is sinked into the BCM.

POSSIBLE CAUSES
- Combo flasher internal short to B(+)
- Hazard switch sense circuit shorted to B(+)
- BCM hazard circuit short to voltage
