Fog Lamps Will Not Turn On

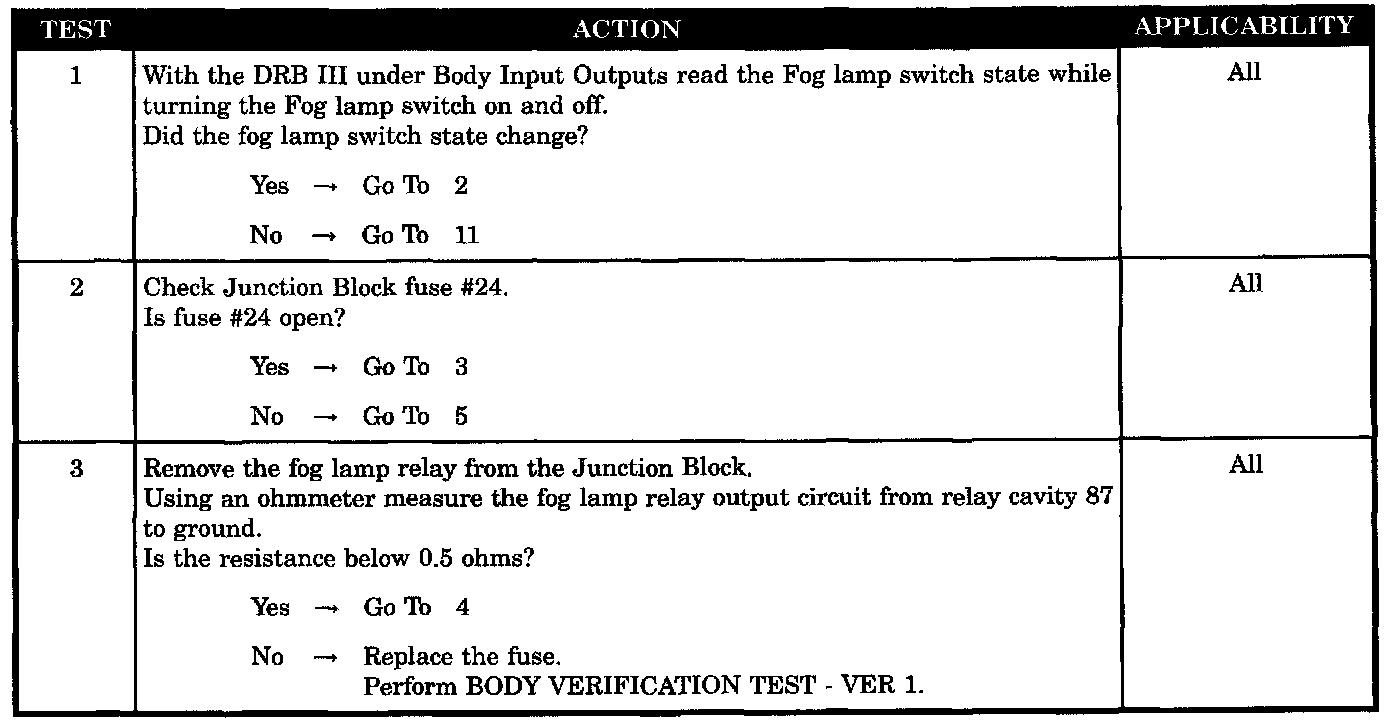

Test 1 - 3:

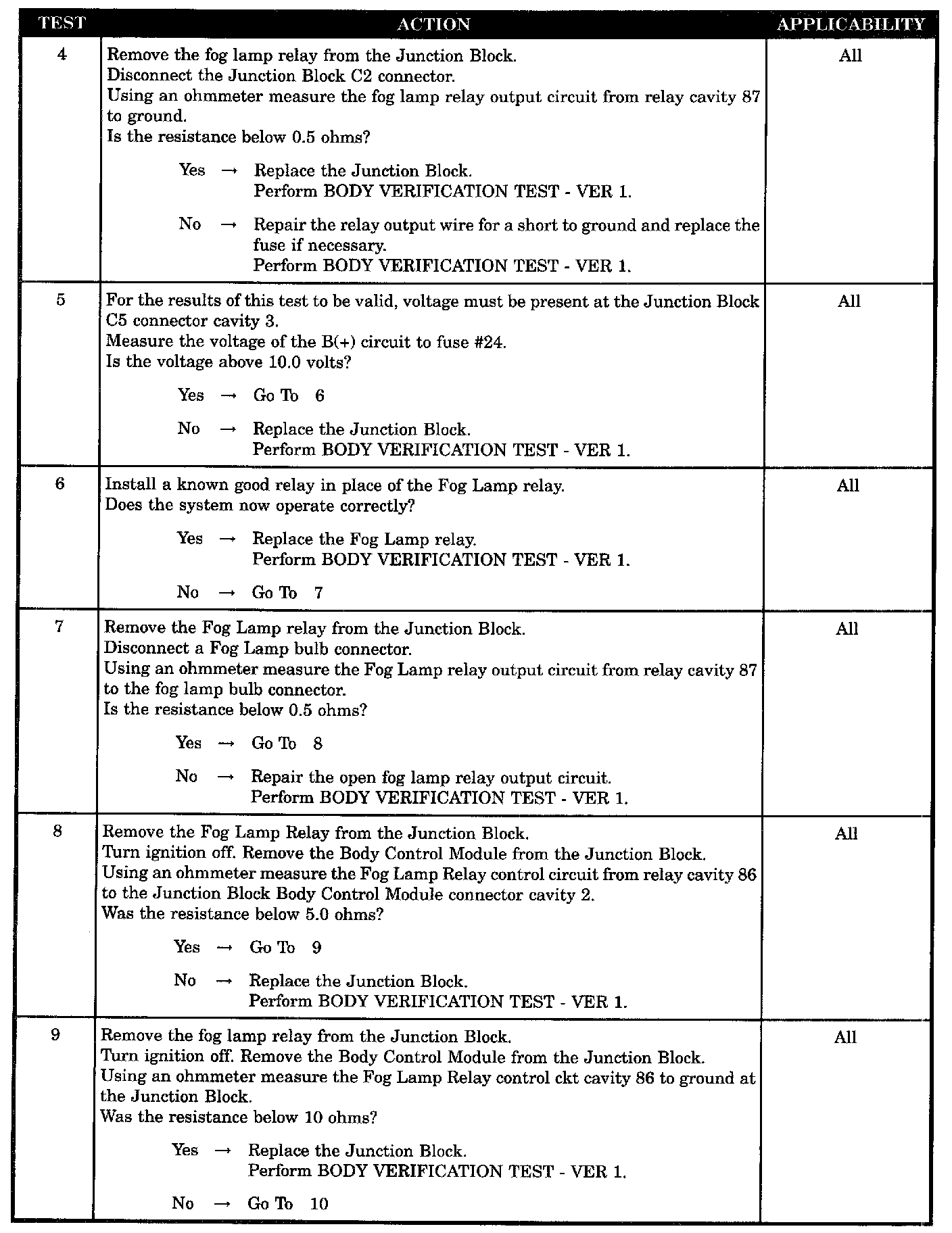

Test 4 - 9:

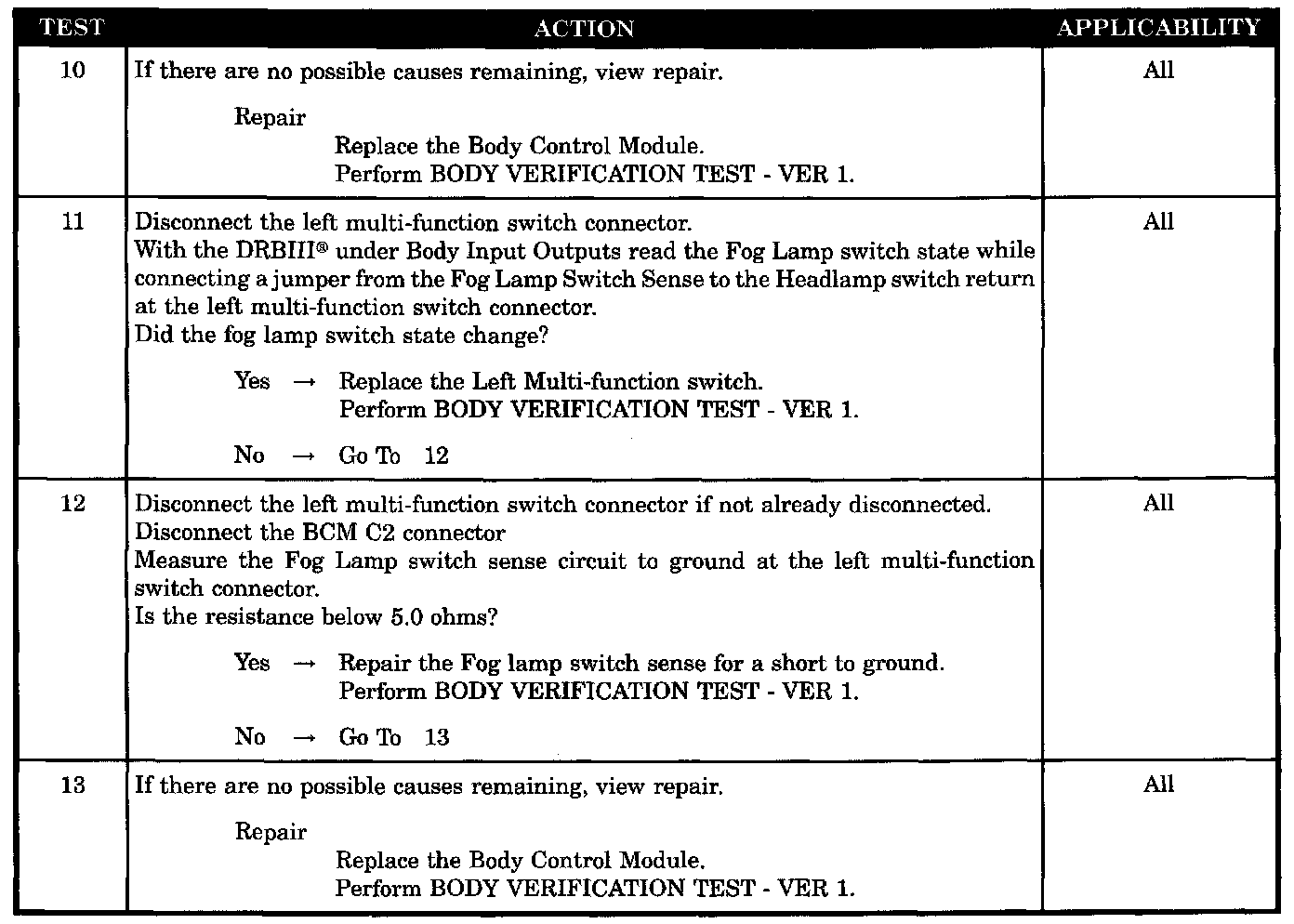

Test 10 - 13:

SYMPTOM
FOG LAMPS WILL NOT TURN ON

POSSIBLE CAUSES
- Junction block fog lamp relay output circuit
- Fog lamp switch sense shorted
- Open B(+)
- Fog lamp relay output CKT open
- Fog lamp relay
- Fog lamp relay CTL CKT open
- Fog lamp relay CTL CKT shorted to ground
- BCM fog lamp relay control
- BCM fog lamp sense shorted
- Fog lamp switch open/shorted
- Fog lamp relay output wire short to ground
- Fuse # 24
