Driver Seat Heat Output Shorted to Ground

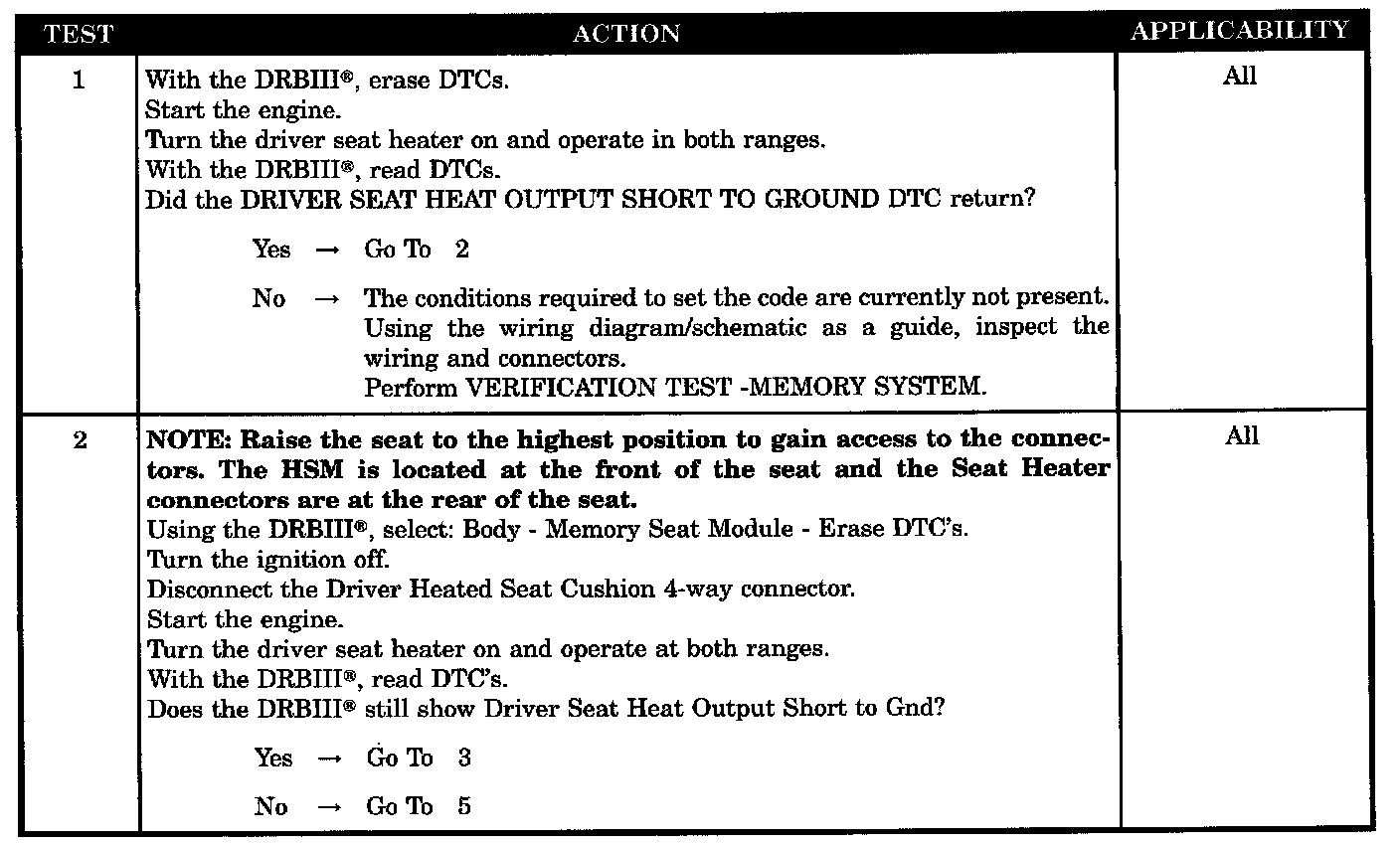

Test 1 - 2:

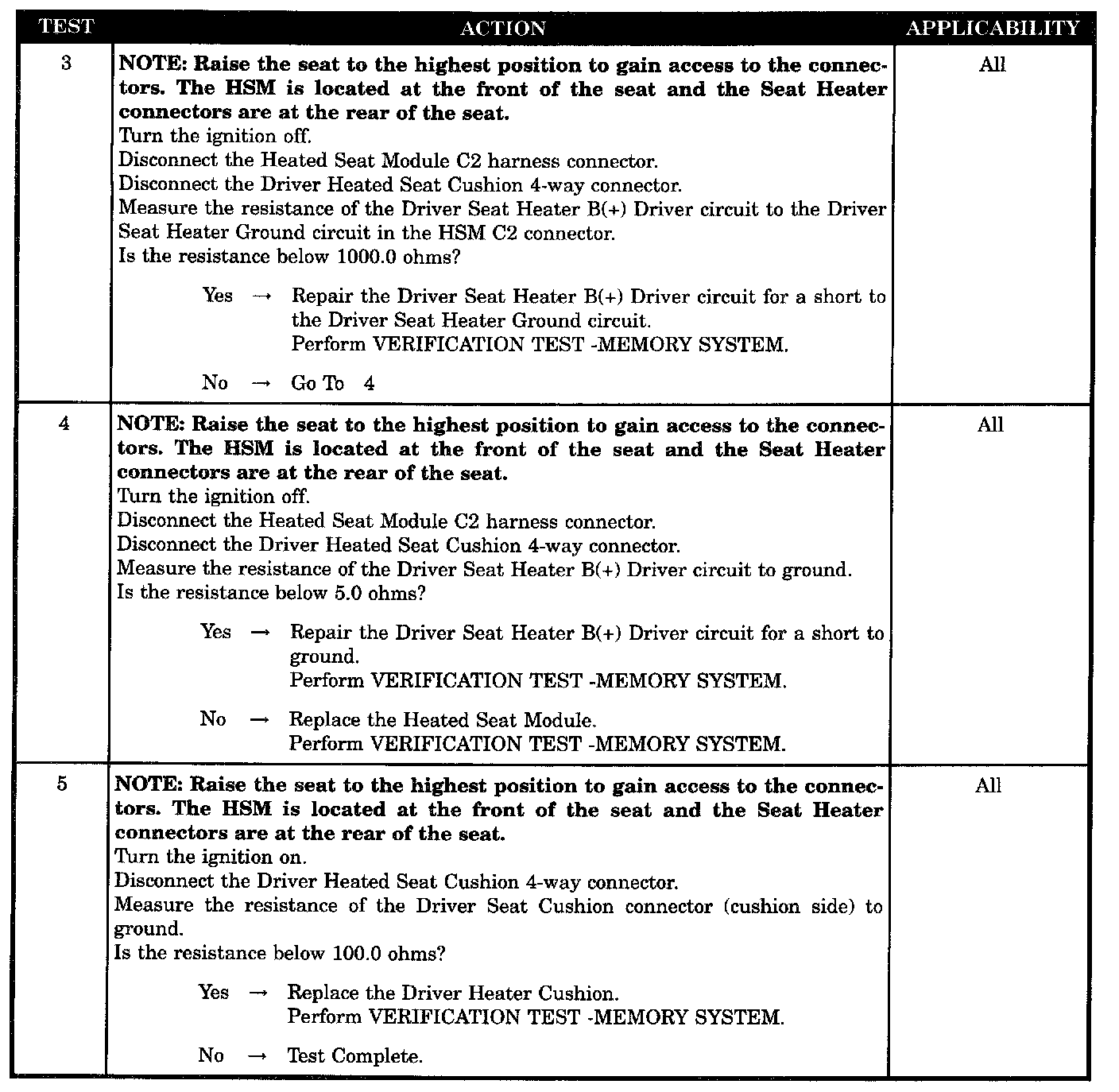

Test 3 - 5:

SYMPTOM
DRIVER SEAT HEAT OUTPUT SHORT TO GROUND

WHEN MONITORED
With the ignition on, during the heated seat operation.

SET CONDITION
This condition is set immediately after the Heated Seat Module detects an output shorted to ground.

POSSIBLE CAUSES
- DTC present
- Driver seat heater B(+) driver CKT shorted to driver seat heater ground
- Driver seat heater B(+) driver CKT shorted to ground
- Driver seat cushion shorted to ground
- Heated seat module
