Driver Seat Heat Output Open/Shorted to Battery

Test 1:

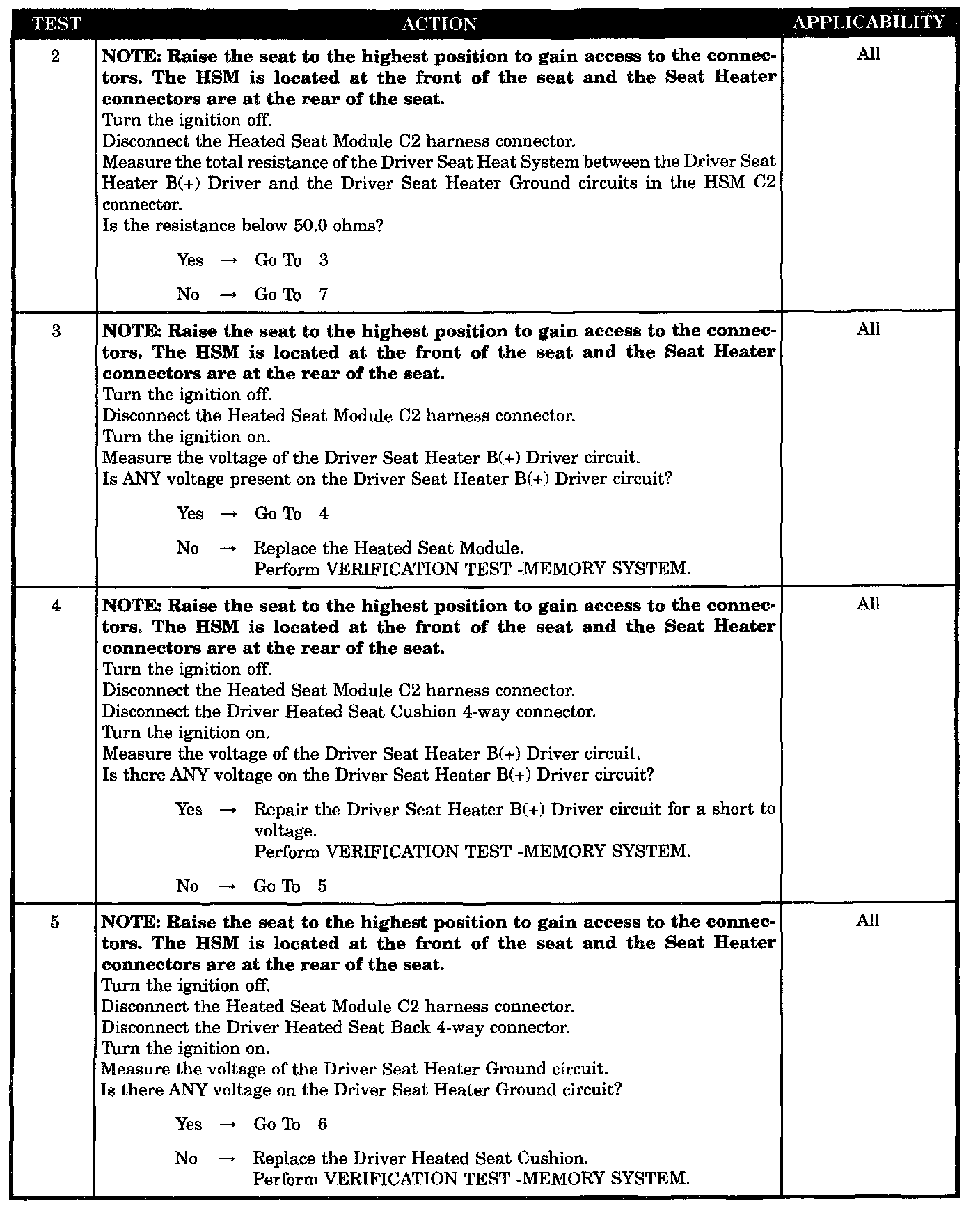

Test 2 - 5:

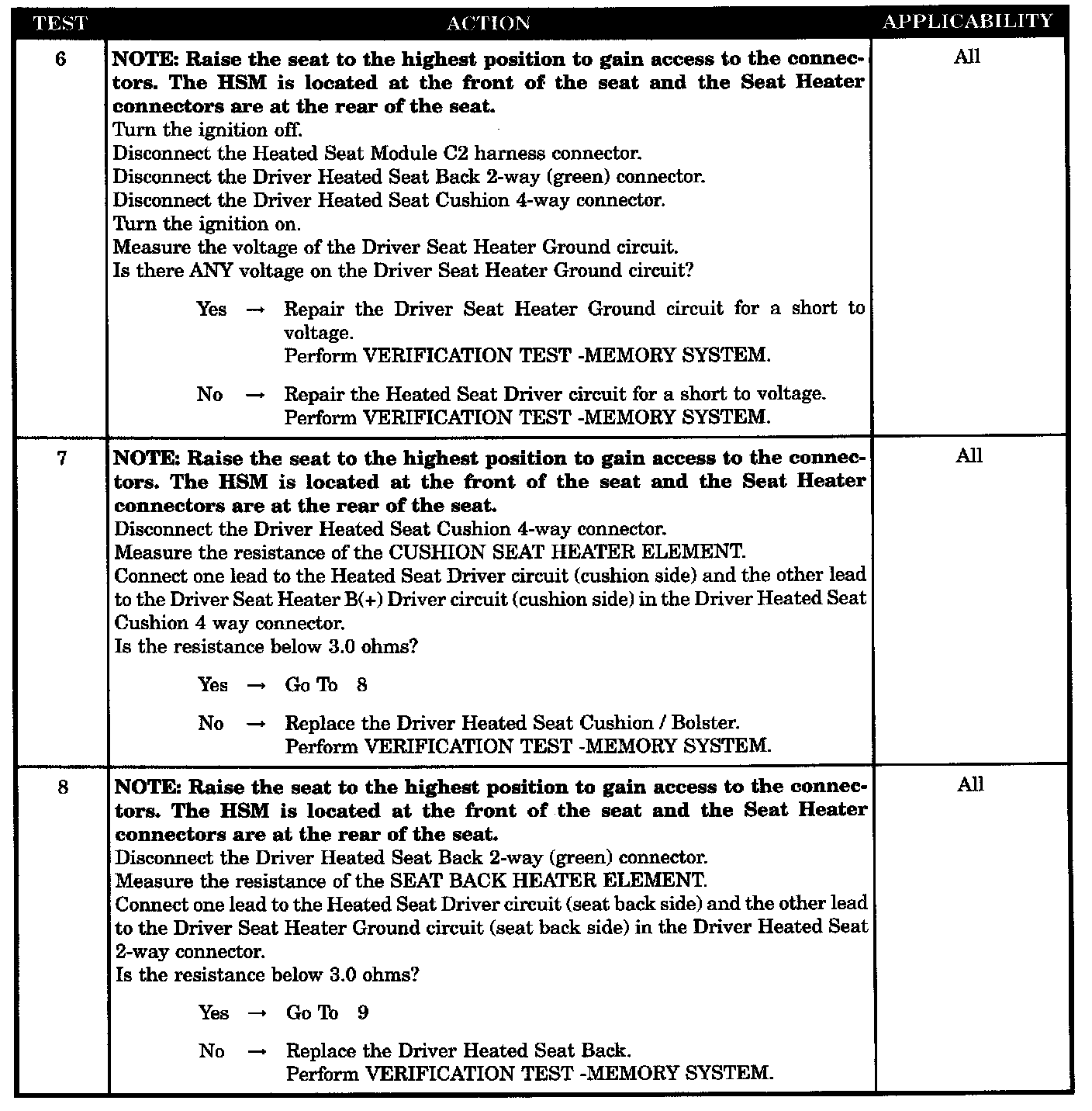

Test 6 - 8:

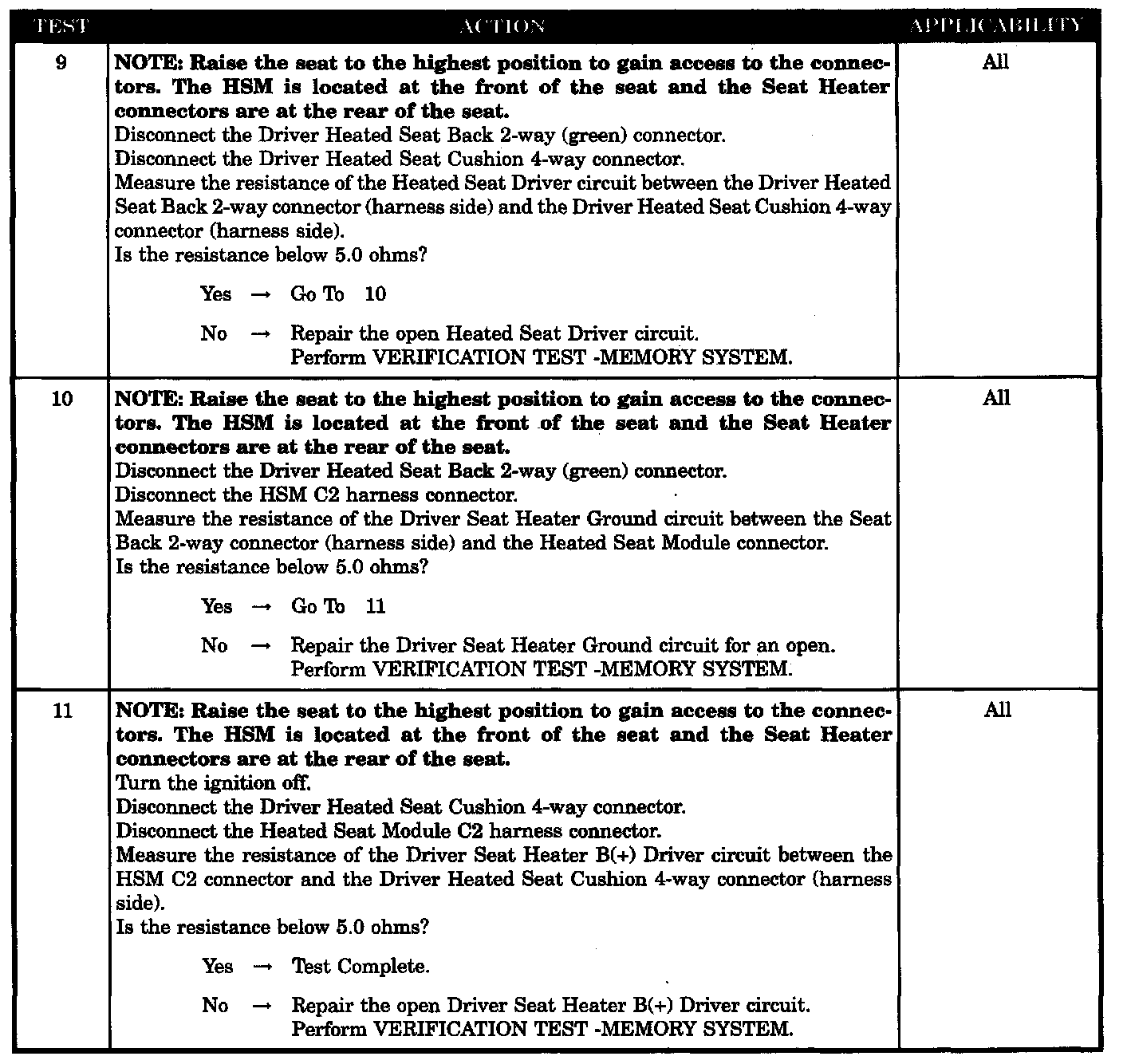

Test 9 - 11:

SYMPTOM
DRIVER SEAT HEAT OUTPUT OPEN/SHT TO BATTERY

WHEN MONITORED
With the ignition on, during the heated seat operation.

SET CONDITION
This condition is set immediately after the Heated Seat Module loses the seat heat element output.

POSSIBLE CAUSES
- DTC present
- Driver seat heater system short to battery
- Driver seat heater B(+) driver CKT shorted to voltage
- Driver heated seat cushion shorted to voltage
- Driver seat heater ground CKT shorted to voltage
- Heated seat driver CKT shorted to voltage
- Driver heated seat cushion open
- Driver seat back heater open
- Heated seat driver CKT open
- Driver seat heater ground CKT open
- Driver seat heater B(+) driver CKT open
